直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0251012M2B-3T3FAN 25X10MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 24.0dB(A) | 720 mW | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0251012L2B-3T3FAN 25X10MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 20.0dB(A) | 600 mW | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0351012U2B-BT4FAN 35X10MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 4.4 CFM (0.123m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 23.0dB(A) | 360 mW | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0351012V2B-BT4FAN 35X10MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 5.5 CFM (0.154m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 25.0dB(A) | 480 mW | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
G4028H12B-RSFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
G4028 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 16.0 CFM (0.448m³/min) | 0.570 in H2O (142.0 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Thermal Overload Protector (TOP) | 28.00mm | 41.0dB(A) | - | CE, cUL, TUV, UL | 10000 RPM | - | 2 Wire Leads | - |
|
|
GB0535ADV3-8FAN BLOWER 34.8X7.3MM 5VDC WIRE |
0 | - |
|
数据表 |
GB | - | Obsolete | 5VDC | Square - 34.8mm L x 34.8mm H | 0.812 CFM (0.023m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | 0.026 lb (11.79 g) | Blower | - | 7.30mm | 19.5dB(A) | 250 mW | CE, CUR, TUV, UL | 5000 RPM | 14 ~ 194°F (-10 ~ 90°C) | 2 Wire Leads | - |
|
CBM-979433B-230-507-22FAN BLOWER 97.68X32.7MM 24VDC |
0 | - |
|
数据表 |
CBM-97B-2 | Box | Active | 24VDC | Rectangular/Rounded - 97.68mm L x 94.18mm H | 20.5 CFM (0.574m³/min) | 0.660 in H2O (164.4 Pa) | Ball | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.70mm | 50.7dB(A) | 8.4 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
E9225E24B1-FSRFAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 39.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 3 Wire Leads | - |
|
|
E9225E24B1-FSR-TTLFAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
E9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 56.0 CFM (1.57m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.245 lb (111.13 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 39.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 3 Wire Leads | - |
|
9WL0424P3G001FAN AXIAL 40X28MM 24VDC WIRE |
52 | - |
|
数据表 |
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 19.7 CFM (0.552m³/min) | 1.245 in H2O (310.0 Pa) | Ball | 0.154 lb (69.85 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 47.0dB(A) | 4.8 W | CSA, TUV, UL | 15500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
6424FAN AXIAL 172X50.8MM 24VDC TERM |
601 | - |
|
数据表 |
6400 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 241.0 CFM (6.75m³/min) | - | Ball | 1.7 lbs (771.1 g) | Tubeaxial | - | 50.80mm | 57.0dB(A) | 18 W | - | 3400 RPM | -4 ~ 162°F (-20 ~ 72°C) | 2 Terminals | - |
|
GFB0912ES-EFAN AXIAL DUAL 92X56MM 12VDC |
82 | - |
|
数据表 |
GFB | Box | Active | 12VDC | Square - 92mm L x 92mm H | 165.3 CFM (4.63m³/min) | 4.670 in H2O (1163.2 Pa) | Ball | - | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.00mm | 78.5dB(A) | 47.4 W | CE, cURus, TUV | 11200 Front, 11400 Rear | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads per Fan | - |
|

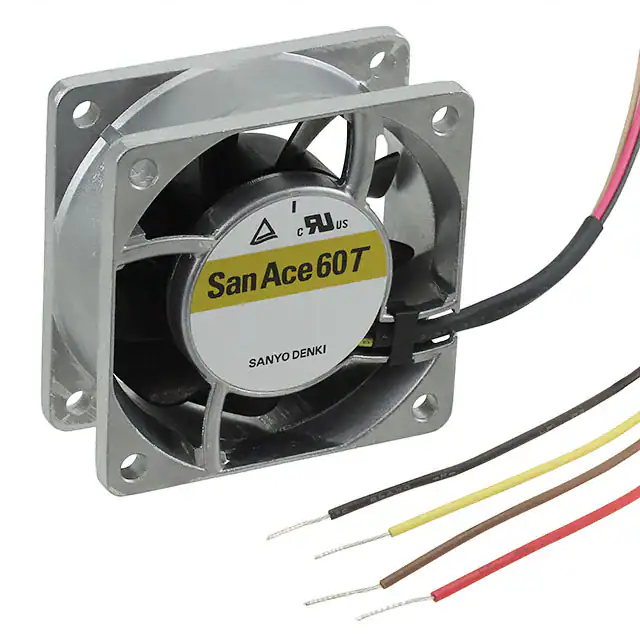

9GT0624P4G001FAN AXIAL 60X25MM 24VDC WIRE |
124 | - |
|
数据表 |
San Ace 60T | Box | Active | 24VDC | Square - 60mm L x 60mm H | 44.5 CFM (1.25m³/min) | 0.976 in H2O (243.0 Pa) | Ball | 0.22 lb (99.79 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 52.0dB(A) | 6.72 W | CSA, TUV, UL | 10000 RPM | -40 ~ 185°F (-40 ~ 85°C) | 4 Wire Leads | - |
|
|
9GT0612P4G001FAN AXIAL 60X25MM 12VDC WIRE |
40 | - |
|
数据表 |
San Ace 60T | Box | Active | 12VDC | Square - 60mm L x 60mm H | 44.5 CFM (1.25m³/min) | 0.976 in H2O (243.0 Pa) | Ball | 0.22 lb (99.79 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.00mm | 52.0dB(A) | 6.72 W | CSA, TUV, UL | 10000 RPM | -40 ~ 185°F (-40 ~ 85°C) | 4 Wire Leads | - |
|
4314/2UFAN AXIAL 119X32MM 24VDC WIRE |
104 | - |
|
数据表 |
4300U | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 0.573 lb (259.91 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 45.0dB(A) | 5 W | UL | 2800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
19039671AFAN AXIAL 171.4X50.8MM JQ24K7 |
1,365 | - |
|
数据表 |
Major | Box | Active | 24VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 283.0 CFM (7.92m³/min) | - | Ball | 0.02 lb (9.07 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 50.80mm | 58.3dB(A) | 39 W | UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9WL0412P3J001FAN AXIAL 40X28MM 12VDC WIRE |
3,481 | - |
|
数据表 |
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 22.2 CFM (0.622m³/min) | 1.610 in H2O (401.0 Pa) | Ball | 0.154 lb (69.85 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 51.0dB(A) | 6.24 W | CSA, TUV, UL | 17500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WL0424P3J001FAN AXIAL 40X28MM 24VDC WIRE |
574 | - |
|
数据表 |
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 22.2 CFM (0.622m³/min) | 1.610 in H2O (401.0 Pa) | Ball | 0.154 lb (69.85 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 51.0dB(A) | 6.24 W | CSA, TUV, UL | 17500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9GA1248P4G001FAN AXIAL 120X25.4MM 48VDC WIRE |
59 | - |
|
数据表 |
San Ace 120 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | 0.617 lb (280.00 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.40mm | 57.0dB(A) | 11.52 W | cURus, TUV | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
19031075AFAN AXIAL 127X38.1MM 24V GL24B4 |
1,647 | - |
|
数据表 |
Galaxy | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.10mm | 53.6dB(A) | 15 W | CE, UL | 3250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
