直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV1224P1H01FAN AXIAL 119X38MM 24VDC WIRE |
43 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 182.3 CFM (5.10m³/min) | 0.950 in H2O (237.0 Pa) | Ball | 0.794 lb (360.15 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 58.0dB(A) | 19.2 W | CSA, TUV, UL | 5200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

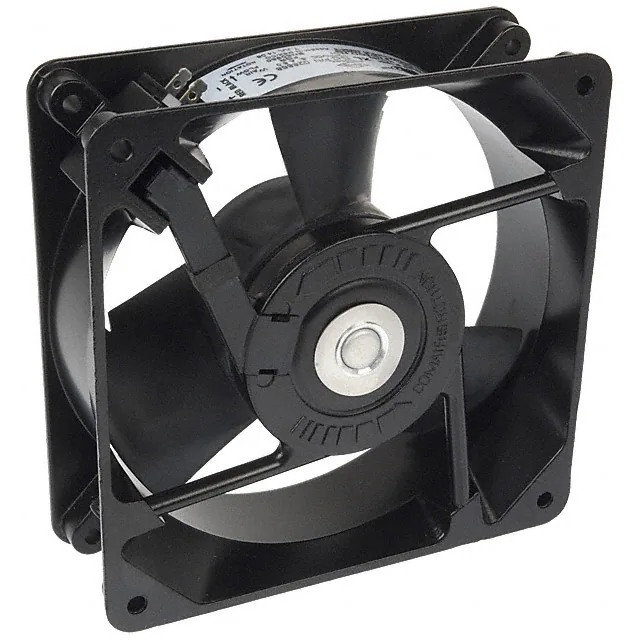

19028869AFAN AXIAL 119.1X39.1MM MD24B2 |
470 | - |
|
数据表 |
Muffin XL | Bulk | Active | 24VDC | Square - 119.13mm L x 119.13mm H | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 39.12mm | 50.0dB(A) | 6 W | CE, CSA, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
4314UFAN AXIAL 119X32MM 24VDC WIRE |
131 | - |
|
数据表 |
4300U | Box | Active | 24VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 0.5 lb (226.8 g) | Tubeaxial | - | 32.00mm | 45.0dB(A) | 5 W | CE, CSA, UL, VDE | 2800 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
3414NMU-603FAN AXIAL 92X25.4MM 24VDC WIRE |
134 | - |
|
数据表 |
3400NU | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 42.4 CFM (1.19m³/min) | - | Ball | 0.22 lb (99.79 g) | Tubeaxial | - | 25.40mm | 28.0dB(A) | 1.4 W | UL | 2300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
632/2HPUFAN AXIAL 60X25.4MM 12VDC WIRE |
178 | - |
|
数据表 |
630U | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.9 CFM (0.725m³/min) | - | Ball | 0.154 lb (69.85 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.40mm | 35.0dB(A) | 1.5 W | UL | 6300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
4184NXFAN AXIAL 119X38MM 24VDC TERM |
335 | - |
|
数据表 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 105.9 CFM (2.97m³/min) | - | Ball | 0.86 lb (390.09 g) | Tubeaxial | - | 38.00mm | 49.0dB(A) | 4.5 W | CSA, UL, VDE | 3200 RPM | -22 ~ 167°F (-30 ~ 75°C) | 2 Terminals | - |
|

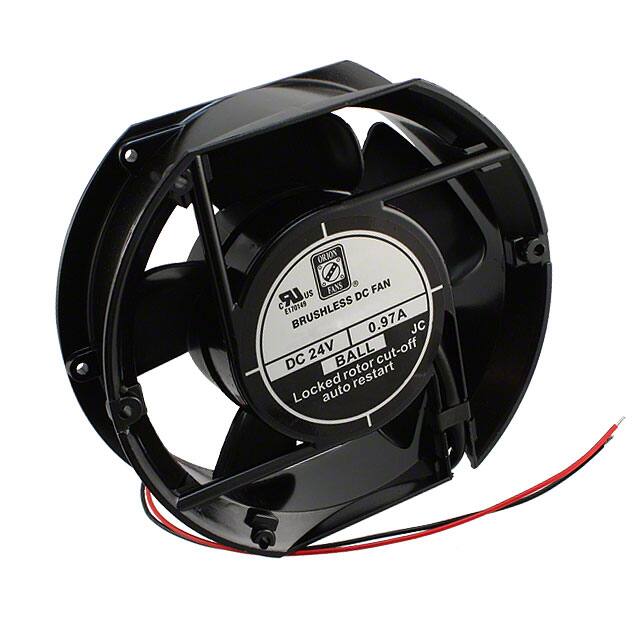

OD172SAP-24HBFAN AXIAL 172X50.8MM 24VDC WIRE |
482 | - |
|
数据表 |
OD172S | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 50.80mm | 52.0dB | - | cURus, TUV | 3300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|

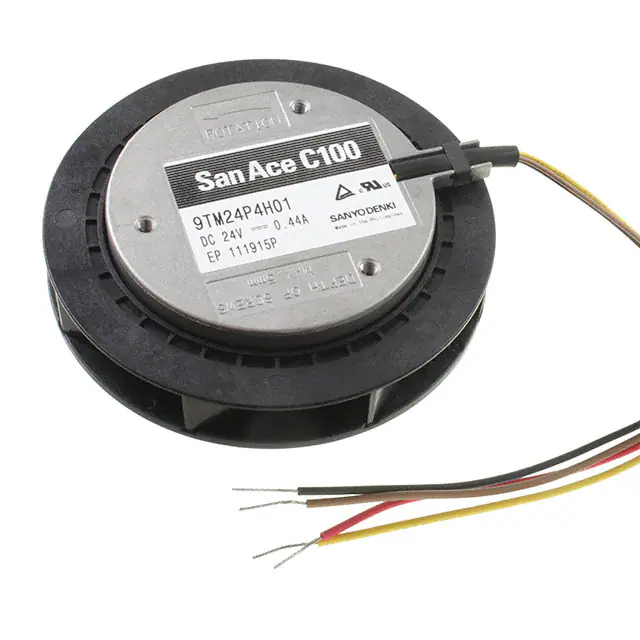

9TM24P4H01FAN IMP MTRZD 100X25MM 24VDC |
217 | - |
|
数据表 |
San Ace C100 | Box | Active | 24VDC | Round - 100mm Dia | 62.5 CFM (1.75m³/min) | 2.250 in H2O (560.0 Pa) | Ball | 0.331 lb (150.14 g) | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 60.0dB(A) | 10.56 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
THB1224B-PM00FAN AXIAL 120X25.4MM 24VDC WIRE |
1,061 | - |
|
数据表 |
THB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 174.7 CFM (4.89m³/min) | 2.139 in H2O (532.8 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 65.0dB(A) | 22.8 W | CE, cURus, TUV | 8300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
614JHFAN AXIAL 60X32MM 24VDC WIRE |
557 | - |
|
数据表 |
600J | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 41.1 CFM (1.15m³/min) | - | Ball | 0.22 lb (99.79 g) | Tubeaxial | - | 32.00mm | 53.0dB(A) | 7.7 W | CE | 11700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
AFB0712H-AFAN AXIAL 70X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 70mm L x 70mm H | 36.3 CFM (1.02m³/min) | 0.217 in H2O (54.1 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 37.5dB(A) | 2.04 W | CE, CSA, UL, VDE | 3900 RPM | - | 2 Wire Leads | - |
|

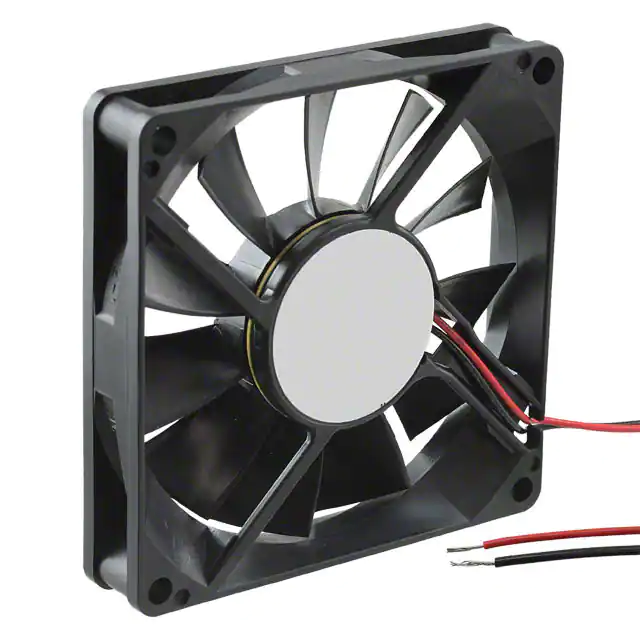

3106KL-04W-B40-B00FAN AXIAL 80X15MM 12VDC WIRE |
3 | - |
|
数据表 |
3106KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 28.2 CFM (0.790m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | - | 15.00mm | 30.0dB | 2.04 W | - | 2600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
3610VL-04W-B20-E00FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 54.0 CFM (1.51m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | - | 25.00mm | 35.5dB(A) | 2.16 W | CE, UL, VDE | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
3610VL-05W-B40-E00FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 68.1 CFM (1.91m³/min) | 0.321 in H2O (80.0 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | - | 25.00mm | 42.0dB(A) | 4.08 W | CE, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
3610VL-04W-B69-B50FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
09225VA | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 85.8 CFM (2.40m³/min) | 0.480 in H2O (119.6 Pa) | Ball | 0.298 lb (135.17 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 48.0dB(A) | 6.24 W | CE, UL, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
109P0405M902FAN AXIAL 40X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 4.2 CFM (0.118m³/min) | 0.108 in H2O (27.0 Pa) | Ball | 0.042 lb (19.05 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 21.0dB(A) | 550 mW | CSA, TUV, UL | 5000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
109P0412M902FAN AXIAL 40X10MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 4.2 CFM (0.118m³/min) | 0.108 in H2O (27.0 Pa) | Ball | 0.042 lb (19.05 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 21.0dB(A) | 720 mW | CSA, TUV, UL | 5000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
KDE4812PMV1.13.MS.A.GNFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
MagLev® KDE | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 145.0 CFM (4.06m³/min) | 0.320 in H2O (79.7 Pa) | Vapo-Bearing™ | 0.683 lb (309.8 g) | Tubeaxial | - | 38.00mm | 50.0dB(A) | 10.8 W | CE, CUR, TUV, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0251005H2B-2T2FAN 25X10MM 5VDC MOLEX 22-01-102 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 2.4 CFM (0.067m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 28.0dB(A) | 400 mW | CE, cURus | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
CFM-6025BG-235-253-22DC AXIAL FAN, 60 MM SQUARE, 25 M |
0 | - |
|
数据表 |
CFM-60BG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 14.7 CFM (0.412m³/min) | 0.150 in H2O (37.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 25.3dB(A) | 0.96 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
