直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3214JNFAN AXIAL 92X38MM 24VDC WIRE |
186 | - |
|
数据表 |
3200J | Box | Active | 24VDC | Square - 92mm L x 92mm H | 77.0 CFM (2.16m³/min) | - | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 38.00mm | 51.0dB(A) | 8 W | CSA, UL, VDE | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

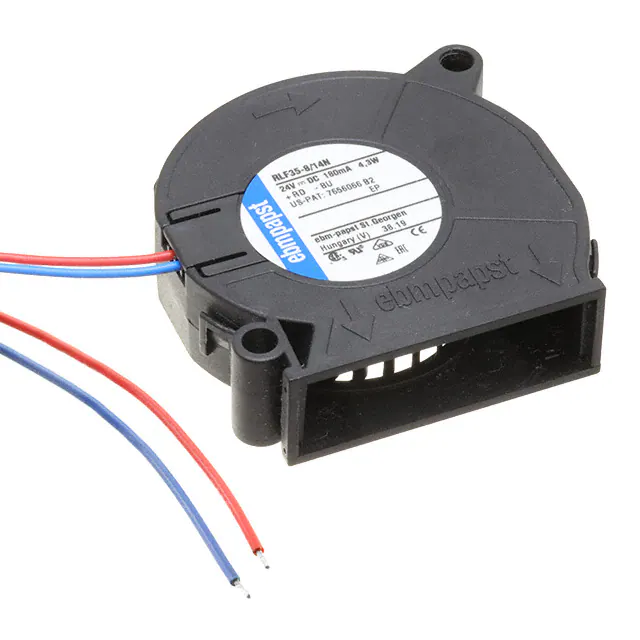

RLF35-8/14NFAN BLOWER CF 51X15MM 24VDC WIRE |
93 | - |
|
数据表 |
RLF35 | Bulk | Active | 24VDC | Square/Rounded - 51mm L x 51mm H | 5.7 CFM (0.160m³/min) | - | Ball | - | Blower, Centrifugal | Locked Rotor Protection | 15.00mm | - | 4.3 W | CE | 6700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
4412/2HFAN AXIAL 119X38MM 12VDC WIRE |
79 | - |
|
数据表 |
4400 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 141.0 CFM (3.95m³/min) | 0.640 in H2O (160.0 Pa) | Ball | 0.604 lb (273.97 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 50.0dB(A) | 8.6 W | - | 4300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9HVA0812P1G001FAN AXIAL 80X38MM 12VDC WIRE |
270 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 132.0 CFM (3.70m³/min) | 5.400 in H2O (1345.1 Pa) | Ball | 0.485 lb (219.99 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 73.0dB(A) | 42 W | cURus, TUV | 16100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
4414/2HHPFAN AXIAL 119X38MM 24VDC WIRE |
241 | - |
|
数据表 |
4400 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 168 CFM (4.8m³/min) | - | Ball | 0.553 lb (250.84 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 55.0dB(A) | 12 W | - | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
PF92251V1-000U-F99FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® PF | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | 0.227 lb (102.97 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 46.0dB(A) | 4.7 W | CE, CUR, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
8214JNFAN AXIAL 80X38MM 24VDC WIRE |
528 | - |
|
数据表 |
8200J | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 78.0 CFM (2.18m³/min) | - | Ball | 0.353 lb (160.12 g) | Tubeaxial | - | 38.00mm | 55.0dB(A) | 10 W | CE | 8400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9LG0612P4H001FAN AXIAL 60X25MM 12VDC WIRE |
440 | - |
|
数据表 |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.389 in H2O (96.9 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 35.0dB(A) | 2.04 W | CSA, TUV, UL | 6150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
PF92251V1-000U-G99FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® PF | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | 0.227 lb (102.97 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 46.0dB(A) | 4.7 W | CE, CUR, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9LG0624P4H001FAN AXIAL 60X25MM 24VDC WIRE |
229 | - |
|
数据表 |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.389 in H2O (96.9 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 35.0dB(A) | 1.92 W | CSA, TUV, UL | 6150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

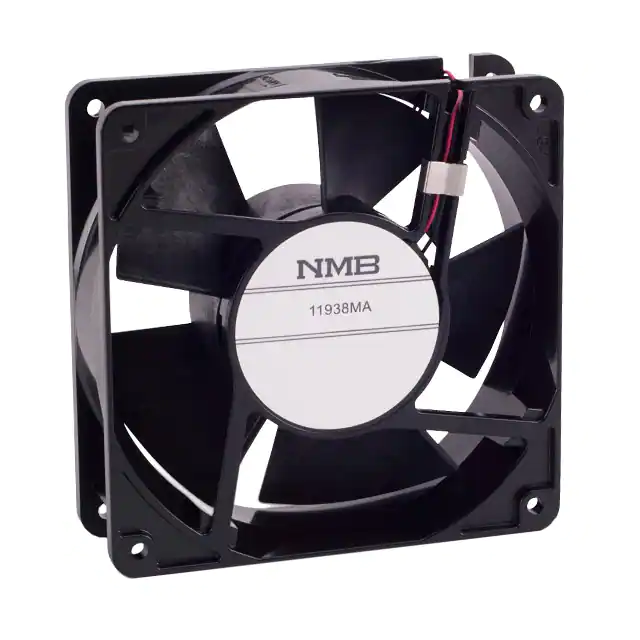

11938ME-24P-GA-00FAN AXIAL 119X38.4MM 24VDC WIRE |
192 | - |
|
数据表 |
11938MA | Box | Active | 24VDC | Square - 119mm L x 119mm H | 181.3 CFM (5.08m³/min) | 0.860 in H2O (214.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.40mm | 59.5dB | 22.4 W | - | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
|
PF92251V3-000U-F99FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® PF | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | 0.227 lb (102.97 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 42.0dB(A) | 3.1 W | CE, CUR, TUV, UL | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

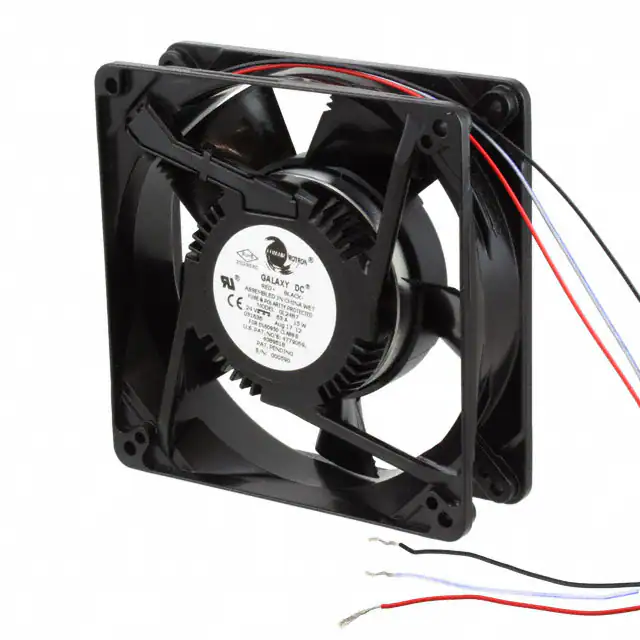

19031636AFAN AXIAL 127X38.1MM 24V GL24B7 |
432 | - |
|
数据表 |
Galaxy | Box | Active | 24VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 38.10mm | 53.6dB(A) | 15 W | CE, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
PF92251V3-000U-G99FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® PF | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | 0.227 lb (102.97 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 42.0dB(A) | 3.1 W | CE, CUR, TUV, UL | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
PFE0381BX-000U-S99FAN AXIAL 140X38MM 12VDC WIRE |
180 | - |
|
数据表 |
PFE | Box | Active | 12VDC | Square - 140mm L x 140mm H | 297.9 CFM (8.34m³/min) | 2.050 in H2O (510.6 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 70.3dB(A) | 39.6 W | CE, CUR, TUV, UL | 6800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

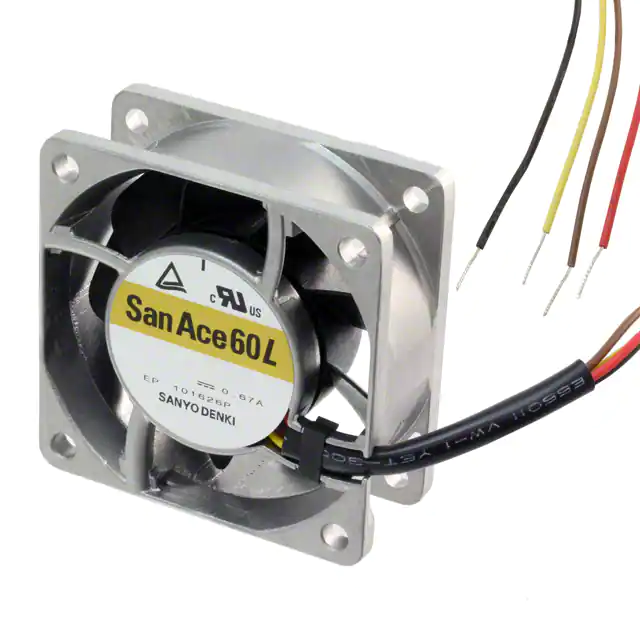

9LG0612P4J001FAN AXIAL 60X25MM 12VDC WIRE |
1,054 | - |
|
数据表 |
San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.8 CFM (1.09m³/min) | 0.730 in H2O (181.8 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 47.0dB(A) | 4.68 W | CSA, TUV, UL | 8650 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
DC0382012L2B-3T0FAN AXIAL 38X20MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 38mm L x 38mm H | 6.3 CFM (0.176m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.067 lb (30.39 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 36.0dB(A) | 1.2 W | CE, cURus, TUV | 6700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
9GV1248P4G01FAN AXIAL 120X25.4MM 48VDC WIRE |
778 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 170.9 CFM (4.79m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.573 lb (260.00 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 58.0dB(A) | 20.16 W | CSA, TUV, UL | 5100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0382012H2B-3T0FAN AXIAL 38X20MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 38mm L x 38mm H | 8.6 CFM (0.241m³/min) | 0.390 in H2O (97.1 Pa) | Ball | 0.067 lb (30.39 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 42.0dB(A) | 1.56 W | CE, cURus, TUV | 8900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9GV1224P4G01FAN AXIAL 120X25.4MM 24VDC WIRE |
290 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 170.9 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 0.573 lb (260.00 g) | Tubeaxial | Locked Rotor Sensor, PWM Control, Speed Sensor (Tach) | 25.40mm | 58.0dB(A) | 20.16 W | CSA, TUV, UL | 5100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
