直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL48-19/12/2FAN BLOWER 75X27MM 12VDC WIRE |
325 | - |
|
数据表 |
RL48 | Box | Active | 12VDC | Square/Rounded - 75mm L x 75mm H | 16.5 CFM (0.462m³/min) | - | Ball | 0.165 lb (74.84 g) | Blower | Speed Sensor (Tach) | 27.00mm | 51.0dB(A) | 5 W | - | 4400 RPM | - | 3 Wire Leads | - |
|
9GV1212P1J01FAN AXIAL 120X38MM 12VDC WIRE |
139 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.794 lb (360.15 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 36 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
614NHHU-286FAN AXIAL 60X25.4MM 24VDC WIRE |
1,177 | - |
|
数据表 |
600NU | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 33.0 CFM (0.924m³/min) | - | Ball | 0.146 lb (66.22 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 41.0dB(A) | 2.9 W | UL | 6850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
RL65-21/14HFAN BLOWER 97X33MM 24VDC WIRE |
366 | - |
|
数据表 |
RL65 | Box | Active | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 35.8 CFM (1.00m³/min) | - | Ball | 0.37 lb (167.83 g) | Blower | - | 33.00mm | 69.0dB(A) | 18 W | - | 4900 RPM | - | 2 Wire Leads | - |
|
MS1751H48B-FHR-2EMFAN AXIAL 171X51.5MM 48VDC WIRE |
62 | - |
|
数据表 |
MS1751-H | Bulk | Active | 48VDC | Rectangular/Rounded - 171mm L x 153mm H | 418.0 CFM (11.70m³/min) | 1.640 in H2O (408.5 Pa) | Ball | 1.5 lbs (670.0 g) | Tubeaxial | Auto Restart | 51.50mm | 71.0dB(A) | - | - | 5500 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
4414FNHFAN AXIAL 119X25.4MM 24VDC WIRE |
229 | - |
|
数据表 |
4400FN | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 132.4 CFM (3.71m³/min) | - | Ball | 0.529 lb (239.95 g) | Tubeaxial | - | 25.40mm | 55.0dB(A) | 12 W | - | 5400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9HVB0812P1G0011FAN AXIAL 80X38MM 12VDC WIRE |
36 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 141.3 CFM (3.96m³/min) | 6.420 in H2O (1599.2 Pa) | Ball | 0.508 lb (230.42 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 75.0dB(A) | 57.6 W | - | 18300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

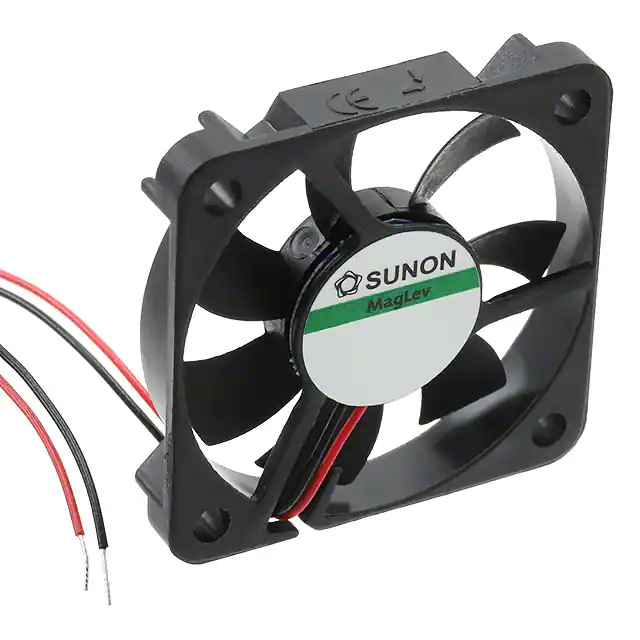

MF40060V1-000U-A99FAN AXIAL 40X6.9MM 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MF | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 5.9 CFM (0.165m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | 0.015 lb (6.8 g) | Tubeaxial | Auto Restart | 6.90mm | 29.9dB(A) | 440 mW | cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
PMD1207PKB4-A.(2).GNFAN AXIAL 70X20MM 12VDC WIRE |
0 | - |
|
数据表 |
PMD | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 20.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
DC0301012U2B-3T3FAN 30X10MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 5.7 CFM (0.157m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 31.0dB(A) | 1.08 W | CE, cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0922512U2B-3T3FAN 92X25MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 3.6 W | CE, cURus, TUV | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
SG40281B1-000U-S99FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
SG | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 25.6 CFM (0.717m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.077 lb (34.93 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 58.5dB(A) | 6.24 W | CUR, TUV, UL | 19000 RPM | - | 4 Wire Leads | - |
|
8314HUFAN AXIAL 80X32MM 24VDC WIRE |
474 | - |
|
数据表 |
8300U | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 47.1 CFM (1.32m³/min) | - | Ball | 0.375 lb (170.1 g) | Tubeaxial | - | 32.00mm | 48.0dB(A) | 6 W | UL | 5000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
AFB0712M-AFAN AXIAL 70X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 70mm L x 70mm H | 28.9 CFM (0.809m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 31.5dB(A) | 1.32 W | CE, CSA, UL, VDE | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9LG0624P4S001FAN AXIAL 60X25MM 24VDC WIRE |
1,187 | - |
|
数据表 |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.204 in H2O (299.9 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 53.0dB(A) | 8.16 W | CSA, TUV, UL | 11000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

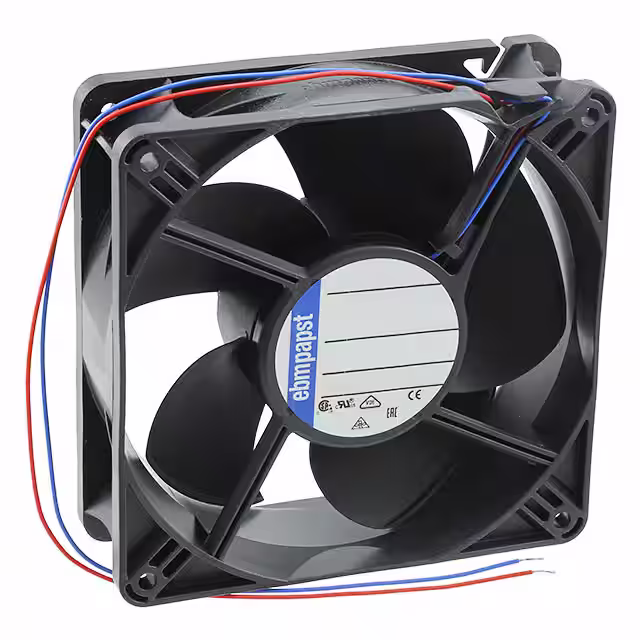

4416MFAN AXIAL 119X38MM 36VDC WIRE |
46 | - |
|
数据表 |
- | Bulk | Active | 36VDC | Square - 119mm L x 119mm H | 108.4 CFM (3.03m³/min) | 0.414 in H2O (102.9 Pa) | Ball | 0.604 lb (273.97 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.00mm | 43.0dB(A) | 2.9 W | - | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9GT0424P3J001FAN AXIAL 40X28MM 24VDC WIRE |
633 | - |
|
数据表 |
San Ace 40T | Box | Active | 24VDC | Square - 40mm L x 40mm H | 18.4 CFM (0.515m³/min) | 0.827 in H2O (206.0 Pa) | Ball | 0.121 lb (54.88 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 28.00mm | 48.0dB(A) | 3.6 W | CSA, TUV, UL | 11700 RPM | -40 ~ 185°F (-40 ~ 85°C) | 4 Wire Leads | - |
|
19032105AFAN AXIAL 119.1X39.1MM MD28B5 |
415 | - |
|
数据表 |
Muffin XL | Box | Active | 28VDC | Square - 119.13mm L x 119.13mm H | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 39.12mm | - | 6.5 W | CE, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
QG030-148/14FAN BLOWER CF 201X47.5MM 24VDC |
688 | - |
|
数据表 |
QG030 | Box | Active | 24VDC | Rectangular - 201mm L x 50mm H | 44.0 CFM (1.23m³/min) | - | Ball | 0.518 lb (234.96 g) | Blower, Cross Flow | - | 47.50mm | 49.0dB(A) | 6.2 W | CE, CSA, UL, VDE | - | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
9GV1224P1J01FAN AXIAL 119X38MM 24VDC WIRE |
494 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.794 lb (360.15 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 36 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
