直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

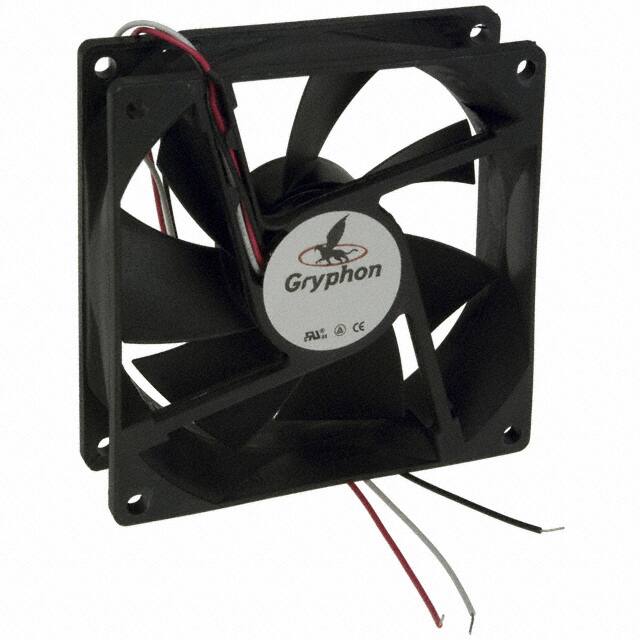

GDA9225-12BBFAN AXIAL 92X25MM 12VDC WIRE Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 49.0 CFM (1.37m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.187 lb (84.82 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 33.0dB(A) | 2.8 W | - | 2800 RPM | - | 3 Wire Leads | - |
|
|
GDA9225-24BBFAN AXIAL 92X25MM 24VDC WIRE Comair Rotron |
0 | - |
|
数据表 |
Gryphon | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 49.0 CFM (1.37m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.187 lb (84.82 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 33.0dB(A) | 5.3 W | - | 2800 RPM | - | 3 Wire Leads | - |
|

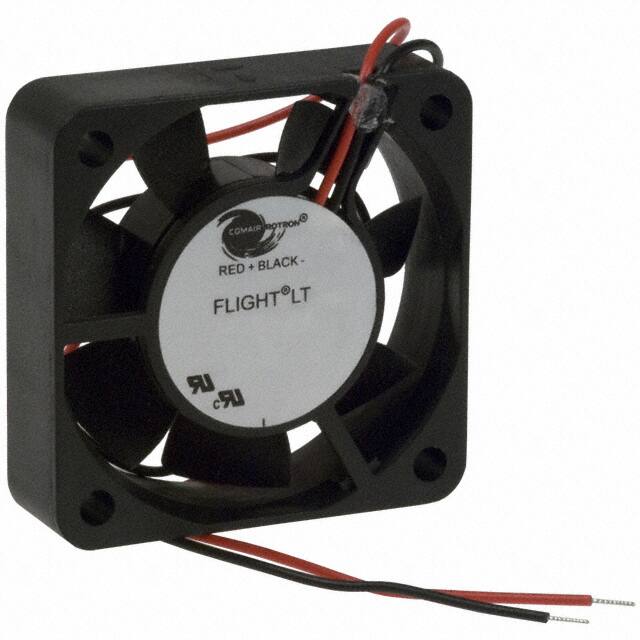

19032660AFAN 12VDC 52X15MM CR0512HB-D71 Comair Rotron |
0 | - |
|
数据表 |
Flight LT | - | Obsolete | 12VDC | Square - 52mm L x 52mm H | 12.0 CFM (0.336m³/min) | 0.163 in H2O (40.6 Pa) | Ball | 0.079 lb (35.83 g) | Tubeaxial | - | 15.00mm | 28.7dB(A) | 1.2 W | - | 4600 RPM | - | 2 Wire Leads | - |
|

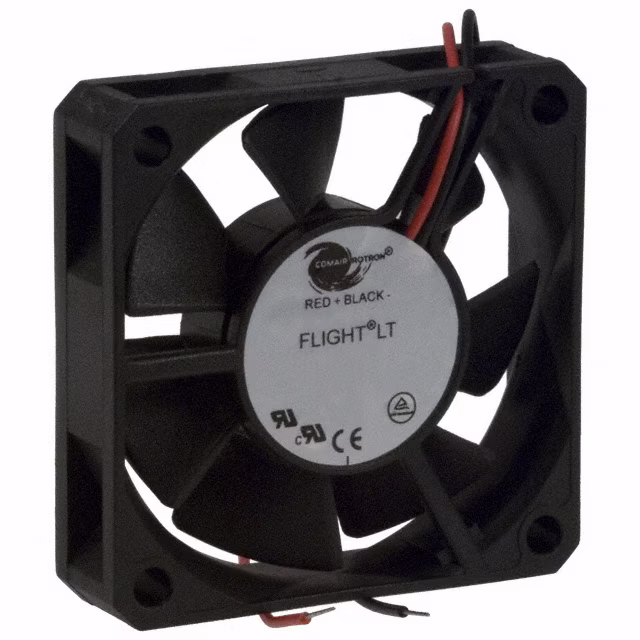

19032686AFAN AXIAL 60X15MM CR0612HB-D71GL Comair Rotron |
0 | - |
|
数据表 |
Flight LT 60 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 17.0 CFM (0.476m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 0.084 lb (38.1 g) | Tubeaxial | - | 15.00mm | 32.4dB(A) | 1.6 W | CE, CUR, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

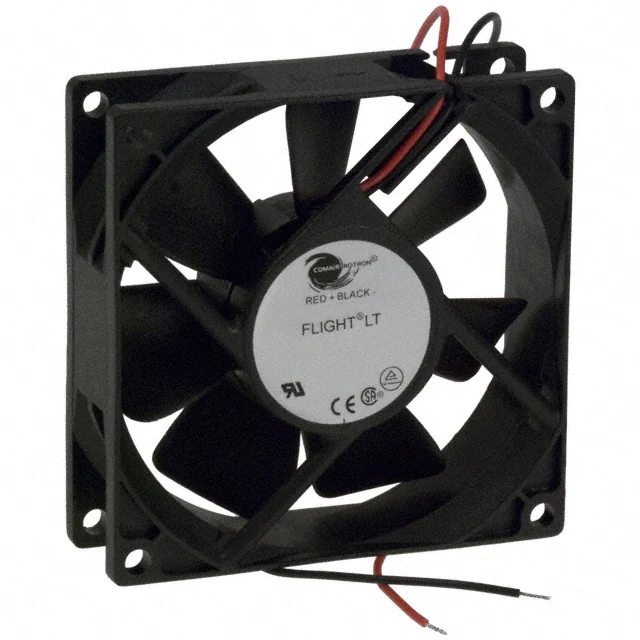

19032736AFAN AXIAL 80X25MM CR0812HB-A70GL Comair Rotron |
0 | - |
|
数据表 |
Flight LT 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.0 CFM (1.06m³/min) | 0.157 in H2O (39.1 Pa) | Ball | 0.19 lb (86.18 g) | Tubeaxial | - | 25.00mm | 34.4dB(A) | 3 W | CE, CSA, UR | 3010 RPM | - | 2 Wire Leads | - |
|
19032704AFAN AXIAL 60X25MM CR0612HB-A70GL Comair Rotron |
0 | - |
|
数据表 |
Flight LT 60 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 23.2 CFM (0.650m³/min) | 0.185 in H2O (46.1 Pa) | Ball | 0.15 lb (68.04 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 32.3dB(A) | 2.76 W | CUR, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

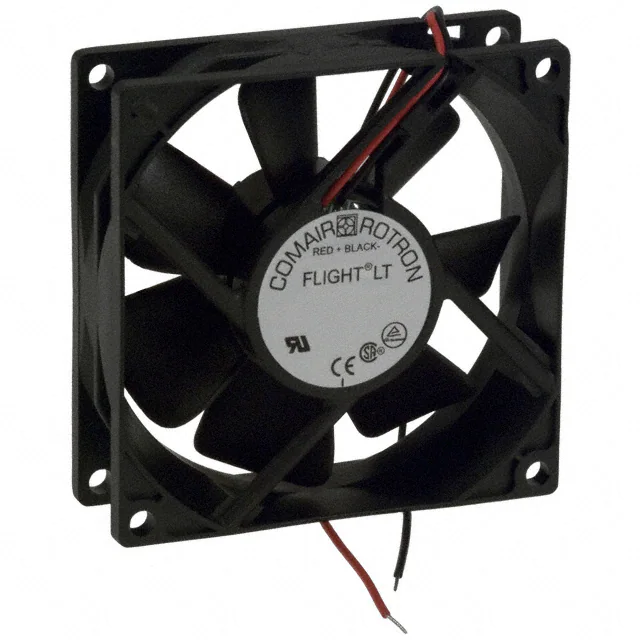

19032738AFAN AXIAL 80X25MM CR0812MB-A70GL Comair Rotron |
0 | - |
|
数据表 |
Flight LT 80 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 31.0 CFM (0.868m³/min) | 0.112 in H2O (27.9 Pa) | Ball | 0.19 lb (86.18 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 28.3dB(A) | 1.8 W | CE, cUL, TUV, UL | 2440 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
19032744AFAN AXIAL 80X25MM CR0824HB-A70GL Comair Rotron |
0 | - |
|
数据表 |
Flight LT 80 | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Ball | 0.19 lb (86.18 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 35.8dB(A) | 2.4 W | CE | 3010 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19032760AFAN AXIAL 92X25MM CR0912HB-A70GL Comair Rotron |
0 | - |
|
数据表 |
Flight LT 90 | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.125 in H2O (31.1 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | - | 25.00mm | 35.0dB(A) | 4.1 W | CSA, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19032768AFAN AXIAL 92X25MM CR0924HB-A70GL Comair Rotron |
0 | - |
|
数据表 |
Flight LT 90 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 50.0 CFM (1.40m³/min) | 0.125 in H2O (31.1 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | - | 25.00mm | 35.0dB(A) | 3.6 W | CSA, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
