直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-5010-03-10FAN AXIAL 50X10.6MM 5VDC WIRE |
3,221 | - |
|
数据表 |
CFM-50 | Tray | Active | 5VDC | Square - 50mm L x 50mm H | 16.1 CFM (0.451m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.046 lb (20.87 g) | Tubeaxial | Auto Restart | 10.60mm | 37.2dB(A) | 1.4 W | CE, cURus, TUV | 6100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
DC0301012L2B-2T2FAN 30X10MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 3.0 CFM (0.084m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 17.0dB(A) | 360 mW | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0301012M2B-2T2FAN 30X10MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 3.7 CFM (0.104m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 24.0dB(A) | 600 mW | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
MF30060V2-1000U-A99FAN AXIAL 30X6.5MM 5VDC WIRE |
4,858 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 3.7 CFM (0.104m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | 0.014 lb (6.35 g) | Tubeaxial | Auto Restart | 6.50mm | 15.7dB(A) | 360 mW | cURus, TUV | 7100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0301012H2B-2T2FAN 30X10MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 4.5 CFM (0.126m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 29.0dB(A) | 840 mW | CE, cURus, TUV | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
MF30100V1-1000U-A99FAN AXIAL 30X10MM VAPO 5VDC WIRE |
4,299 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 5.5 CFM (0.154m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | 0.018 lb (8.16 g) | Tubeaxial | Auto Restart | 10.00mm | 23.0dB(A) | 600 mW | cURus, TUV | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
3612KL-04W-B40-E00FAN AXIAL 92X32MM 12VDC WIRE |
0 | - |
|
数据表 |
3612KL | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 58.6 CFM (1.64m³/min) | 0.245 in H2O (61.0 Pa) | Ball | 0.507 lb (229.97 g) | Tubeaxial | - | 32.00mm | 38.0dB | 3.72 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
3612KL-04W-B59-E50FAN AXIAL 92X32MM 12VDC WIRE |
0 | - |
|
数据表 |
3612KL | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 69.9 CFM (1.96m³/min) | 0.333 in H2O (83.0 Pa) | Ball | 0.507 lb (229.97 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 43.5dB | 5.64 W | CE, CSA, UL, VDE | 3800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
MF30060V1-1000U-A99FAN AXIAL 30X6.5MM 5VDC WIRE |
1,449 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 4.9 CFM (0.137m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | 0.014 lb (6.35 g) | Tubeaxial | Auto Restart | 6.50mm | 23.6dB(A) | 560 mW | cURus, TUV | 9100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
DC0251012H2B-3T0FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 25mm L x 25mm H | 2.4 CFM (0.067m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 28.0dB(A) | 960 mW | CE, cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0251005H2B-2T0FAN 25X10MM 5VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 2.4 CFM (0.067m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 28.0dB(A) | 400 mW | CE, cURus | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FAD1-06025BBLW12-AFAN AXIAL 60X25MM BALL 5VDC WIRE |
129 | - |
|
数据表 |
FAD1-06025-A | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.080 in H2O (19.9 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | - | 25.00mm | 18.9dB(A) | 1 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0601524J2B-BT4FAN 60X15MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.0 CFM (0.420m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 24.0dB(A) | 1.44 W | CE, cURus | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0601524H2B-BT4FAN 60X15MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.1 CFM (0.647m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 35.0dB(A) | 2.88 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
CFM-5010-13-22FAN AXIAL 50X10.6MM 12VDC WIRE |
3,541 | - |
|
数据表 |
CFM-50 | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 16.1 CFM (0.451m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.046 lb (20.87 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.60mm | 37.0dB(A) | 1.68 W | CE, cURus, TUV | 6100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0601524M2B-BT4FAN 60X15MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 21.7 CFM (0.608m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 2.4 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|

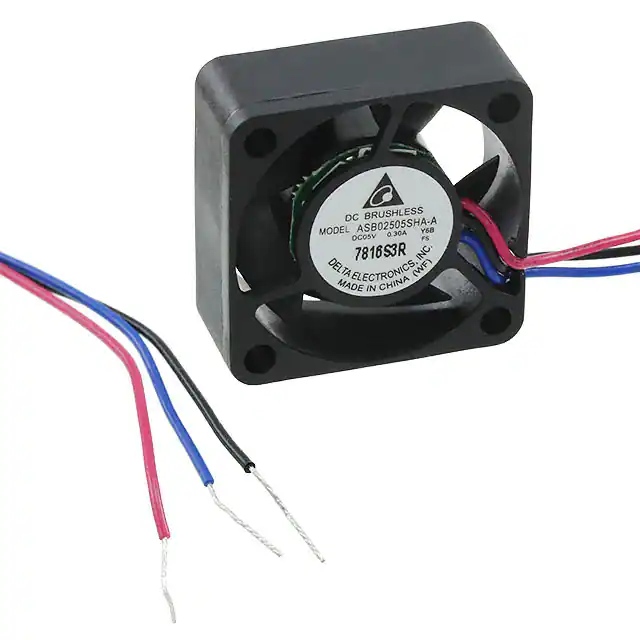

ASB02505SHA-AY6BFAN AXIAL 25X10MM 5VDC WIRE |
1,995 | - |
|
数据表 |
ASB | Box | Active | 5VDC | Square - 25mm L x 25mm H | 4.3 CFM (0.120m³/min) | 0.320 in H2O (79.7 Pa) | Sleeve | 0.014 lb (6.35 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 31.0dB(A) | 600 mW | - | 15000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

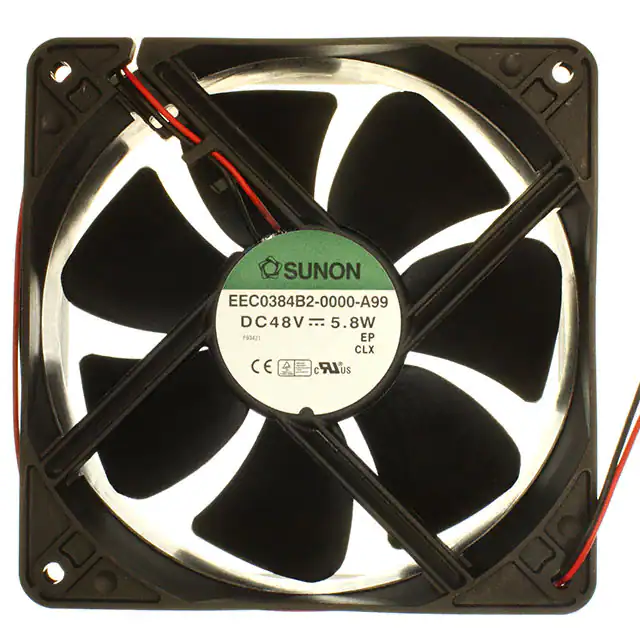

EEC0384B2-000U-A99FAN AXIAL 120X38MM 48VDC WIRE |
8,583 | - |
|
数据表 |
EEC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.472 lb (214.1 g) | Tubeaxial | Auto Restart | 38.00mm | 44.0dB(A) | 5.8 W | CE, CUR, TUV, UL | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
F410T-05LCFAN AXIAL 40X10MM 5VDC WIRE |
1,134 | - |
|
数据表 |
F410T | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 3.9 CFM (0.109m³/min) | 0.040 in H2O (10.0 Pa) | Sleeve | 0.044 lb (19.96 g) | Tubeaxial | - | 10.00mm | 12.0dB(A) | 400 mW | - | 4600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
F310R-12LCFAN AXIAL 30X10MM 12VDC WIRE |
1,791 | - |
|
数据表 |
F310R | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 3.2 CFM (0.090m³/min) | 0.092 in H2O (23.0 Pa) | Sleeve | 0.018 lb (8.16 g) | Tubeaxial | - | 10.00mm | 17.0dB(A) | 480 mW | - | 7000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
