直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0802024M2B-BT4FAN 80X20MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 36.6 CFM (1.03m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 34.0dB(A) | 4.32 W | CE, cURus | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0502024J2B-BT4FAN 50X20MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 12.7 CFM (0.356m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 28.0dB(A) | 3.12 W | CE, cURus | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
MF50151VX-1B00U-A99FAN BLOWER 51.7X15MM 12VDC WIRE |
1,495 | - |
|
数据表 |
MF | Bulk | Active | 12VDC | Square/Rounded - 51.7mm L x 51.6mm H | 5.4 CFM (0.151m³/min) | 0.970 in H2O (241.6 Pa) | Vapo-Bearing™ | - | Blower | Auto Restart | 15.00mm | 42.2dB(A) | 1.86 W | CCC, CE, cURus, TUV | 6200 RPM | - | 2 Wire Leads | - |
|
|
DC0701524J2B-BT4FAN 70X15MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 21.1 CFM (0.591m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 27.0dB(A) | 2.4 W | CE, cURus | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0502024I2B-BT4FAN 50X20MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.1 CFM (0.283m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 24.0dB(A) | 2.4 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
OD6025-12LBFAN AXIAL 60X25MM 12VDC WIRE |
5,806 | - |
|
数据表 |
OD6025 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 14.0 CFM (0.392m³/min) | 0.080 in H2O (20.0 Pa) | Ball | 0.141 lb (63.96 g) | Tubeaxial | Auto Restart | 25.00mm | 19.0dB(A) | 1 W | cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0502024L2B-BT4FAN 50X20MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 14.8 CFM (0.414m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 32.0dB(A) | 3.6 W | CE, cURus | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
OD4020-12HBFAN AXIAL 40X20MM 12VDC WIRE |
3,772 | - |
|
数据表 |
OD4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.7 CFM (0.244m³/min) | 0.320 in H2O (79.7 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 32.1dB(A) | 1.3 W | CE, cURus, TUV | 8190 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
DC0701524L2B-BT4FAN 70X15MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 25.7 CFM (0.720m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 31.0dB(A) | 2.88 W | CE, cURus | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0702548L2B-BT4FAN 70X25MM 48VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 30.0 CFM (0.840m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 27.0dB(A) | 3.36 W | CE, cURus | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
OD6025-24HBFAN AXIAL 60X25MM 24VDC WIRE |
3,769 | - |
|
数据表 |
OD6025 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.141 lb (63.96 g) | Tubeaxial | Auto Restart | 25.00mm | 30.0dB(A) | 3.5 W | CE, cURus, TUV, UR | 3975 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
04520GA-12L-AT-00BLOWER 45MM X 20MM 12VDC TACH 3 |
0 | - |
|
数据表 |
04520GA | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F16FB-05LLC /EFAN BLOWER 16X4.5MM 5VDC WIRE |
432 | - |
|
数据表 |
F16FB | Bulk | Active | 5VDC | Square - 16mm L x 16mm H | 0.424 CFM (0.012m³/min) | 0.022 in H2O (5.5 Pa) | Sleeve | 0.003 lb (1.36 g) | Blower | - | 4.50mm | 3.0dB(A) | 200 mW | - | 6000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
F614T-05MCFAN AXIAL 62X14.5MM 5VDC WIRE |
0 | - |
|
数据表 |
F614T | Bulk | Active | 5VDC | Square - 62mm L x 62mm H | 12.7 CFM (0.360m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | 0.088 lb (39.92 g) | Tubeaxial | - | 14.50mm | 23.0dB(A) | - | CE, cUL, TUV, UL | 2900 RPM | - | 2 Wire Leads | - |
|
|
F614T-12MCFAN AXIAL 62X14.5MM 12VDC WIRE |
0 | - |
|
数据表 |
F614T | Bulk | Active | 12VDC | Square - 62mm L x 62mm H | 12.7 CFM (0.360m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | 0.088 lb (39.92 g) | Tubeaxial | - | 14.50mm | 23.0dB(A) | - | CE, cUL, TUV, UL | 2900 RPM | - | 2 Wire Leads | - |
|

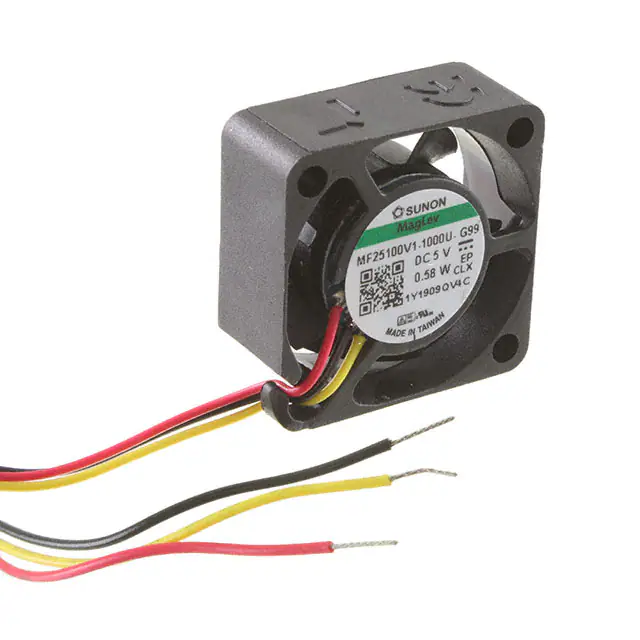

MF25100V1-1000U-G99FAN AXIAL 25X10MM VAPO 5VDC WIRE |
2,507 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | 0.016 lb (7.26 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 23.0dB(A) | 530 mW | cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0802524J2B-3T3FAN 80X25MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 35.0dB(A) | 3.6 W | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
CBM-5020V-152FAN BLOWER 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CBM-50V | Tray | Obsolete | 12VDC | Square/Rounded - 50mm L x 50mm H | 5.7 CFM (0.160m³/min) | 0.660 in H2O (164.4 Pa) | omniCOOL™ Magnetic Sleeve | 0.073 lb (33.11 g) | Blower | Auto Restart | 20.00mm | 35.0dB(A) | 1.5 W | CE, cURus, TUV | 5200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
02510SS-12P-AT-00FAN AXIAL 25X10MM 12VDC WIRE |
882 | - |
|
数据表 |
02510SS | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 2.6 CFM (0.073m³/min) | 0.270 in H2O (67.3 Pa) | Sleeve | 0.018 lb (8.16 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 28.5dB | 840 mW | - | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
G9225X24B-FSRFAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
G9225 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 66.0 CFM (1.85m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | - |
