直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-4010-03-10FAN AXIAL 40X10.6MM 5VDC WIRE |
554 | - |
|
数据表 |
CFM-40 | Tray | Active | 5VDC | Square - 40mm L x 40mm H | 10.0 CFM (0.280m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 0.031 lb (14.06 g) | Tubeaxial | Auto Restart | 10.60mm | 37.0dB(A) | 1.2 W | CE, cURus, TUV | 8300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

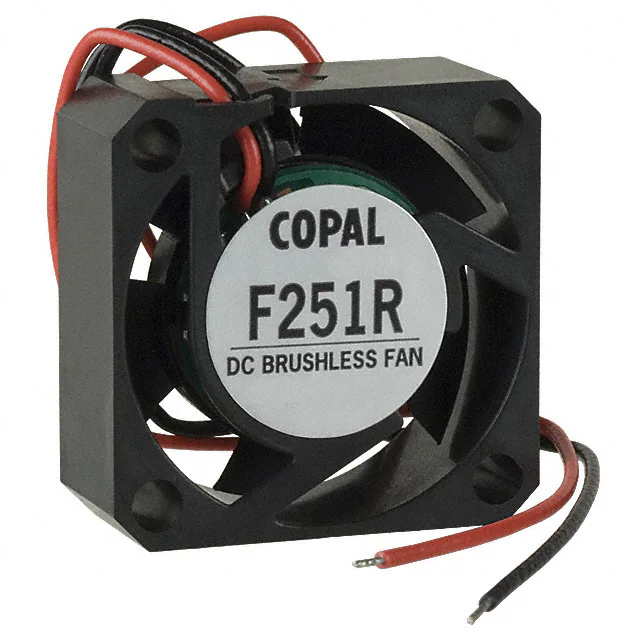

F251R-12LLCFAN AXIAL 25X10MM 12VDC WIRE |
1,871 | - |
|
数据表 |
F251R | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 1.4 CFM (0.039m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | 0.015 lb (6.8 g) | Tubeaxial | - | 10.00mm | 11.0dB(A) | 360 mW | - | 6500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
F251R-05LLCFAN AXIAL 25X10MM 5VDC WIRE |
1,100 | - |
|
数据表 |
F251R | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 1.4 CFM (0.039m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | 0.015 lb (6.8 g) | Tubeaxial | - | 10.00mm | 11.0dB(A) | 250 mW | - | 6500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
DC0601524L2B-BT4FAN 60X15MM 24VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 29.0dB(A) | 1.92 W | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
KD1212PMBX-6AFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | - | 7.5 W | CE, CUR, TUV, UL | - | - | 2 Wire Leads | - |
|
|
05115GS-12M-ATD-0BLOWER 51MM X 15MM 12VDC TACH 3 |
0 | - |
|
数据表 |
05115GS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
05115GS-12L-ALD-0BLOWER 51MM X 15MM 12VDC LOCK RO |
0 | - |
|
数据表 |
05115GS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
05115GS-12N-ALD-0BLOWER 51MM X 15MM 12VDC LOCK RO |
0 | - |
|
数据表 |
05115GS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
05115GS-12M-ALD-0BLOWER 51MM X 15MM 12VDC LOCK RO |
0 | - |
|
数据表 |
05115GS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
M5010E05C-RSRFAN AXIAL 50X10MM 5VDC WIRE |
754 | - |
|
数据表 |
M5010 | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 9.9 CFM (0.277m³/min) | 0.140 in H2O (34.9 Pa) | 1 Ball/1 Sleeve | 0.046 lb (20.87 g) | Tubeaxial | - | 10.00mm | 28.0dB(A) | - | cUL, TUV, UL | 6000 RPM | - | 2 Wire Leads | - |
|
|
05115GS-12N-ATD-0BLOWER 51MM X 15MM 12VDC TACH 3 |
0 | - |
|
数据表 |
05115GS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F6025E24B-RSRFAN AXIAL 60X25MM 24VDC WIRE |
714 | - |
|
数据表 |
F6025 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 4600 RPM | - | 2 Wire Leads | - |
|
MF25101V2-1000U-A99FAN AXIAL 25X10MM 12VDC WIRE |
6,143 | - |
|
数据表 |
MagLev® MF | Box | Active | 12VDC | Square - 25mm L x 25mm H | 3.0 CFM (0.084m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | 0.015 lb (6.8 g) | Tubeaxial | Auto Restart | 10.00mm | 16.0dB(A) | 360 mW | cURus, TUV | 9600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
05115GS-12L-ATD-0BLOWER 51MM X 15MM 12VDC TACH 3 |
0 | - |
|
数据表 |
05115GS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DC0802524M2B-BT0FAN 80X25MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 69.9 CFM (1.96m³/min) | 0.260 in H2O (64.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 44.0dB(A) | 6 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
AFB0812HD-AF00FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 49.3 CFM (1.38m³/min) | 0.249 in H2O (62.0 Pa) | Ball | 0.161 lb (73.03 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 40.0dB(A) | 2.64 W | CE, CSA, UL, VDE | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD1225-12HSS01AFAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Sealed Sleeve | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 42.0dB(A) | 5.4 W | cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

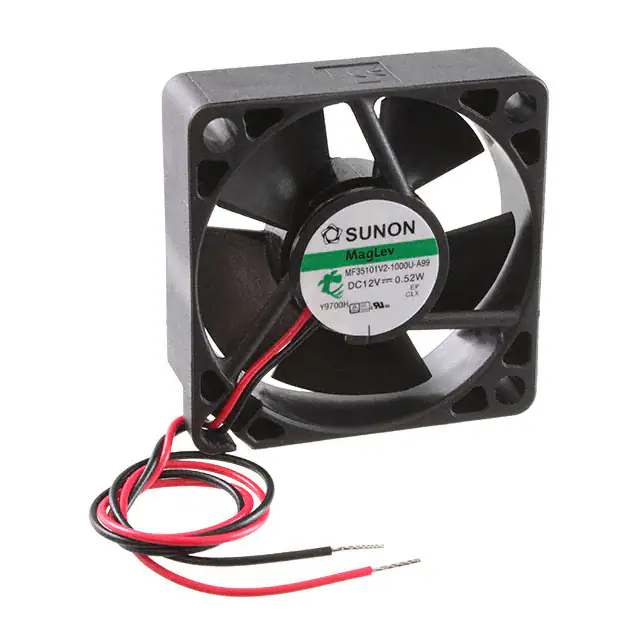

MF35101V2-1000U-A99FAN AXIAL 35X10MM 12VDC WIRE |
2,166 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 6.5 CFM (0.182m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | 0.024 lb (10.89 g) | Tubeaxial | Auto Restart | 10.00mm | 21.8dB(A) | 420 mW | cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD1225-12HSS10AFAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Sealed Sleeve | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 42.0dB(A) | 5.4 W | cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
MF25101V1-1000U-A99FAN AXIAL 25X10MM 12VDC WIRE |
1,832 | - |
|
数据表 |
MagLev® MF | Box | Active | 12VDC | Square - 25mm L x 25mm H | 3.8 CFM (0.106m³/min) | 0.270 in H2O (67.3 Pa) | Vapo-Bearing™ | 0.015 lb (6.8 g) | Tubeaxial | Auto Restart | 10.00mm | 26.0dB(A) | 600 mW | cURus, TUV | 14000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
