直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF40202V2-1000U-A99FAN AXIAL 40X20MM 24VDC WIRE |
13,670 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 7.7 CFM (0.216m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | 0.064 lb (29.03 g) | Tubeaxial | Auto Restart | 20.00mm | 21.0dB(A) | 600 mW | cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MF60251V1-1000U-A99FAN AXIAL 60X25MM 12VDC WIRE |
12,061 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | 0.101 lb (45.81 g) | Tubeaxial | Auto Restart | 25.00mm | 27.0dB(A) | 900 mW | cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

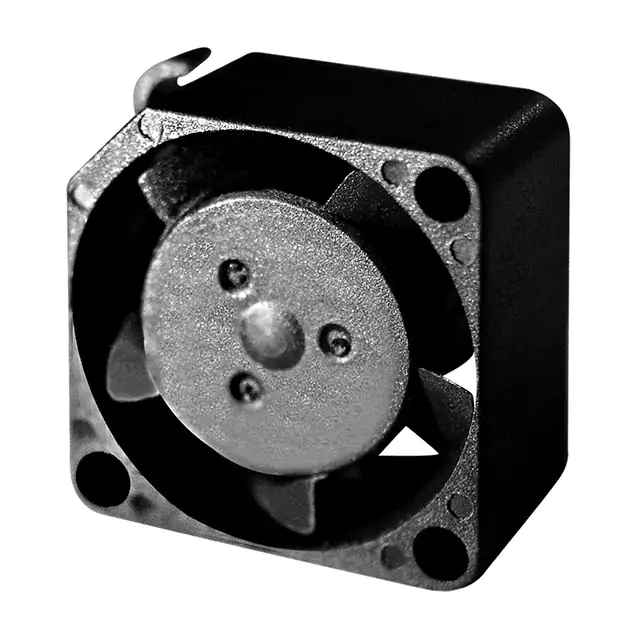

MF20100V2-1000U-A99FAN AXIAL 20X10MM VAPO 5VDC WIRE |
4,841 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 5VDC | Square - 20mm L x 20mm H | 1.5 CFM (0.042m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | 0.011 lb (4.99 g) | Tubeaxial | Auto Restart | 10.00mm | 20.0dB(A) | 400 mW | cURus, TUV | 14000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MF60152V1-1000U-A99FAN AXIAL 60X15MM 24VDC WIRE |
1,618 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 26.4 CFM (0.739m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | 0.079 lb (35.83 g) | Tubeaxial | Auto Restart | 15.00mm | 34.2dB(A) | 1.8 W | cURus, TUV | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MF60152VX-1000U-A99FAN AXIAL 60X15MM 24VDC WIRE |
646 | - |
|
数据表 |
MagLev® MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 30.4 CFM (0.851m³/min) | 0.220 in H2O (54.8 Pa) | Vapo-Bearing™ | 0.079 lb (35.83 g) | Tubeaxial | Auto Restart | 15.00mm | 36.2dB(A) | 2.04 W | cURus, TUV | 5400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MF40202V1-1000U-A99FAN AXIAL 40X20MM 24VDC WIRE |
531 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 8.9 CFM (0.249m³/min) | 0.220 in H2O (55.0 Pa) | Vapo-Bearing™ | 0.064 lb (29.03 g) | Tubeaxial | Auto Restart | 20.00mm | 25.5dB(A) | 770 mW | cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF40202VX-1000U-A99FAN AXIAL 40X20MM 24VDC WIRE |
496 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.8 CFM (0.302m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | 0.064 lb (29.03 g) | Tubeaxial | Auto Restart | 20.00mm | 27.5dB(A) | 940 mW | cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
M5010M05C-RSFAN AXIAL 50X10MM 5VDC WIRE |
2 | - |
|
数据表 |
M5010 | Bulk | Discontinued at Digi-Key | 5VDC | Square - 50mm L x 50mm H | 6.3 CFM (0.176m³/min) | 0.070 in H2O (17.4 Pa) | 1 Ball/1 Sleeve | 0.046 lb (20.87 g) | Tubeaxial | - | 10.00mm | 24.0dB(A) | - | cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
|
CFM-8025BG-260-484FAN AXIAL 80X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80BG | Box | Active | 24VDC | Square - 80mm L x 80mm H | 62.1 CFM (1.74m³/min) | 0.610 in H2O (151.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.40mm | 48.4dB(A) | 7.2 W | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB0812HHD-AFAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 55.9 CFM (1.57m³/min) | 0.311 in H2O (77.5 Pa) | Ball | 0.161 lb (73.03 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 44.0dB(A) | 3.84 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
DC0301012L2B-BT0FAN AXIAL 30X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 30mm L x 30mm H | 3.0 CFM (0.084m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.023 lb (10.43 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.50mm | 17.0dB(A) | 360 mW | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0301012M2B-BT0FAN AXIAL 30X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 30mm L x 30mm H | 3.7 CFM (0.104m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.023 lb (10.43 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.50mm | 24.0dB(A) | 600 mW | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0301012H2B-BT0FAN AXIAL 30X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 30mm L x 30mm H | 4.5 CFM (0.126m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.023 lb (10.43 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.50mm | 29.0dB(A) | 840 mW | CE, cURus, TUV | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0301005M2B-3T0FAN 30X10MM 5VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 3.7 CFM (0.104m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.50mm | 24.0dB(A) | 250 mW | CE, cURus | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0301005L2B-3T0FAN 30X10MM 5VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 3.0 CFM (0.084m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.50mm | 17.0dB(A) | 150 mW | CE, cURus | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
MF60251V2-1000U-A99FAN AXIAL 60X25MM 12VDC WIRE |
448 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | 0.101 lb (45.81 g) | Tubeaxial | Auto Restart | 25.00mm | 22.0dB(A) | 870 mW | cURus, TUV | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

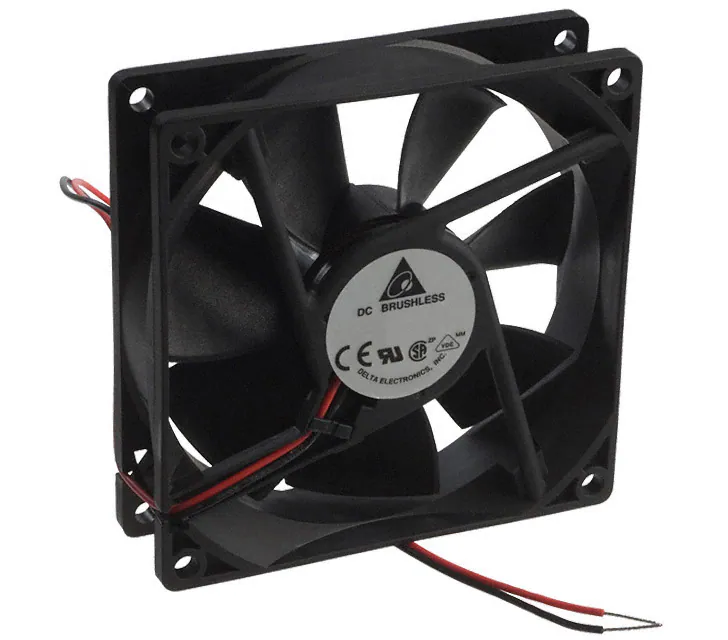

AFB0912VHFAN AXIAL 92X25.4MM 12VDC WIRE |
6,850 | - |
|
数据表 |
AFB | Tray | Active | 12VDC | Square - 92mm L x 92mm H | 67.8 CFM (1.90m³/min) | 0.302 in H2O (75.2 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 45.0dB(A) | 4.8 W | CE, CSA, UL, VDE | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
06025SA-12N-AA-D0FAN AXIAL 60X25MM 12VDC WIRE |
1,580 | - |
|
数据表 |
06025SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 33.0dB | 1.8 W | - | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

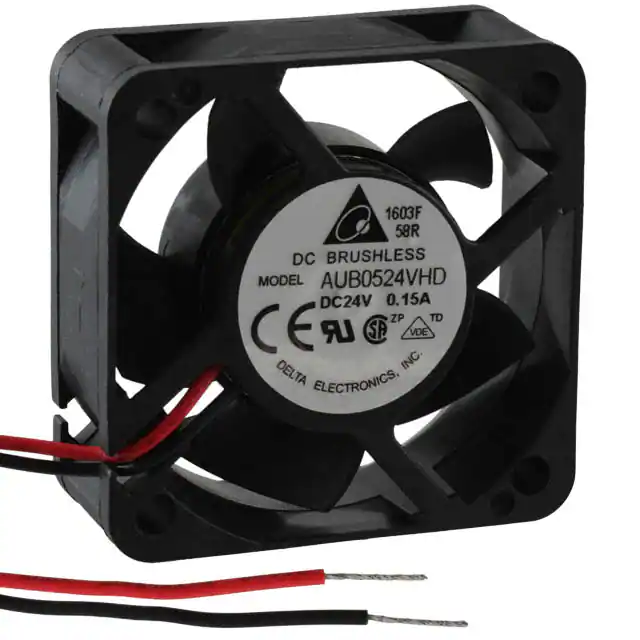

AUB0524VHDFAN AXIAL 50X20MM 24VDC WIRE |
1,269 | - |
|
数据表 |
AUB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.3 CFM (0.568m³/min) | 0.303 in H2O (75.5 Pa) | Superflo | 0.085 lb (38.56 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 40.5dB(A) | 2.4 W | CE, CSA, UL, VDE | 7000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
DC0501005M2B-3T3FAN 50X10MM 5VDC TACH MOLEX 22-0 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 30.0dB(A) | 400 mW | CE, cURus | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
