直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0501005H2B-3T3FAN 50X10MM 5VDC TACH MOLEX 22-0 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 35.0dB(A) | 500 mW | CE, cURus | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
06025SA-24M-AA-D0FAN AXIAL 60X25MM 24VDC WIRE |
1,133 | - |
|
数据表 |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 19.8 CFM (0.554m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 27.5dB | 1.4 W | - | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
06025SA-24Q-AA-D0FAN AXIAL 60X25MM 24VDC WIRE |
1,117 | - |
|
数据表 |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 26.8 CFM (0.750m³/min) | 0.320 in H2O (79.7 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 35.0dB | 2.4 W | - | 5300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
06025SA-24N-AA-D0FAN AXIAL 60X25MM 24VDC WIRE |
471 | - |
|
数据表 |
06025SA | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.3 CFM (0.652m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 33.0dB | 1.9 W | - | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

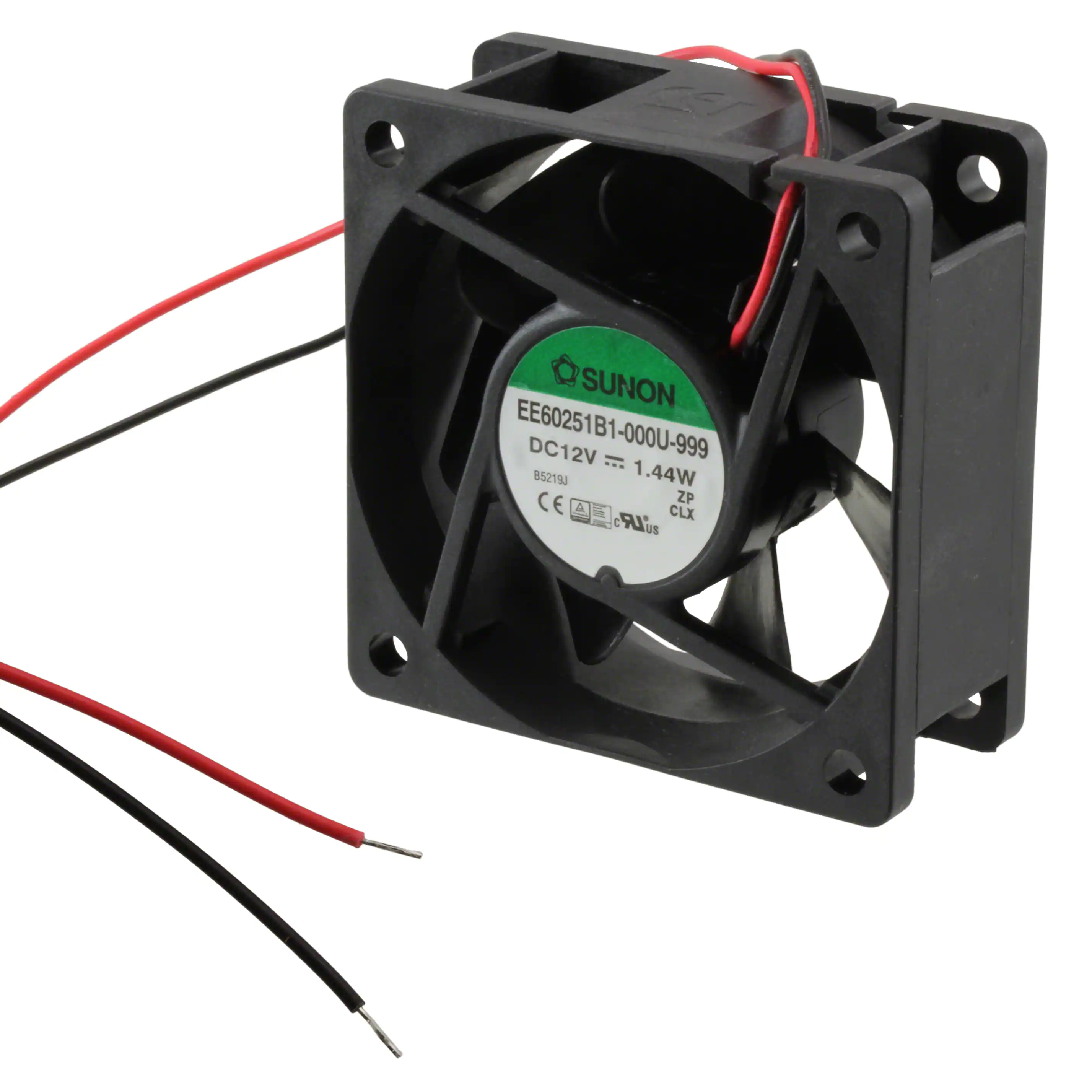

EE60251B1-000U-999FAN AXIAL 60X25MM 12VDC WIRE |
6,564 | - |
|
数据表 |
EE | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | - | 25.00mm | 34.5dB(A) | 1.44 W | CE, CUR, TUV, UL | 4500 RPM | - | 2 Wire Leads | - |
|

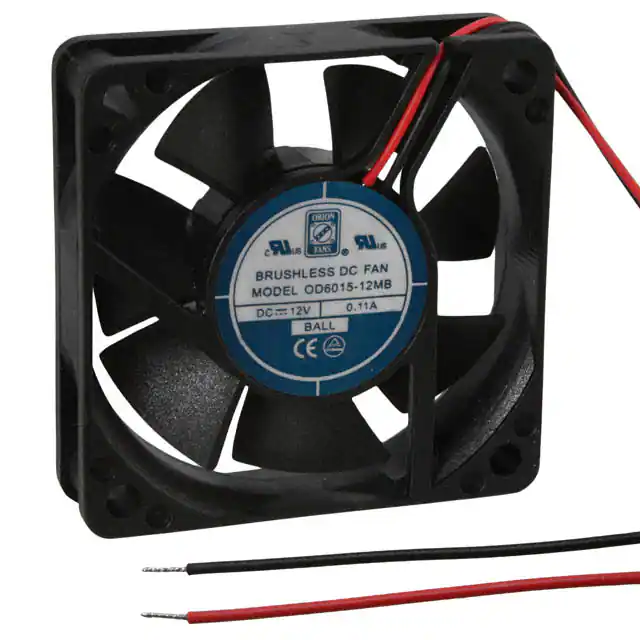

OD6015-12MBFAN AXIAL 60X15MM 12VDC WIRE |
655 | - |
|
数据表 |
OD6015 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 14.0 CFM (0.392m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.079 lb (35.83 g) | Tubeaxial | Auto Restart | 15.00mm | 29.0dB | - | cURus, TUV | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
08025SA-12M-EA-D0FAN AXIAL 80X25MM 12VDC WIRE |
1,401 | - |
|
数据表 |
08025SA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 36.0 CFM (1.01m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 26.0dB | 1.08 W | - | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
08025SA-24M-EA-D0FAN AXIAL 80X25MM 24VDC WIRE |
1,326 | - |
|
数据表 |
08025SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 36.0 CFM (1.01m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 26.0dB | 1.44 W | - | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
08025SA-12N-EA-D0FAN AXIAL 80X25MM 12VDC WIRE |
673 | - |
|
数据表 |
08025SA | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 30.0dB | 1.7 W | - | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

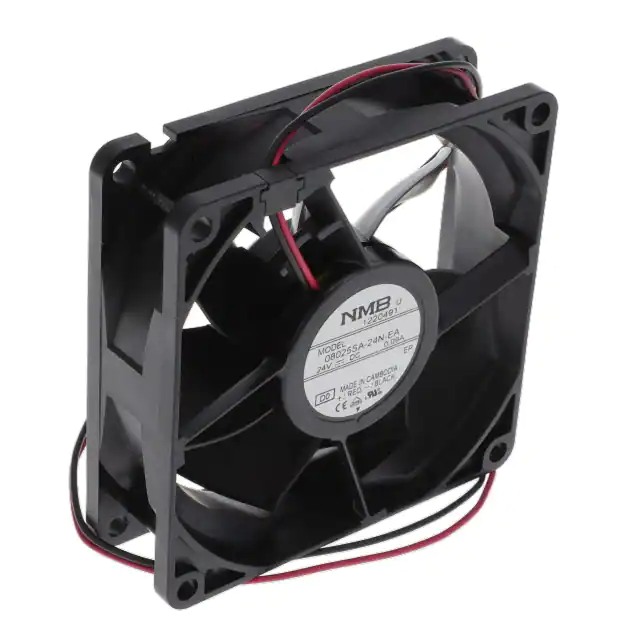

08025SA-24N-EA-D0FAN AXIAL 80X25MM 24VDC WIRE |
573 | - |
|
数据表 |
08025SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 30.0dB | 1.9 W | - | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD4020-24HBFAN AXIAL 40X20MM 24VDC WIRE |
8,004 | - |
|
数据表 |
OD4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 9.0 CFM (0.252m³/min) | 0.320 in H2O (79.7 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 32.1dB(A) | 1.72 W | CE, cURus, TUV | 8190 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
DB0301005H1A-2T0FAN BLOWER 30X10MM 5VDC WIRE |
547 | - |
|
数据表 |
Slim-Line | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 1.1 CFM (0.031m³/min) | 0.220 in H2O (54.8 Pa) | Ball | 0.019 lb (8.62 g) | Blower | - | 10.00mm | 28.0dB(A) | 1.1 W | - | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|

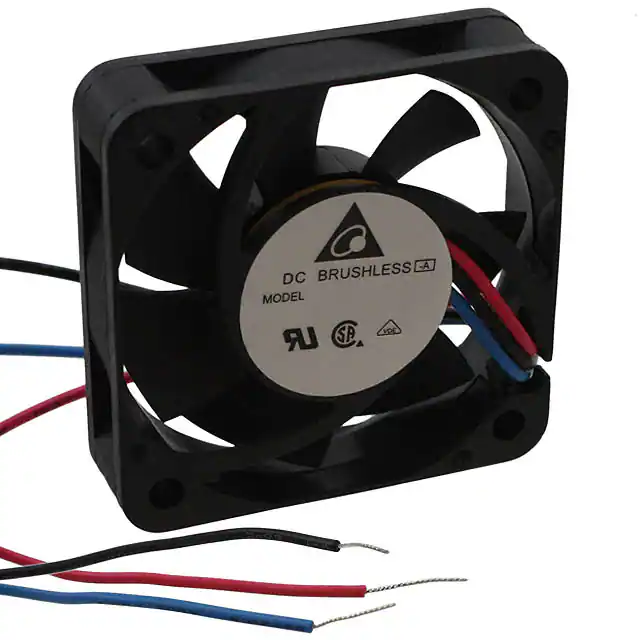

ASB0412VHA-AF00FAN AXIAL 40X10MM 12VDC WIRE |
2,815 | - |
|
数据表 |
ASB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 9.5 CFM (0.266m³/min) | 0.253 in H2O (63.0 Pa) | Sleeve | 0.03 lb (13.61 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 32.5dB(A) | 960 mW | CE, CSA, UL, VDE | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MF60252V1-1000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
1,217 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | 0.101 lb (45.81 g) | Tubeaxial | Auto Restart | 25.00mm | 27.0dB(A) | 1.2 W | cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD3010-05MBFAN AXIAL 30X10.2MM 5VDC WIRE |
3,367 | - |
|
数据表 |
OD3010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 4.0 CFM (0.112m³/min) | 0.180 in H2O (45.0 Pa) | Ball | - | Tubeaxial | - | 10.20mm | 28.4dB(A) | - | CE, cURus | 9000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
MF60252V3-1000U-A99FAN AXIAL 60X25MM 24VDC WIRE |
1,378 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | 0.101 lb (45.81 g) | Tubeaxial | Auto Restart | 25.00mm | 16.7dB(A) | 530 mW | cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF25060V2-1000U-A99FAN AXIAL 25X6.5MM 5VDC WIRE |
3,985 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 2.2 CFM (0.061m³/min) | 0.160 in H2O (40.0 Pa) | Vapo-Bearing™ | 0.012 lb (5.44 g) | Tubeaxial | Auto Restart | 6.50mm | 18.0dB(A) | 380 mW | cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

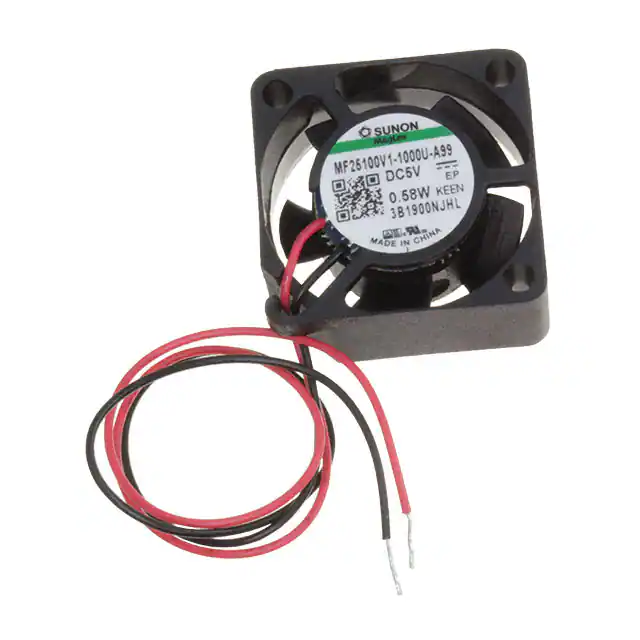

MF25100V1-1000U-A99FAN AXIAL 25X10MM VAPO 5VDC WIRE |
3,801 | - |
|
数据表 |
MagLev® MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | 0.016 lb (7.26 g) | Tubeaxial | Auto Restart | 10.00mm | 23.0dB(A) | 530 mW | cURus, TUV | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF25100V2-1000U-A99FAN AXIAL 25X10MM VAPO 5VDC WIRE |
1,962 | - |
|
数据表 |
MagLev® MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 3.0 CFM (0.084m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | 0.016 lb (7.26 g) | Tubeaxial | Auto Restart | 10.00mm | 16.0dB(A) | 330 mW | cURus, TUV | 9800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF35100V1-1000U-A99FAN AXIAL 35X10MM VAPO 5VDC WIRE |
413 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 7.2 CFM (0.202m³/min) | 0.220 in H2O (55.0 Pa) | Vapo-Bearing™ | 0.024 lb (10.89 g) | Tubeaxial | Auto Restart | 10.00mm | 28.0dB(A) | 680 mW | cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
