直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0924MFAN AXIAL 92X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Tray | Active | 24VDC | Square - 92mm L x 92mm H | 43.8 CFM (1.23m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.219 lb (99.34 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 30.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 2450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-6025BG-135-253-22DC AXIAL FAN, 60 MM SQUARE, 25 M |
0 | - |
|
数据表 |
CFM-60BG | Box | Active | 12VDC | Square - 60mm L x 60mm H | 14.7 CFM (0.412m³/min) | 0.150 in H2O (37.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 25.3dB(A) | 0.72 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
MD4028W12B-FSRFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
MD4028 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | 0.111 lb (50.35 g) | Tubeaxial | Thermal Overload Protector (TOP) | 28.00mm | - | - | cUL, TUV, UL | - | - | 2 Wire Leads | - |
|
CFM-8025V-442-435FAN AXIAL 80X25MM 48VDC WIRE |
0 | - |
|
数据表 |
CFM-80V | Tray | Obsolete | 48VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | omniCOOL™ Magnetic Sleeve | 0.201 lb (91.17 g) | Tubeaxial | Auto Restart | 25.00mm | 43.5dB(A) | 5.09 W | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
04520GA-24L-AA-00FAN BLOWER 45X20MM 24VDC WIRE |
0 | - |
|
数据表 |
04520GA | Bulk | Active | 24VDC | Square/Rounded - 45mm L x 45mm H | - | - | Ball | - | Blower | Auto Restart | 20.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
04520GA-12L-AA-00FAN BLOWER 45X20MM 12VDC WIRE |
0 | - |
|
数据表 |
04520GA | Bulk | Active | 12VDC | Square/Rounded - 45mm L x 45mm H | 4.2 CFM (0.118m³/min) | 0.400 in H2O (99.6 Pa) | Ball | - | Blower | Auto Restart | 20.00mm | 27.0dB | 1.08 W | - | 6000 RPM | - | 2 Wire Leads | - |
|
|
04520GA-12M-AA-00FAN BLOWER 45X20MM 12VDC WIRE |
0 | - |
|
数据表 |
04520GA | Bulk | Active | 12VDC | Square/Rounded - 45mm L x 45mm H | 4.9 CFM (0.137m³/min) | 0.600 in H2O (149.5 Pa) | Ball | - | Blower | Auto Restart | 20.00mm | 32.0dB | 1.8 W | - | 7000 RPM | - | 2 Wire Leads | - |
|
|
04520GA-12N-AA-00FAN BLOWER 45X20MM 12VDC WIRE |
0 | - |
|
数据表 |
04520GA | Bulk | Active | 12VDC | Square/Rounded - 45mm L x 45mm H | 5.6 CFM (0.157m³/min) | 0.760 in H2O (189.3 Pa) | Ball | - | Blower | Auto Restart | 20.00mm | 35.0dB | 2.04 W | - | 7700 RPM | - | 2 Wire Leads | - |
-F.jpg)
|

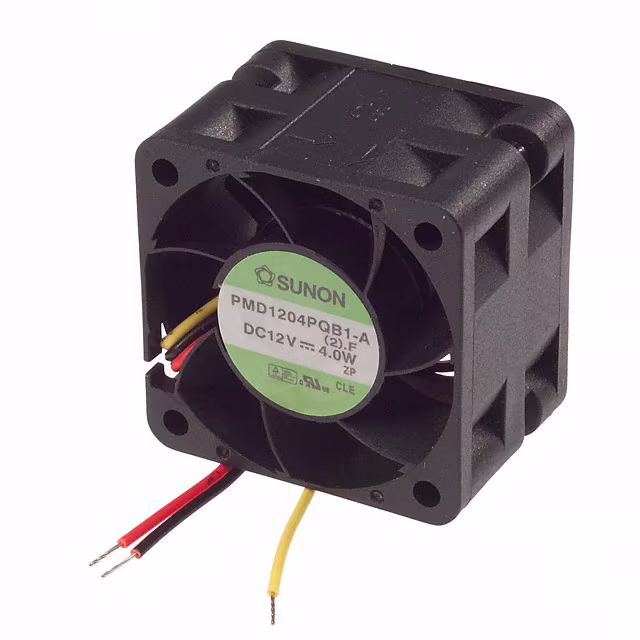

PMD1204PQB1-A (2) FFAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
PMD | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 19.0 CFM (0.532m³/min) | 0.800 in H2O (199.3 Pa) | Ball | 0.088 lb (39.92 g) | Tubeaxial | Speed Sensor (Tach) | 28.00mm | 45.0dB(A) | 4 W | CE, CUR, TUV, UL | 11300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
BM4515-04W-B50-L00FAN BLOWER 44X15MM 12VDC WIRE |
0 | - |
|
数据表 |
BM | Box | Obsolete | 12VDC | Rectangular/Rounded - 44mm L x 45mm H | 3.5 CFM (0.098m³/min) | 0.803 in H2O (200.0 Pa) | Ball | 0.055 lb (24.95 g) | Blower | - | 15.00mm | 43.0dB | 2.28 W | CE, CSA, UL, VDE | 7500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
DC0802024U2B-3T0FAN 80X20MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 51.2 CFM (1.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 43.0dB(A) | 7.2 W | CE, cURus | 4300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
YW04020005LL-N-12FAN AXIAL 40X20MM 5VDC WIRE |
20 | - |
|
数据表 |
YW04020-N | Box | Active | 5VDC | Square - 40mm L x 40mm H | 6.1 CFM (0.171m³/min) | 0.111 in H2O (27.6 Pa) | Sintec | - | Tubeaxial | - | 20.00mm | 17.0dB(A) | 300 mW | - | 4500 RPM | - | 2 Wire Leads | - |
|
CFM-9225V-345-460FAN AXIAL 92X25MM 48VDC WIRE |
0 | - |
|
数据表 |
CFM-92V | Tray | Obsolete | 48VDC | Square - 92mm L x 92mm H | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | omniCOOL™ Magnetic Sleeve | 0.234 lb (106.14 g) | Tubeaxial | Auto Restart | 25.00mm | 46.0dB(A) | 6.92 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD9220-12MBFAN AXIAL 92X20MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9220 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 28.0 CFM (0.784m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | - | 20.00mm | 31.0dB | - | cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD9220-24HBFAN AXIAL 92X20MM 24VDC WIRE |
0 | - |
|
数据表 |
OD9220 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.0 CFM (0.896m³/min) | 0.125 in H2O (31.1 Pa) | Ball | - | Tubeaxial | - | 20.00mm | 33.0dB | - | cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD9220-24MBFAN AXIAL 92X20MM 24VDC WIRE |
0 | - |
|
数据表 |
OD9220 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 28.0 CFM (0.784m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | - | 20.00mm | 31.0dB | - | cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD9225-12HHBFAN AXIAL 92.5X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 65.7 CFM (1.84m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 43.0dB | 3 W | cURus, TUV | 3575 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
OD9225-24HHBFAN AXIAL 92.5X25MM 24VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 24VDC | Square - 92.5mm L x 92.5mm H | - | - | Ball | - | Tubeaxial | - | 25.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
OD4028-05MBDC FAN 5V 40X40X28MM |
0 | - |
|
数据表 |
OD4028 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 9.0 CFM (0.252m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 28.00mm | 29.0dB(A) | - | cURus, TUV | 6500 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
OD4028-05LBDC FAN 5V 40X40X28MM |
0 | - |
|
数据表 |
OD4028 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 7.0 CFM (0.196m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 28.00mm | 25.0dB(A) | - | cURus, TUV | 5000 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
