直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR8025M12B1-FSRFAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
MR8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 52.0 CFM (1.46m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.119 lb (53.98 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 38.1dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 3 Wire Leads | - |
|
|
MR8025M12B2-FSRFAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
MR8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 52.0 CFM (1.46m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.119 lb (53.98 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 38.1dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 3 Wire Leads | - |
|
|
MR8025M12B-FSRFAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
MR8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 52.0 CFM (1.46m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.119 lb (53.98 g) | Tubeaxial | Auto Restart | 25.00mm | 38.1dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 2 Wire Leads | - |
|
|
MR8025M24B1-FSRFAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
MR8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 52.0 CFM (1.46m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.119 lb (53.98 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 38.1dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 3 Wire Leads | - |
|
|
MR8025M24B2-FSRFAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
MR8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 52.0 CFM (1.46m³/min) | 0.210 in H2O (52.3 Pa) | Ball | 0.119 lb (53.98 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 38.1dB(A) | - | CE, cUL, TUV, UL | 3600 RPM | - | 3 Wire Leads | - |
|
CBM-979433S-130-507-20FAN BLOWER 97X33MM 12VDC WIRE |
0 | - |
|
数据表 |
CBM-97S | Box | Active | 12VDC | Rectangular/Rounded - 97mm L x 94.8mm H | 18.1 CFM (0.507m³/min) | 0.400 in H2O (99.6 Pa) | Sleeve | - | Blower | Auto Restart, Speed Sensor (Tach) | 33.00mm | 43.5dB(A) | 6.48 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

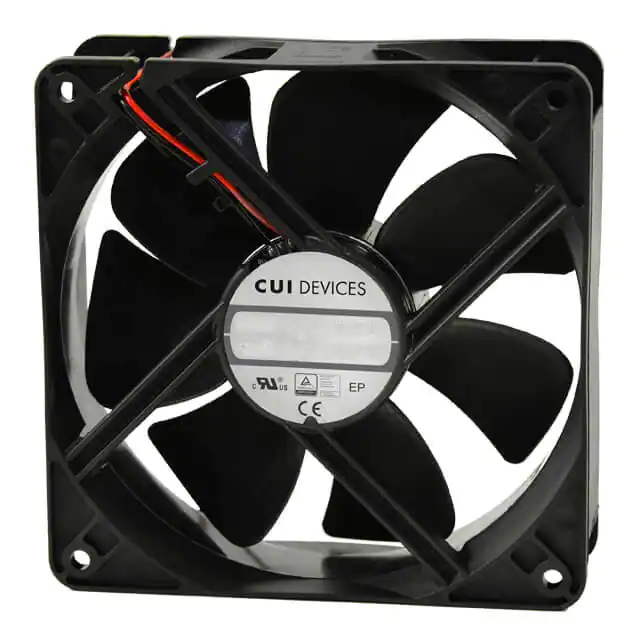

CFM-A238V-321-370-11FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Obsolete | 48VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.481 lb (218.18 g) | Tubeaxial | Auto Restart | 38.00mm | 37.0dB(A) | 3.81 W | CE, cURus, TUV | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-A238V-326-440-11FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Obsolete | 48VDC | Square - 120mm L x 120mm H | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.481 lb (218.18 g) | Tubeaxial | Auto Restart | 38.00mm | 44.0dB(A) | 6.62 W | CE, cURus, TUV | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CBM-7530BF-220-282-22DC BLOWER, 49.2 X 49.8 X 20 MM, |
0 | - |
|
数据表 |
CBM-75BF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 6.6 CFM (0.185m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 24.50mm | 28.2dB(A) | 1.44 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CBM-7530BF-120-282-22DC BLOWER, 75.7 X 75.7 X 30 MM, |
0 | - |
|
数据表 |
CBM-75BF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 6.6 CFM (0.185m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 30.00mm | 28.2dB(A) | 0.84 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
05115GS-24N-ALD-0DC BLOWER |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
05115GS-24N-ATD-0DC BLOWER |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DC0401512H2B-3T3FAN 40X15MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.5 CFM (0.294m³/min) | 0.380 in H2O (94.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 36.0dB(A) | 1.92 W | CE, cURus, TUV | 8600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0401512L2B-3T3FAN 40X15MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 6.7 CFM (0.188m³/min) | 0.200 in H2O (49.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 28.0dB(A) | 960 mW | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0602012L2B-3T3FAN 60X20MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 14.8 CFM (0.414m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 26.0dB(A) | 1.08 W | CE, cURus, TUV | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0602012J2B-3T3FAN 60X20MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 13.5 CFM (0.378m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 24.0dB(A) | 840 mW | CE, cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0802524M2B-2T2FAN 80X25MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 69.9 CFM (1.96m³/min) | 0.260 in H2O (64.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.40mm | 44.0dB(A) | 6 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0401512M2B-3T3FAN 40X15MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 8.3 CFM (0.232m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 1.44 W | CE, cURus, TUV | 7300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0802524L2B-2T2FAN 80X25MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 66.4 CFM (1.86m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.40mm | 42.0dB(A) | 4.8 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0802524I2B-2T2FAN 80X25MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.40mm | 37.0dB(A) | 3.12 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
