直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
06020SA-12M-EL-00FAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
06020SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 18.4 CFM (0.515m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | 28.5dB | 960 mW | - | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
06020SA-12L-AL-00FAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
06020SA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 16.6 CFM (0.465m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | 26.0dB | 720 mW | - | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0702524H2B-2T2FAN 70X25MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 39.9 CFM (1.13m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 37.0dB(A) | 3.12 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0702512M2B-BT4FAN 70X25MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 35.6 CFM (0.997m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 32.0dB(A) | 1.08 W | CE, cURus, TUV | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0802024H2B-BT0FAN 80X20MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 40.2 CFM (1.13m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 36.0dB(A) | 5.76 W | CE, cURus | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0702548M2B-2T2FAN 70X25MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 35.6 CFM (0.997m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 32.0dB(A) | 4.32 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0702524U2B-2T2FAN 70X25MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 54.8 CFM (1.53m³/min) | 0.500 in H2O (124.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 45.0dB(A) | 6.48 W | CE, cURus | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
CFM-8038B-130-387-20FAN AXIAL 80X37.6MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80B | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.1 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.60mm | 38.7dB(A) | 2.52 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

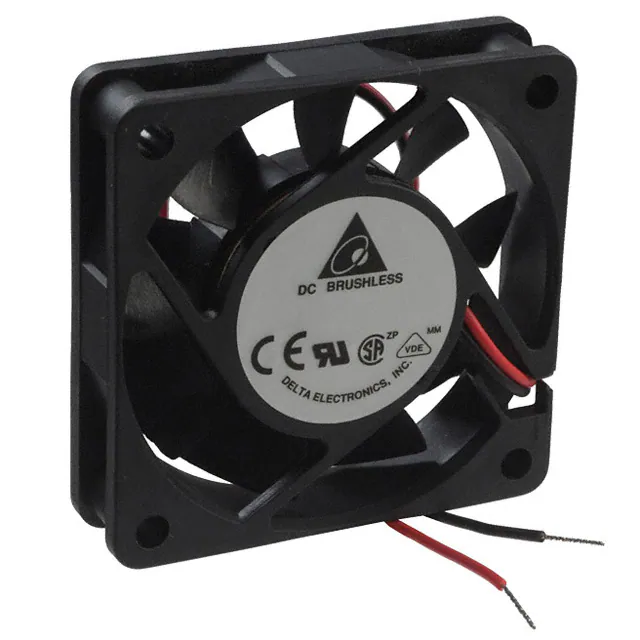

AFB0605HBFAN AXIAL 60X15MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
AFB | Tray | Obsolete | 5VDC | Square - 60mm L x 60mm H | 15.4 CFM (0.431m³/min) | 0.155 in H2O (38.6 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 32.0dB(A) | 1.5 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0605MBFAN AXIAL 60X15MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 5VDC | Square - 60mm L x 60mm H | 13.4 CFM (0.375m³/min) | 0.119 in H2O (29.6 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 20.0dB(A) | 1 W | CE, CSA, UL, VDE | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0605LBFAN AXIAL 60X15MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 5VDC | Square - 60mm L x 60mm H | 11.5 CFM (0.322m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 24.0dB(A) | 650 mW | CE, CSA, UL, VDE | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0624VHBFAN AXIAL 60X15MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 19.4 CFM (0.543m³/min) | 0.240 in H2O (59.8 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 37.0dB(A) | 2.64 W | CE, CSA, UL, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

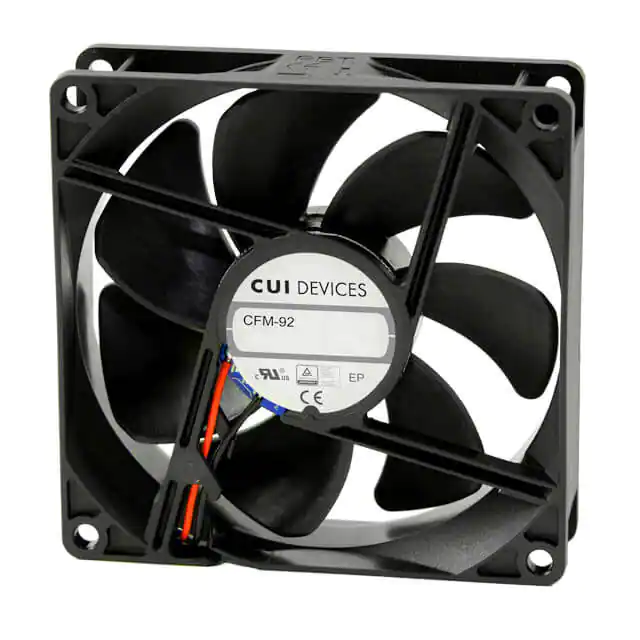

CFM-9225V-124-280-11FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92V | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | 0.203 lb (92.08 g) | Tubeaxial | Auto Restart | 25.00mm | 28.0dB(A) | 1.05 W | CE, cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
KD1206PKB3.(2).GNFAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | - | 20.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
EF60202B2-000U-G9924VDC FAN 60X20MM ALARM |
0 | - |
|
数据表 |
EF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 29.0dB(A) | 0.92 W | CCC, CE, cURus, TUV, UKCA | 3700 RPM | - | 3 Wire Leads | - |
|
|
EF60202B1-000U-G9924VDC FAN 60X20MM ALARM |
0 | - |
|
数据表 |
EF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 34.5dB(A) | 1.44 W | CCC, CE, cURus, TUV, UKCA | 4500 RPM | - | 3 Wire Leads | - |
|
|
EF60202B3-000U-G9924VDC FAN 60X20MM ALARM |
0 | - |
|
数据表 |
EF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 14.1 CFM (0.395m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 24.5dB(A) | 0.56 W | CCC, CE, cURus, TUV, UKCA | 3000 RPM | - | 3 Wire Leads | - |
|
|
DC0601012U2B-2T2FAN 60X10MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 19.9 CFM (0.557m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 37.0dB(A) | 2.4 W | CE, cURus, TUV | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
DC0251012L2B-2T0FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 0.018 lb (8.16 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 20.0dB(A) | 600 mW | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0701512J2B-3T3FAN 70X15MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 21.1 CFM (0.591m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 27.0dB(A) | 1.2 W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
