直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD4028-05HBDC FAN 5V 40X40X28MM |
0 | - |
|
数据表 |
OD4028 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.0 CFM (0.280m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 28.00mm | 32.0dB(A) | - | cURus, TUV | 7500 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
PSD1204PKB3-A(2).Z.GNFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® PSD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 20.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
05115GS-24M-AAD-0BLOWER 51MM X 15MM 24VDC STD 2 W |
0 | - |
|
数据表 |
05115GS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
05115GS-12N-AAD-0BLOWER 51MM X 15MM 12VDC STD 2 W |
0 | - |
|
数据表 |
05115GS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D3006H12D-RSRFAN AXIAL 30X6.1MM 12VDC WIRE |
0 | - |
|
数据表 |
D3006 | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | - | - | Sleeve | - | Tubeaxial | Thermal Overload Protector (TOP) | 6.10mm | - | - | - | - | - | 2 Wire Leads | - |
6025BF).jpg)
|
CFM-6025BF-265-408-22FAN AXIAL 60X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 31.1 CFM (0.871m³/min) | 0.370 in H2O (92.2 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 40.9dB(A) | 4.08 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
G6015E12B1-RHRFAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
G6015-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 5200 RPM | - | 3 Wire Leads | - |
|
|
G6015L24B1-RGRFAN AXIAL 60X15MM 24VDC WIRE |
0 | - |
|
数据表 |
G6015-G | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 14.0 CFM (0.392m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 15.00mm | 25.0dB(A) | - | CE, cUL, TUV, UL | 3400 RPM | - | 3 Wire Leads | - |
|

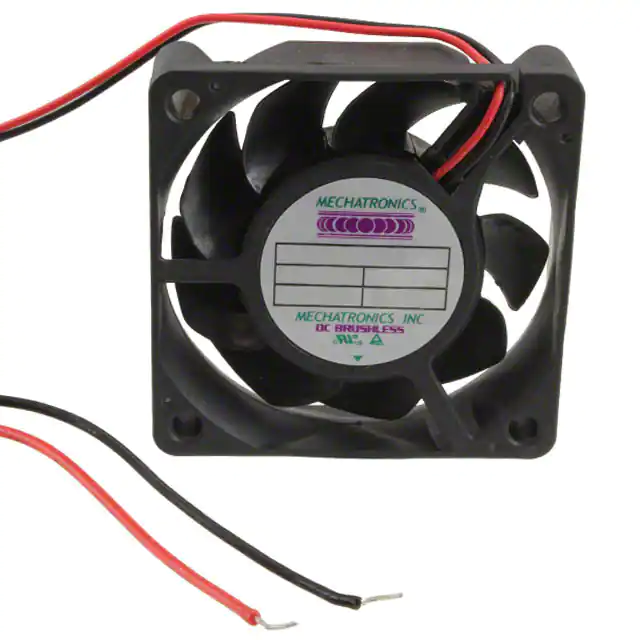

G6015M24B1-RHRFAN AXIAL 60X15MM 24VDC WIRE |
0 | - |
|
数据表 |
G6015-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 16.0 CFM (0.448m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 30.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 3 Wire Leads | - |
|
|
G6015S12B2-RGRFAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
G6015-G | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 12.0 CFM (0.336m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 15.00mm | 21.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 3 Wire Leads | - |
|
|
G6015S12B2-RHRFAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
G6015-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 12.0 CFM (0.336m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.111 lb (50.35 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 22.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 3 Wire Leads | - |
|
|
DC0501012M2B-3T3FAN 50X10MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 30.0dB(A) | 960 mW | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0501012H2B-3T3FAN 50X10MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 35.0dB(A) | 1.2 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
G6015H24B2-RHR-WSFAN AXIAL 60X15MM 24VDC WIRE |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CBM-979433B-225-467FAN BLOWER 97.68X32.7MM 24VDC |
0 | - |
|
数据表 |
CBM-97B-2 | Box | Active | 24VDC | Rectangular/Rounded - 97.68mm L x 94.18mm H | 17.1 CFM (0.479m³/min) | 0.460 in H2O (114.6 Pa) | Ball | - | Blower | Auto Restart | 32.70mm | 46.8dB(A) | 4.8 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-979433B-230-507FAN BLOWER 97.68X32.7MM 24VDC |
0 | - |
|
数据表 |
CBM-97B-2 | Box | Active | 24VDC | Rectangular/Rounded - 97.68mm L x 94.18mm H | 20.5 CFM (0.574m³/min) | 0.660 in H2O (164.4 Pa) | Ball | - | Blower | Auto Restart | 32.70mm | 50.7dB(A) | 8.4 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-979433B-125-467FAN BLOWER 97.68X32.7MM 12VDC |
0 | - |
|
数据表 |
CBM-97B-2 | Box | Active | 12VDC | Rectangular/Rounded - 97.68mm L x 94.18mm H | 17.1 CFM (0.479m³/min) | 0.460 in H2O (114.6 Pa) | Ball | - | Blower | Auto Restart | 32.70mm | 46.8dB(A) | 4.68 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0702548M2B-3T0FAN 70X25MM 48VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 35.6 CFM (0.997m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 32.0dB(A) | 4.32 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AFB0724HH-AR00FAN AXIAL 70X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Not For New Designs | 24VDC | Square - 70mm L x 70mm H | 44.0 CFM (1.23m³/min) | 0.311 in H2O (77.5 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 44.0dB(A) | 4.32 W | CE, CSA, UL, VDE | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CBM-9330C-240-507-22DC BLOWER, 92.3 X 92.6 X 30 MM, |
0 | - |
|
数据表 |
CBM-93C | Box | Active | 24VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 21.7 CFM (0.608m³/min) | 1.140 in H2O (284.0 Pa) | omniCOOL™ Magnetic Sleeve | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 29.50mm | 47.6dB(A) | 7.2 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
