直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-7025B-150-443-20FAN AXIAL 70X25.2MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-70B | Box | Active | 12VDC | Square - 70mm L x 70mm H | 43.0 CFM (1.20m³/min) | 0.340 in H2O (84.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.20mm | 41.9dB(A) | 6 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-7025B-250-443FAN AXIAL 70X25.2MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-70B | Box | Active | 24VDC | Square - 70mm L x 70mm H | 43.0 CFM (1.20m³/min) | 0.340 in H2O (84.7 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.20mm | 41.9dB(A) | 5.52 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CBM-A232S-120-457-22FAN BLOWER 119.3X32MM 12VDC |
0 | - |
|
数据表 |
CBM-120S | Box | Active | 12VDC | Square/Rounded - 119.3mm L x 119mm H | 18.5 CFM (0.518m³/min) | 0.600 in H2O (149.5 Pa) | Sleeve | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.00mm | 45.8dB(A) | 4.56 W | CE, cURus, TUV | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
(7025B).jpg)
|
CFM-7025B-140-394-22FAN AXIAL 70X25.2MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-70B | Box | Active | 12VDC | Square - 70mm L x 70mm H | 34.5 CFM (0.966m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.20mm | 37.1dB(A) | 3.24 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-7025B-130-332-22FAN AXIAL 70X25.2MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-70B | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.9 CFM (0.725m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.20mm | 30.8dB(A) | 1.44 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
CBM-7525B-235-416-22DC BLOWER, 75.2 X 74.2 X 25 MM, |
0 | - |
|
数据表 |
CBM-75B-2 | Box | Active | 24VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 10.2 CFM (0.286m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 41.6dB(A) | 3.36 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CBM-7525B-135-416-22DC BLOWER, 75.2 X 74.2 X 25 MM, |
0 | - |
|
数据表 |
CBM-75B-2 | Box | Active | 12VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 10.2 CFM (0.286m³/min) | 0.550 in H2O (137.0 Pa) | Ball | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 41.6dB(A) | 3.36 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CBM-7525B-225-301-22DC BLOWER, 75.2 X 74.2 X 25 MM, |
0 | - |
|
数据表 |
CBM-75B-2 | Box | Active | 24VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 7.4 CFM (0.207m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 30.1dB(A) | 1.44 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CBM-7525B-125-301-22DC BLOWER, 75.2 X 74.2 X 25 MM, |
0 | - |
|
数据表 |
CBM-75B-2 | Box | Active | 12VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 7.4 CFM (0.207m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 30.1dB(A) | 1.2 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
CFM-A225V-122-340-11FAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 75.0 CFM (2.10m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | 0.357 lb (161.93 g) | Tubeaxial | Auto Restart | 25.00mm | 34.0dB(A) | 1.94 W | CE, cURus, TUV | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0801524H2B-3T0FAN 80X15MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 37.6 CFM (1.05m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 36.0dB(A) | 3.84 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
05020GA-24M-AA-00FAN BLOWER 50X20MM 24VDC WIRE |
0 | - |
|
数据表 |
05020GA | Bulk | Active | 24VDC | Square/Rounded - 50mm L x 50mm H | 5.6 CFM (0.157m³/min) | 0.740 in H2O (184.3 Pa) | Ball | - | Blower | Auto Restart | 20.00mm | 32.0dB | 1.92 W | - | 5600 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
05020GA-05K-AA-00DC BLOWER |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DC0502024L2B-BT0FAN 50X20MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 14.8 CFM (0.414m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 32.0dB(A) | 3.6 W | CE, cURus | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

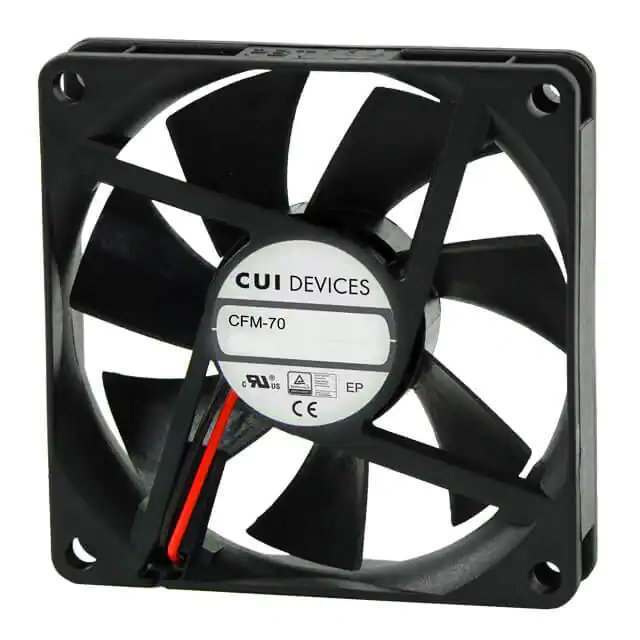

CFM-7020V-146-415-11FAN AXIAL 70X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-70V | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 43.0 CFM (1.20m³/min) | 0.280 in H2O (69.7 Pa) | omniCOOL™ Magnetic Sleeve | 0.176 lb (79.83 g) | Tubeaxial | Auto Restart | 20.00mm | 41.5dB(A) | 3.94 W | CE, cURus, TUV | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0701512J2B-BT4FAN 70X15MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 21.1 CFM (0.591m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 27.0dB(A) | 1.2 W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0701512L2B-BT4FAN 70X15MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.7 CFM (0.720m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 31.0dB(A) | 1.44 W | CE, cURus, TUV | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0802012M2B-BT4FAN 80X20MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 36.6 CFM (1.03m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 34.0dB(A) | 2.16 W | CE, cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0501524J2B-3T3FAN 50X15MM 24VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 9.9 CFM (0.277m³/min) | 0.080 in H2O (19.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 24.0dB(A) | 1.44 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0802512J2B-3T3FAN 80X25MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 3.84 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
