直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G4010H24B1-RSR-WSFAN AXIAL 40X10.3MM 24VDC WIRE |
0 | - |
|
数据表 |
G4010 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 9.0 CFM (0.252m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.026 lb (11.79 g) | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 10.30mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 4 Wire Leads | - |
|
|
G4010L12B1-RSR-WSFAN AXIAL 40X10.3MM 12VDC WIRE |
0 | - |
|
数据表 |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.026 lb (11.79 g) | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 10.30mm | 22.0dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 4 Wire Leads | - |
|
|
G4010M05B2-RSR-WSFAN AXIAL 40X10.3MM 5VDC WIRE |
0 | - |
|
数据表 |
G4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 7.0 CFM (0.196m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.026 lb (11.79 g) | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 10.30mm | 28.0dB(A) | - | CE, cUL, TUV, UL | 6000 RPM | - | 4 Wire Leads | - |
|
KDE0501PFB3-8(2).N.VFAN AXIAL 20X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
KDE | - | Obsolete | 5VDC | Square - 20mm L x 20mm H | 0.860 CFM (0.024m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 0.014 lb (6.35 g) | Tubeaxial | - | 10.00mm | 20.0dB(A) | 400 mW | CE, CUR, TUV, UL | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
V.jpg)
|
KDE0501PDB1-8(2)(V)FAN AXIAL 20X8MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
KDE | - | Obsolete | 5VDC | Square - 20mm L x 20mm H | 1.9 CFM (0.053m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.011 lb (4.99 g) | Tubeaxial | - | 8.00mm | 29.0dB(A) | 1 W | CE, CUR, TUV, UL | 15000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
V.jpg)
|
KDE0517PDB2-8(2)(V)FAN AXIAL 17X8MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
KDE | - | Obsolete | 5VDC | Square - 17mm L x 17mm H | 0.812 CFM (0.023m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.009 lb (4.08 g) | Tubeaxial | - | 8.00mm | 27.0dB(A) | 600 mW | CE, CUR, TUV, UL | 15000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
V.jpg)
|

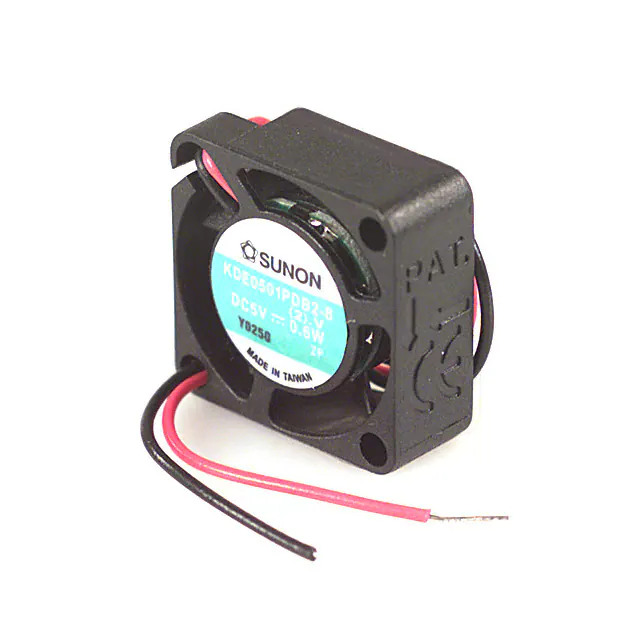

KDE0501PDB2-8(2)(V)FAN AXIAL 20X8MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
KDE | - | Obsolete | 5VDC | Square - 20mm L x 20mm H | 1.6 CFM (0.045m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 0.011 lb (4.99 g) | Tubeaxial | - | 8.00mm | 26.5dB(A) | 600 mW | CE, CUR, TUV, UL | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
(V).jpg)
|

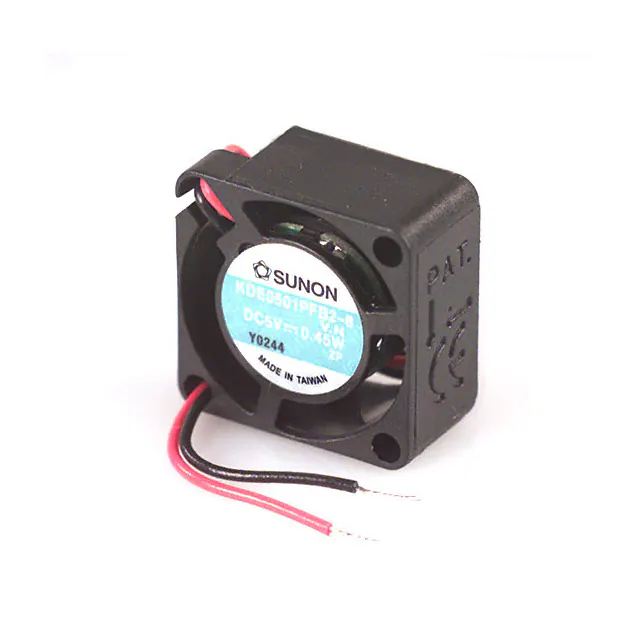

KDE0501PFB2-8.N(2)(V)FAN AXIAL 20X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
KDE | - | Obsolete | 5VDC | Square - 20mm L x 20mm H | 1.5 CFM (0.042m³/min) | 0.150 in H2O (37.4 Pa) | Ball | 0.015 lb (6.8 g) | Tubeaxial | - | 10.00mm | 22.0dB(A) | 600 mW | CE, CUR, TUV, UL | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

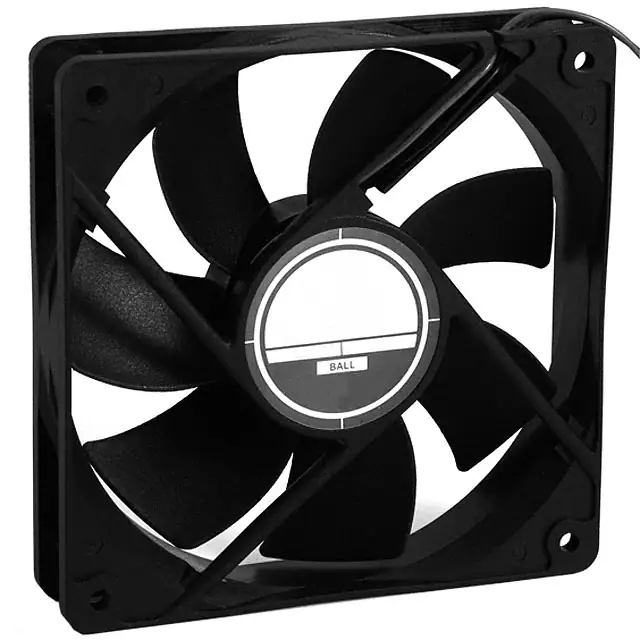

OD1225-48HSSFAN AXIAL 120X25MM 48VDC WIRE |
0 | - |
|
数据表 |
OD1225 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 86.0 CFM (2.41m³/min) | 0.240 in H2O (59.8 Pa) | Sealed Sleeve | 0.341 lb (154.67 g) | Tubeaxial | Auto Restart | 25.00mm | 42.0dB(A) | 4.5 W | cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD3006-12MB01AFAN AXIAL 30X6MM BALL 12VDC WIRE |
0 | - |
|
数据表 |
OD3006 | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 6.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
OD3010-05LLB01AFAN AXIAL 30X10.2MM 5VDC WIRE |
0 | - |
|
数据表 |
OD3010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 10.20mm | - | - | cURus, TUV | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

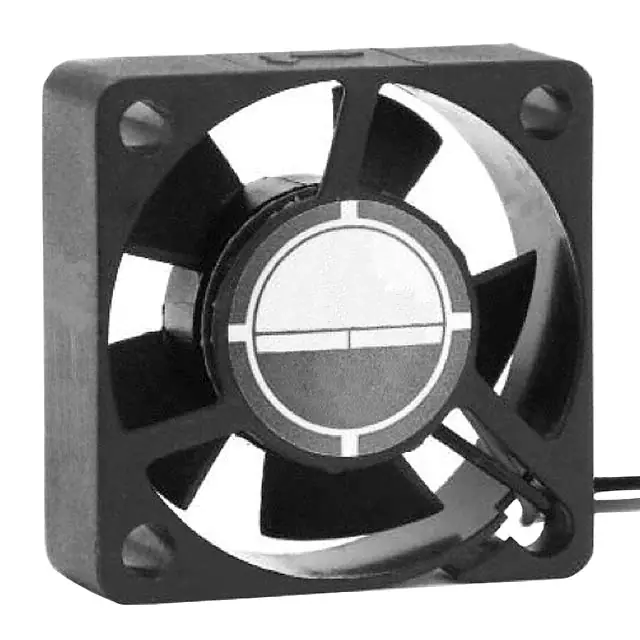

OD3010-12HB5FAN AXIAL 30X10.2MM 12VDC WIRE |
0 | - |
|
数据表 |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 5.0 CFM (0.140m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | PWM Control | 10.20mm | 30.2dB(A) | - | cURus, TUV | 11000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
|
OD3010-12LB5FAN AXIAL 30X10.2MM 12VDC WIRE |
0 | - |
|
数据表 |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 3.5 CFM (0.098m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | PWM Control | 10.20mm | 23.1dB(A) | - | cURus, TUV | 8000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
|
OD3010-12LLBFAN AXIAL 30X10.2MM 12VDC WIRE |
0 | - |
|
数据表 |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 3.5 CFM (0.098m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | - | 10.20mm | 25.0dB | - | cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD3010-12LLB01AFAN AXIAL 30X10.2MM 12VDC WIRE |
0 | - |
|
数据表 |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 3.5 CFM (0.098m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Speed Sensor (Tach) | 10.20mm | 25.0dB | - | cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
OD3010-12MB5FAN AXIAL 30X10.2MM 12VDC WIRE |
0 | - |
|
数据表 |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 4.0 CFM (0.112m³/min) | 0.180 in H2O (45.0 Pa) | Ball | - | Tubeaxial | PWM Control | 10.20mm | 28.4dB(A) | - | cURus, TUV | 9000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
OD3015-05HB01AFAN AXIAL 30X15MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD3015 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 15.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
|
OD3015-05LB01AFAN AXIAL 30X15MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD3015 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 15.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
|
OD3015-05MB01AFAN AXIAL 30X15MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD3015 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 15.00mm | - | - | - | - | - | 3 Wire Leads | - |
|
|
OD3506-12HB01AFAN AXIAL 35X6MM BALL 12VDC WIRE |
0 | - |
|
数据表 |
OD3506 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 6.00mm | - | - | - | - | - | 3 Wire Leads | - |
