直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
04020VA-12Q-AL-00DC AXIAL FAN |
0 | - |
|
数据表 |
04020VA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 12.5 CFM (0.350m³/min) | 0.570 in H2O (142.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | 42.0dB | 2.52 W | - | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

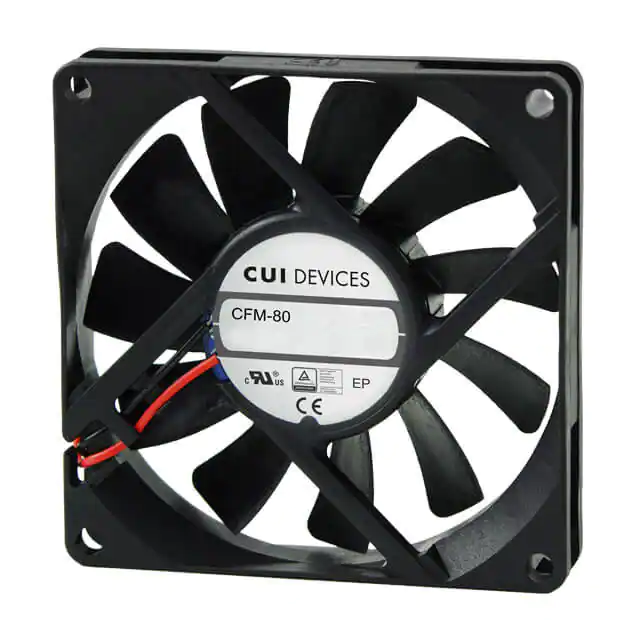

CFM-8025V-142-415-11FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80V | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | omniCOOL™ Magnetic Sleeve | 0.201 lb (91.17 g) | Tubeaxial | Auto Restart | 25.00mm | 41.5dB(A) | 2.76 W | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-8025V-145-431-11FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80V | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 57.0 CFM (1.60m³/min) | 0.350 in H2O (87.2 Pa) | omniCOOL™ Magnetic Sleeve | 0.201 lb (91.17 g) | Tubeaxial | Auto Restart | 25.00mm | 43.1dB(A) | 3.32 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-9225V-139-416-11FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92V | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | 0.234 lb (106.14 g) | Tubeaxial | Auto Restart | 25.00mm | 41.6dB(A) | 3.18 W | CE, cURus, TUV | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-9225V-142-437-11FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92V | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | omniCOOL™ Magnetic Sleeve | 0.234 lb (106.14 g) | Tubeaxial | Auto Restart | 25.00mm | 43.7dB(A) | 3.87 W | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-9225V-145-455-11FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92V | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | omniCOOL™ Magnetic Sleeve | 0.234 lb (106.14 g) | Tubeaxial | Auto Restart | 25.00mm | 45.5dB(A) | 5.12 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0601524J2B-BT0FAN 60X15MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.0 CFM (0.420m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 24.0dB(A) | 1.44 W | CE, cURus | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0601524M2B-BT0FAN 60X15MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 21.7 CFM (0.608m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 2.4 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0601524L2B-BT0FAN 60X15MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 29.0dB(A) | 1.92 W | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0601524H2B-BT0FAN 60X15MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.1 CFM (0.647m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 35.0dB(A) | 2.88 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
DC0301012L2B-2T0FAN AXIAL 30X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 30mm L x 30mm H | 3.0 CFM (0.084m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.023 lb (10.43 g) | Tubeaxial | Locked Rotor Protection | 10.50mm | 17.0dB(A) | 360 mW | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0401012H2B-BT4FAN 40X10MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 7.2 CFM (0.202m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 26.0dB(A) | 720 mW | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0401012M2B-BT4FAN 40X10MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 4.8 CFM (0.134m³/min) | 0.060 in H2O (14.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 21.0dB(A) | 360 mW | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0401012U2B-BT4FAN 40X10MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 9.3 CFM (0.260m³/min) | 0.200 in H2O (49.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 35.0dB(A) | 1.08 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
CFM-A238V-321-370FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Obsolete | 48VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.481 lb (218.18 g) | Tubeaxial | Auto Restart | 38.00mm | 37.0dB(A) | 3.81 W | CE, cURus, TUV | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-A238V-326-440FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Obsolete | 48VDC | Square - 120mm L x 120mm H | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.481 lb (218.18 g) | Tubeaxial | Auto Restart | 38.00mm | 44.0dB(A) | 6.62 W | CE, cURus, TUV | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-A238V-331-480FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
CFM-120V | Tray | Obsolete | 48VDC | Square - 120mm L x 120mm H | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.7 Pa) | omniCOOL™ Magnetic Sleeve | 0.481 lb (218.18 g) | Tubeaxial | Auto Restart | 38.00mm | 48.0dB(A) | 11.21 W | CE, cURus, TUV | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
EF60251B3-1000U-S9912VDC FAN 60X25MM TACH/PWM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 13.9 CFM (0.389m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 20.0dB(A) | 0.46 W | CCC, CE, cURus, TUV, UKCA | 3400 RPM | - | 4 Wire Leads | - |
|
|
EF60251B2-1000U-S9912VDC FAN 60X25MM TACH/PWM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 19.5 CFM (0.546m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 27.0dB(A) | 0.7 W | CCC, CE, cURus, TUV, UKCA | 4500 RPM | - | 4 Wire Leads | - |
|
|
EF60251B1-1000U-S9912VDC FAN 60X25MM TACH/PWM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.220 in H2O (55.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 31.5dB(A) | 0.99 W | CCC, CE, cURus, TUV, UKCA | 5200 RPM | - | 4 Wire Leads | - |
