直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G8015S12B-RGRFAN AXIAL 80X15.3MM 12VDC WIRE |
0 | - |
|
数据表 |
G8015-G | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 26.0 CFM (0.728m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.128 lb (58.06 g) | Tubeaxial | Thermal Overload Protector (TOP) | 15.30mm | 28.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
|
G8015S24B-RGRFAN AXIAL 80X15.3MM 24VDC WIRE |
0 | - |
|
数据表 |
G8015-G | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 26.0 CFM (0.728m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.128 lb (58.06 g) | Tubeaxial | Thermal Overload Protector (TOP) | 15.30mm | 28.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
F6025H24B1-FHRFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 4200 RPM | - | 3 Wire Leads | - |
|
G8015E24B-RGRFAN AXIAL 80X15MM 24VDC WIRE |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

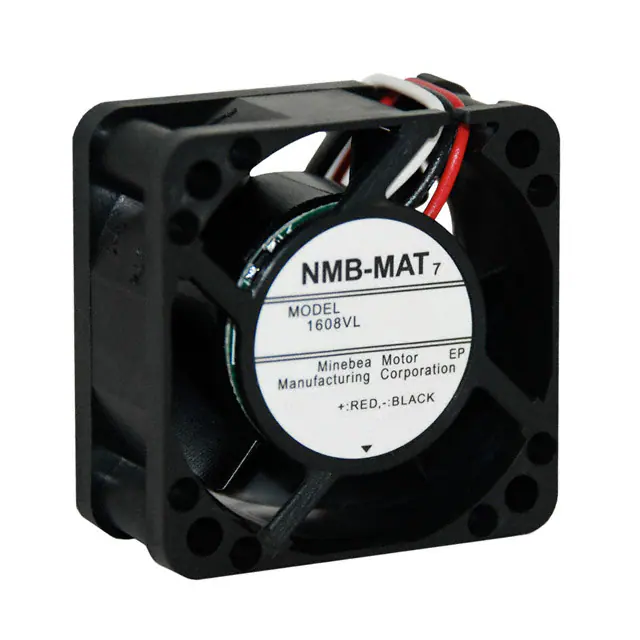

1608VL-05W-B69-B50FAN AXIAL 40.1X20MM 24VDC WIRE |
0 | - |
|
数据表 |
04020VA | Box | Obsolete | 24VDC | Square - 40.1mm L x 40.1mm H | 11.3 CFM (0.316m³/min) | 0.399 in H2O (99.3 Pa) | Ball | 0.088 lb (39.92 g) | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 34.6dB(A) | 2.4 W | CE, UL, VDE | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-12L-AL-00FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
04020VA | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-24K-AL-00FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
04020VA | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-24L-AT-00FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
04020VA | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-12L-AT-00FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
04020VA | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-24L-AL-00FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
04020VA | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-05Q-AT-00FAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
04020VA | Box | Active | 5VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-12K-AT-00FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
04020VA | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | - | - | - | - | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-24Q-AT-00FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
04020VA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 12.4 CFM (0.347m³/min) | 0.570 in H2O (142.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 42.0dB | 2.64 W | - | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-12M-AT-00FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
04020VA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 8.8 CFM (0.246m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 29.0dB | 1.02 W | - | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-12N-AT-00FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
04020VA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.2 CFM (0.286m³/min) | 0.310 in H2O (77.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 32.5dB | 1.32 W | - | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-24M-AT-00FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
04020VA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 8.8 CFM (0.246m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 29.0dB | 1.2 W | - | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-24N-AT-00FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
04020VA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.2 CFM (0.286m³/min) | 0.310 in H2O (77.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 32.5dB | 1.68 W | - | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-24K-AT-00FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
04020VA | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 5.8 CFM (0.163m³/min) | 0.147 in H2O (36.6 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 23.0dB | 768 mW | - | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-24Q-AL-00DC AXIAL FAN |
0 | - |
|
数据表 |
04020VA | Box | Active | 24VDC | Square - 40mm L x 40mm H | 12.5 CFM (0.350m³/min) | 0.570 in H2O (142.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | 42.0dB | 2.64 W | - | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
04020VA-12Q-AT-00DC AXIAL FAN |
0 | - |
|
数据表 |
04020VA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 12.5 CFM (0.350m³/min) | 0.570 in H2O (142.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 42.0dB | 2.52 W | - | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
