直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0501512J2B-3T3FAN 50X15MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 9.9 CFM (0.277m³/min) | 0.080 in H2O (19.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 24.0dB(A) | 720 mW | CE, cURus, TUV | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0401524L2B-BT0FAN 40X15MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 6.7 CFM (0.188m³/min) | 0.200 in H2O (49.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 28.0dB(A) | 1.92 W | CE, cURus | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0602024L2B-BT0FAN 60X20MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 14.8 CFM (0.414m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 26.0dB(A) | 2.16 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0502024M2B-2T2FAN 50X20MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 17.6 CFM (0.493m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 36.0dB(A) | 5.04 W | CE, cURus | 6400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0702548L2B-2T2FAN 70X25MM 48VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 70mm L x 70mm H | 30.0 CFM (0.840m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 27.0dB(A) | 3.36 W | CE, cURus | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
MF50151V2-B00U-A99FAN BLOWER 51.7X15MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MF | Bulk | Obsolete | 12VDC | Square/Rounded - 51.7mm L x 51.6mm H | 3.5 CFM (0.098m³/min) | 0.400 in H2O (99.6 Pa) | Vapo-Bearing™ | 0.067 lb (30.39 g) | Blower | Auto Restart | 15.00mm | 33.1dB(A) | 680 mW | cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AF40101VX-1000U-SL912VDC FAN 40X10MM TACH/PWM IP52 |
0 | - |
|
数据表 |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 10.00mm | 30.7dB(A) | 0.78 W | CCC, CE, cURus, TUV, UKCA | 8000 RPM | - | 4 Wire Leads | IP52 |
|
|
AF40100VX-1000U-SL95VDC FAN 40X10MM TACH/PWM IP52 |
0 | - |
|
数据表 |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 10.00mm | 30.7dB(A) | 0.6 W | CCC, CE, cURus, TUV, UKCA | 8000 RPM | - | 4 Wire Leads | IP52 |
|

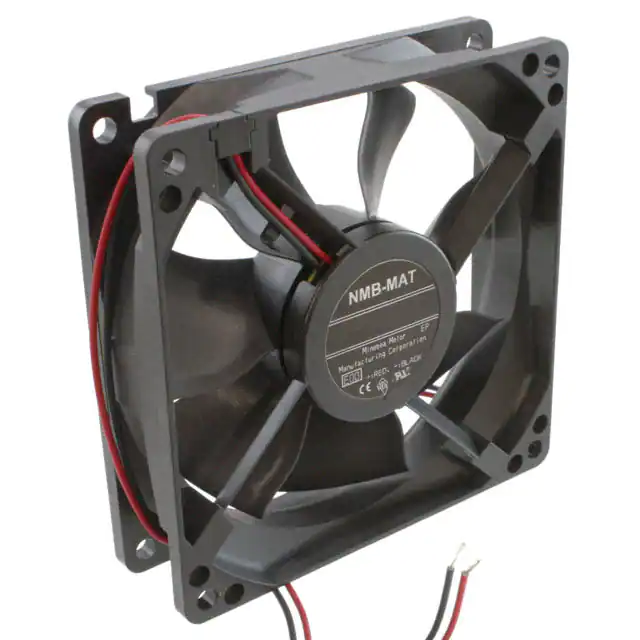

3610SB-05W-B30-E00FAN AXIAL 92X25MM 24VDC WIRE |
21 | - |
|
数据表 |
09225SA | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 41.3 CFM (1.16m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | - | 25.00mm | 28.0dB | 1.2 W | CE, UL, VDE | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MC17080V2-000U-A99FAN AXIAL 17X8MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 17mm L x 17mm H | 0.706 CFM (0.020m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | 0.01 lb (4.54 g) | Tubeaxial | Auto Restart | 8.00mm | 16.0dB(A) | 500 mW | CUR, TUV, UL | 15000 RPM | - | 2 Wire Leads | - |
|
|
DC0601524L2B-2T2FAN 60X15MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 29.0dB(A) | 1.92 W | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0601524J2B-2T2FAN 60X15MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.0 CFM (0.420m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 24.0dB(A) | 1.44 W | CE, cURus | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0601524H2B-2T2FAN 60X15MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 23.1 CFM (0.647m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 35.0dB(A) | 2.88 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0601524M2B-2T2FAN 60X15MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 21.7 CFM (0.608m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 32.0dB(A) | 2.4 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
(7025B).jpg)
|
CFM-7015B-150-406-22FAN AXIAL 70X15.5MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-70B | Box | Active | 12VDC | Square - 70mm L x 70mm H | 32.1 CFM (0.899m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 15.50mm | 40.6dB(A) | 3.96 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
BFB0612H-R00FAN BLOWER 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 6.7 CFM (0.188m³/min) | 0.428 in H2O (106.6 Pa) | Ball | 0.113 lb (51.26 g) | Blower | Locked Rotor Sensor | 25.00mm | 30.0dB(A) | 2.16 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 194°F (-10 ~ 90°C) | 3 Wire Leads | - |
|
|
BFB0612HH-F00FAN BLOWER 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 7.9 CFM (0.221m³/min) | 0.610 in H2O (151.9 Pa) | Ball | 0.113 lb (51.26 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 35.0dB(A) | 2.88 W | CE, CSA, UL, VDE | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
BFB0612H-F00FAN BLOWER 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 6.7 CFM (0.188m³/min) | 0.428 in H2O (106.6 Pa) | Ball | 0.113 lb (51.26 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 30.0dB(A) | 2.16 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 194°F (-10 ~ 90°C) | 3 Wire Leads | - |
|
|
G4010H05B2-RSRFAN AXIAL 40X10.3MM 5VDC WIRE |
0 | - |
|
数据表 |
G4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 9.0 CFM (0.252m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.026 lb (11.79 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 10.30mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 3 Wire Leads | - |
|
|
G4010H05B2-RSR-WSFAN AXIAL 40X10.3MM 5VDC WIRE |
0 | - |
|
数据表 |
G4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 9.0 CFM (0.252m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.026 lb (11.79 g) | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 10.30mm | 35.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 4 Wire Leads | - |
