直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0912L-F00FAN AXIAL 92X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 37.1 CFM (1.04m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.219 lb (99.34 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 25.0dB(A) | 840 mW | CE, CSA, UL, VDE | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-A225BG-123-374-20DC AXIAL FAN, 120 MM SQUARE, 25 |
0 | - |
|
数据表 |
CFM-A2BG | Box | Active | 12VDC | Square - 120mm L x 120mm H | 80.2 CFM (2.25m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 38.6dB(A) | 5.04 W | CE, cURus, TUV | 2300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
.GN.JPG)
|
PMD1206PMB1-A (2)FAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PMD | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 52.5 CFM (1.47m³/min) | 0.930 in H2O (231.7 Pa) | Ball | 0.19 lb (86.18 g) | Tubeaxial | - | 38.00mm | 57.2dB(A) | 10.2 W | CE, CUR, TUV, UL | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

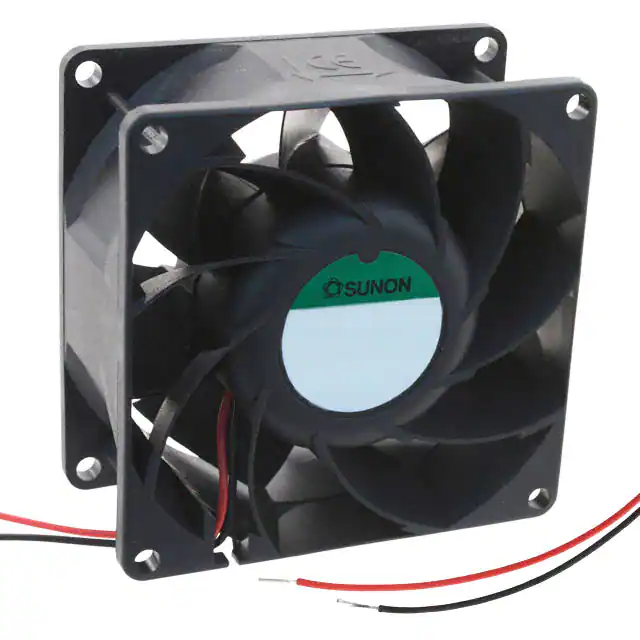

PMD1208PMB1-A (2)FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PMD | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 84.1 CFM (2.35m³/min) | 0.740 in H2O (184.3 Pa) | Ball | 0.386 lb (175.09 g) | Tubeaxial | - | 38.00mm | 55.2dB(A) | 9.1 W | CE, CUR, TUV, UL | 5700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD6025-12LB02AFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 14.0 CFM (0.392m³/min) | 0.080 in H2O (20.0 Pa) | Ball | 0.141 lb (63.96 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 19.0dB(A) | 1 W | cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
OD7015-12HB10AFAN AXIAL 70X15MM 12VDC WIRE |
0 | - |
|
数据表 |
OD7015 | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | - | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 15.00mm | - | - | cURus, TUV | - | - | 4 Wire Leads | - |
|
OD9225-12HS5FAN AXIAL 92.5X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | - | - | Sleeve | - | Tubeaxial | PWM Control | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
DC0802024J2B-2T2FAN 80X20MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 27.4 CFM (0.767m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 25.0dB(A) | 3.12 W | CE, cURus | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0802024L2B-2T2FAN 80X20MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 31.2 CFM (0.874m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 29.0dB(A) | 3.84 W | CE, cURus | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0802024M2B-2T2FAN 80X20MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 36.6 CFM (1.03m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 34.0dB(A) | 4.32 W | CE, cURus | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0501012L2B-3T3FAN 50X10MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 8.2 CFM (0.230m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 25.0dB(A) | 840 mW | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0501012J2B-3T3FAN 50X10MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 6.7 CFM (0.188m³/min) | 0.050 in H2O (12.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 18.0dB(A) | 600 mW | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0702512L2B-BT4FAN 70X25MM 12VDC PWM/TACH MOLEX |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 30.0 CFM (0.840m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 27.0dB(A) | 840 mW | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | - |
|
|
DC0501524H2B-2T2FAN 50X15MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.0 CFM (0.420m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 32.0dB(A) | 2.64 W | CE, cURus | 5400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0602024J2B-BT0FAN 60X20MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 13.5 CFM (0.378m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 20.00mm | 24.0dB(A) | 1.68 W | CE, cURus | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0401012V2B-3T3FAN 40X10MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 39.0dB(A) | 2.04 W | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0701524J2B-2T2FAN 70X15MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 21.1 CFM (0.591m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 27.0dB(A) | 2.4 W | CE, cURus | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0701524L2B-2T2FAN 70X15MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 25.7 CFM (0.720m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 31.0dB(A) | 2.88 W | CE, cURus | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0501512L2B-3T3FAN 50X15MM 12VDC TACH MOLEX 22- |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 12.2 CFM (0.342m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 27.0dB(A) | 840 mW | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
DC0401524M2B-BT0FAN 40X15MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 8.3 CFM (0.232m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 32.0dB(A) | 2.88 W | CE, cURus | 7300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
