直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

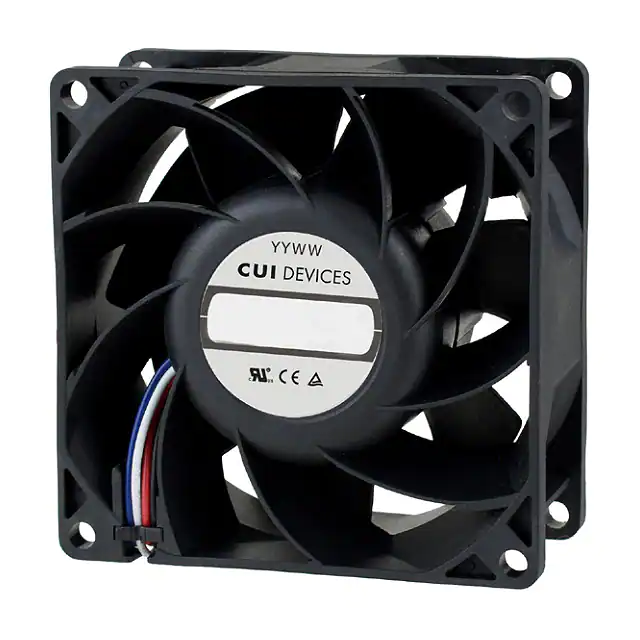

CFM-8038S-130-387FAN AXIAL 80X37.6MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80S | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.1 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 37.60mm | 38.7dB(A) | 2.88 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
DC0802512M2B-2T2FAN 80X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 69.9 CFM (1.96m³/min) | 0.260 in H2O (64.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 44.0dB(A) | 7.8 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0802512L2B-2T2FAN 80X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 66.4 CFM (1.86m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 42.0dB(A) | 4.8 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0802512I2B-2T2FAN 80X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 35.0dB(A) | 2.4 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
2404KL-04W-B40-B00FAN AXIAL 60X10.3MM 12VDC WIRE |
0 | - |
|
数据表 |
2404KL | Box | Active | 12VDC | Square - 60mm L x 60mm H | 16.2 CFM (0.454m³/min) | 0.092 in H2O (23.0 Pa) | Ball | 0.055 lb (24.95 g) | Tubeaxial | - | 10.30mm | 33.0dB | 2.4 W | CE, CSA, UL, VDE | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MC20100V1-000U-A99FAN AXIAL 20X10MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Box | Obsolete | 5VDC | Square - 20mm L x 20mm H | 1.9 CFM (0.053m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | 0.012 lb (5.44 g) | Tubeaxial | Auto Restart | 10.00mm | 25.0dB(A) | 1.05 W | CUR, TUV, UL | 17000 RPM | - | 2 Wire Leads | - |
|

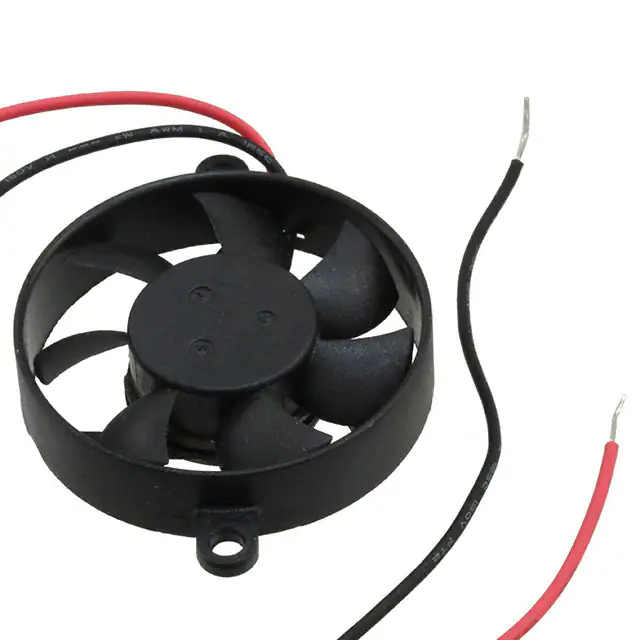

EF30080S2-E00U-A99FAN AXIAL 30.2X8MM 5VDC WIRE |
0 | - |
|
数据表 |
EF | Tray | Obsolete | 5VDC | Round - 30.2mm Dia | 3.0 CFM (0.084m³/min) | 0.080 in H2O (19.9 Pa) | Sleeve | 0.009 lb (4.08 g) | Tubeaxial | Auto Restart | 8.00mm | 17.0dB(A) | 400 mW | CE, CUR, TUV, UL | 7000 RPM | - | 2 Wire Leads | - |
|
CFM-9238B-130-410FAN AXIAL 92X37.5MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92B | Box | Active | 12VDC | Square - 92mm L x 92mm H | 57.5 CFM (1.61m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 37.50mm | 41.1dB(A) | 3.6 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-9238B-230-410FAN AXIAL 92X37.5MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-92B | Box | Active | 24VDC | Square - 92mm L x 92mm H | 57.5 CFM (1.61m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 37.50mm | 41.1dB(A) | 4.08 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
EF60251B1-1000U-F9912VDC FAN 60X25MM TACH |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.220 in H2O (55.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 31.5dB(A) | 0.99 W | CCC, CE, cURus, TUV, UKCA | 5200 RPM | - | 3 Wire Leads | - |
|
|
EF60251B3-1000U-H9912VDC FAN 60X25MM PWM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 13.9 CFM (0.389m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control | 25.00mm | 20.0dB(A) | 0.46 W | CCC, CE, cURus, TUV, UKCA | 3400 RPM | - | 3 Wire Leads | - |
|
|
EF60251B2-1000U-H9912VDC FAN 60X25MM PWM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 19.5 CFM (0.546m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control | 25.00mm | 27.0dB(A) | 0.7 W | CCC, CE, cURus, TUV, UKCA | 4500 RPM | - | 3 Wire Leads | - |
|
|
EF60251B2-1000U-F9912VDC FAN 60X25MM TACH |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 19.5 CFM (0.546m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 27.0dB(A) | 0.7 W | CCC, CE, cURus, TUV, UKCA | 4500 RPM | - | 3 Wire Leads | - |
|
|
EF60251B1-1000U-H9912VDC FAN 60X25MM PWM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.5 CFM (0.658m³/min) | 0.220 in H2O (55.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control | 25.00mm | 31.5dB(A) | 0.99 W | CCC, CE, cURus, TUV, UKCA | 5200 RPM | - | 3 Wire Leads | - |
|
|
EF60251B3-1000U-F9912VDC FAN 60X25MM TACH |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 13.9 CFM (0.389m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 20.0dB(A) | 0.46 W | CCC, CE, cURus, TUV, UKCA | 3400 RPM | - | 3 Wire Leads | - |
|

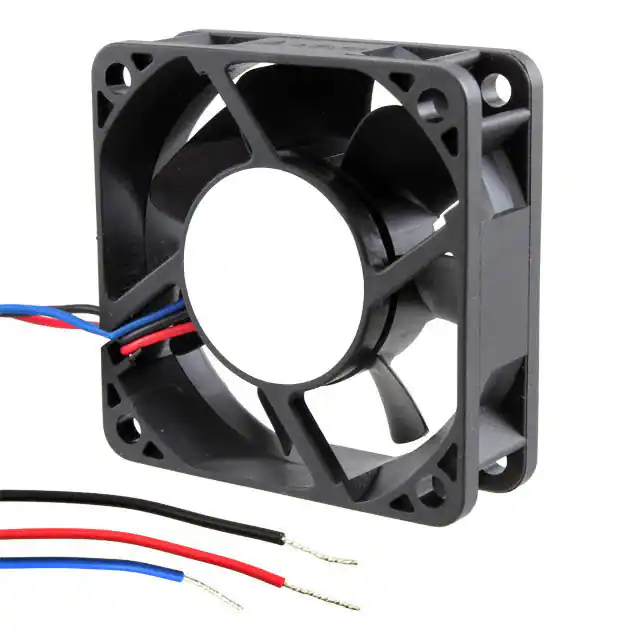

AFB0612VHC-F00FAN AXIAL 60X13MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 27.7 CFM (0.776m³/min) | 0.252 in H2O (62.8 Pa) | Ball | 0.074 lb (33.56 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 13.00mm | 38.0dB(A) | 2.88 W | CE, CSA, UL, VDE | 5400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-6025BG-170-434DC AXIAL FAN, 60 MM SQUARE, 25 M |
0 | - |
|
数据表 |
CFM-60BG | Box | Active | 12VDC | Square - 60mm L x 60mm H | 29.8 CFM (0.834m³/min) | 0.580 in H2O (144.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 43.4dB(A) | 5.4 W | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MS2006H12B2-RSRFAN AXIAL 20X6.5MM 12VDC WIRE |
0 | - |
|
数据表 |
MS2006 | Box | Obsolete | 12VDC | Square - 20mm L x 20mm H | 1.0 CFM (0.028m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.007 lb (3.18 g) | Tubeaxial | Locked Rotor Sensor | 6.50mm | 26.0dB(A) | - | CE, cUL, TUV, UL | 10000 RPM | - | 3 Wire Leads | - |
|
|
MS2006M12B2-RSRFAN AXIAL 20X6.5MM 12VDC WIRE |
0 | - |
|
数据表 |
MS2006 | Box | Obsolete | 12VDC | Square - 20mm L x 20mm H | 0.780 CFM (0.022m³/min) | 0.080 in H2O (20.0 Pa) | Ball | 0.007 lb (3.18 g) | Tubeaxial | Locked Rotor Sensor | 6.50mm | 21.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 3 Wire Leads | - |
|
|
OD8020-12HB10AFAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
OD8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 20.00mm | - | - | - | - | - | 4 Wire Leads | - |
