直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFR3B5HFAN BLOWER CF 94.5X23.5MM 5VDC |
8 | - |
|
数据表 |
CFR3B | Tape & Box (TB) | Active | 5VDC | Rectangular - 94.5mm L x 23mm H | 8.0 CFM (0.224m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 23.0dB | 1.1 A | CE, cUL, TUV, UL | 5500 RPM | -10°C ~ 70°C | - | - |
|

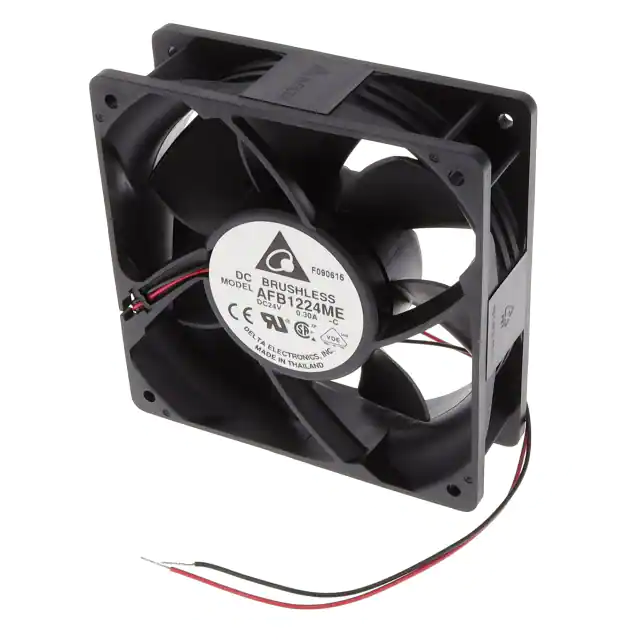

AFB1224ME-CFAN AXIAL 120X38MM 24VDC WIRE |
70 | - |
|
数据表 |
AFB | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 92.0 CFM (2.58m³/min) | 0.254 in H2O (63.3 Pa) | Ball | 0.706 lb (320.24 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 38.0dB(A) | 3.36 W | CE, CSA, UL, VDE | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
QYW12025048BS-12FAN AXIAL 120X25MM 48VDC WIRE |
20 | - |
|
数据表 |
QYW12025 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 181.0 CFM (5.07m³/min) | 1.000 in H2O (249.1 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 60.5dB(A) | 19.2 W | - | 6000 RPM | - | 2 Wire Leads | - |
|
|
QYW12025048BH-5FAN AXIAL 120X25MM 48VDC WIRE |
20 | - |
|
数据表 |
QYW12025 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 128.0 CFM (3.58m³/min) | 0.555 in H2O (138.2 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 51.4dB(A) | 8.64 W | - | 4400 RPM | - | 2 Wire Leads | - |
|
AFB1224GHE-CFAN AXIAL 120X38MM 24VDC WIRE |
30 | - |
|
数据表 |
AFB | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 241.0 CFM (6.75m³/min) | 1.082 in H2O (269.5 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 62.0dB(A) | 27.6 W | CE, CSA, UL, VDE | 5200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB1212LE-CFAN AXIAL 120X38MM 12VDC WIRE |
70 | - |
|
数据表 |
AFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 71.3 CFM (2.00m³/min) | 0.166 in H2O (41.3 Pa) | Ball | 0.706 lb (320.24 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 32.5dB(A) | 1.68 W | CE, CSA, UL, VDE | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB1224VHE-CFAN AXIAL 120X38MM 24VDC WIRE |
34 | - |
|
数据表 |
AFB | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 148.3 CFM (4.15m³/min) | 0.602 in H2O (149.9 Pa) | Ball | 0.706 lb (320.24 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 51.0dB(A) | 8.64 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
4482FMFAN AXIAL 119X25.4MM 12VDC TERM |
0 | - |
|
数据表 |
4400F | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 82.0 CFM (2.30m³/min) | - | Ball | 0.38 lb (172.37 g) | Tubeaxial | - | 25.40mm | 38.0dB(A) | 3.2 W | CE, CSA, UL, VDE | - | - | 2 Terminals | - |
|
EYW12038024BM-12FAN AXIAL 120X38MM 24VDC WIRE |
20 | - |
|
数据表 |
EYW12038 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 194.0 CFM (5.43m³/min) | 1.150 in H2O (286.5 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 60.4dB(A) | 28.8 W | - | 5000 RPM | - | 2 Wire Leads | - |
|
|
EYW12038012BM-12FAN AXIAL 120X38MM 12VDC WIRE |
20 | - |
|
数据表 |
EYW12038 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 193.9 CFM (5.43m³/min) | 1.150 in H2O (286.5 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 60.4dB(A) | 26.4 W | - | 5000 RPM | - | 2 Wire Leads | - |
|
|
EYW12038024BS-12FAN AXIAL 120X38MM 24VDC WIRE |
20 | - |
|
数据表 |
EYW12038 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 275.6 CFM (7.72m³/min) | 2.400 in H2O (597.8 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 69.2dB(A) | 69.6 W | - | 7000 RPM | - | 2 Wire Leads | - |
|
|
EYW12038012BS-12FAN AXIAL 120X38MM 12VDC WIRE |
20 | - |
|
数据表 |
EYW12038 | Box | Active | 12VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | - | 38.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
AFB1212VHE-CF00FAN AXIAL 120X38MM 12VDC WIRE |
35 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 148.3 CFM (4.15m³/min) | 0.602 in H2O (149.9 Pa) | Ball | 0.706 lb (320.24 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 51.0dB(A) | 8.16 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
FD1238B24W3-63-3RDC FAN 120X120X38mm 24V |
18 | - |
|
数据表 |
- | Tape & Box (TB) | Active | 24VDC | Square - 120mm L x 120mm H | 191.3 CFM (5.36m³/min) | 0.862 in H2O (214.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 58.1dB(A) | 26.4 W | CE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFR2B5X-SFAN BLOWER CF 73.5X23.5MM 5VDC |
10 | - |
|
数据表 |
CFR2B | Tape & Box (TB) | Active | 5VDC | Rectangular - 73.5mm L x 23mm H | 10.9 CFM (0.305m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 35.0dB | 1.3 A | CE, cUL, TUV, UL | 9500 RPM | -10°C ~ 70°C | - | - |
|
|
CFR2B12X-S-PFAN BLOWER CF 73.5X23.5MM 12VDC/ |
10 | - |
|
数据表 |
CFR2B | Tape & Box (TB) | Active | 12VDC | Rectangular - 73.5mm L x 23mm H | 10.9 CFM (0.305m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 35.0dB | 1.3 A | CE, cUL, TUV, UL | 9500 RPM | -10°C ~ 70°C | - | - |
|
|
CFR2B12X-SFAN BLOWER CF 73.5X23.5MM 12VDC |
10 | - |
|
数据表 |
CFR2B | Tape & Box (TB) | Active | 12VDC | Rectangular - 73.5mm L x 23mm H | 10.9 CFM (0.305m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 35.0dB | 1.3 A | CE, cUL, TUV, UL | 9500 RPM | -10°C ~ 70°C | - | - |
|
|
CFR2B5XFAN BLOWER CF 73.5X23.5MM 5VDC |
10 | - |
|
数据表 |
CFR2B | Tape & Box (TB) | Active | 5VDC | Rectangular - 73.5mm L x 23mm H | 10.9 CFM (0.305m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 35.0dB | 1.3 A | CE, cUL, TUV, UL | 9500 RPM | -10°C ~ 70°C | - | - |
|
|
CFR2B12XFAN BLOWER CF 73.5X23.5MM 12VDC |
9 | - |
|
数据表 |
CFR2B | Tape & Box (TB) | Active | 12VDC | Rectangular - 73.5mm L x 23mm H | 10.9 CFM (0.305m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 35.0dB | 1.3 A | CE, cUL, TUV, UL | 9500 RPM | -10°C ~ 70°C | - | - |
|
|
CFR2B5X-S-PFAN BLOWER CF 73.5X23.5MM 5VDC/T |
7 | - |
|
数据表 |
CFR2B | Tape & Box (TB) | Active | 5VDC | Rectangular - 73.5mm L x 23mm H | 10.9 CFM (0.305m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 35.0dB | 1.3 A | CE, cUL, TUV, UL | 9500 RPM | -10°C ~ 70°C | - | - |
