直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

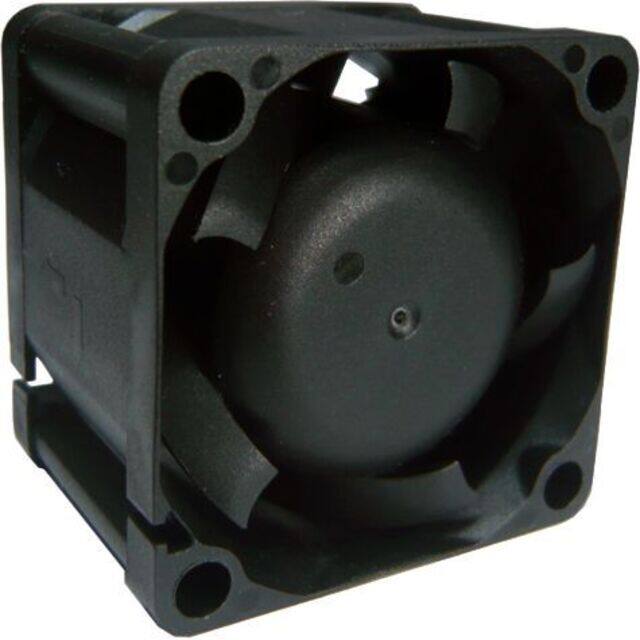

XYW03628012BSS-12FAN AXIAL 36X28MM 12VDC WIRE |
20 | - |
|
数据表 |
XYW03628 | Box | Active | 12VDC | Square - 36mm L x 36mm H | 25.0 CFM (0.700m³/min) | 2.600 in H2O (647.7 Pa) | Ball | - | Tubeaxial | - | 28.00mm | 63.0dB(A) | 12 W | - | 23000 RPM | - | 2 Wire Leads | - |
|
XYW04028012BSS-E-12FAN AXIAL 40X28MM 12VDC WIRE |
20 | - |
|
数据表 |
XYW04028-E | Box | Active | 12VDC | Square - 40mm L x 40mm H | 33.7 CFM (0.943m³/min) | 2.500 in H2O (622.7 Pa) | Ball | - | Tubeaxial | - | 28.00mm | 61.0dB(A) | 21.6 W | - | 23500 RPM | - | 2 Wire Leads | - |
|
3414GFAN AXIAL 92X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
3400 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 49.0 CFM (1.37m³/min) | - | Sleeve | 0.31 lb (140.61 g) | Tubeaxial | - | 25.40mm | 36.0dB(A) | 2.4 W | - | - | - | 2 Wire Leads | - |
_Series.jpg)
|
3412NGLFAN AXIAL 92X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
3400N | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 36.0 CFM (1.01m³/min) | - | Sintec | 0.31 lb (140.61 g) | Tubeaxial | - | 25.40mm | 23.0dB(A) | 1.2 W | - | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
MS6038H48B-FSR-2EMFAN AXIAL 60X38MM 48VDC WIRE |
8 | - |
|
数据表 |
MS6038-S | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 58.0 CFM (1.62m³/min) | 1.600 in H2O (398.6 Pa) | Ball | 0.231 lb (104.78 g) | Tubeaxial | Auto Restart | 38.00mm | 59.0dB(A) | - | - | 11000 RPM | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|

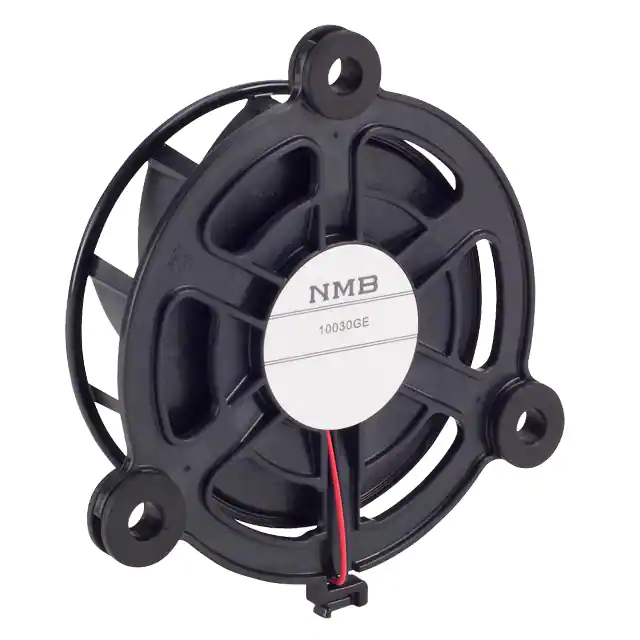

10030GE-12N-YA-F0FAN AXIAL 100X30MM 12VDC WIRE |
90 | - |
|
数据表 |
10030GE | Bulk | Active | 12VDC | Round - 100mm Dia | 37.1 CFM (1.04m³/min) | 0.200 in H2O (49.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 30.00mm | 35.5dB | 1.8 W | - | 2500 RPM | -40 ~ 104°F (-40 ~ 40°C) | 2 Wire Leads | - |
|

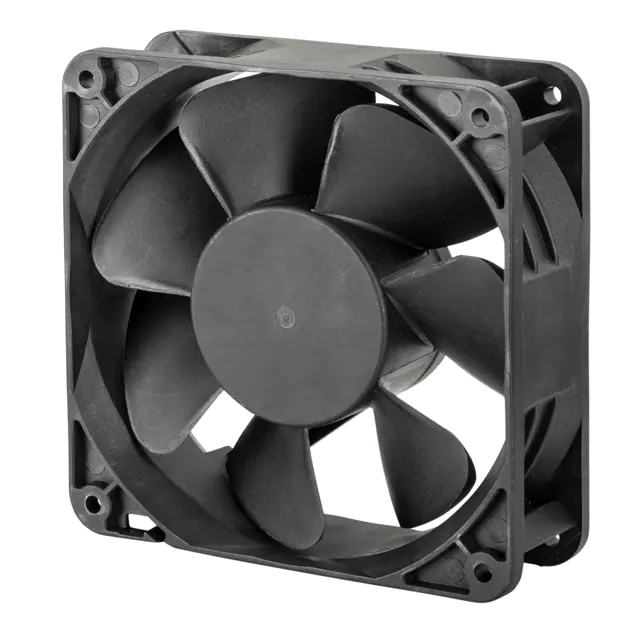

R1238L12BPLB2AFAN AXIAL 120X38MM 12VDC WIRE |
27 | - |
|
数据表 |
Intelligent Motion | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 104.4 CFM (2.96m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 38.00mm | 39.8dB(A) | 3.6 W | CE, cUL, UL | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3412/2FAN AXIAL 92X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
3400 | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 49.0 CFM (1.37m³/min) | - | Ball | 0.31 lb (140.61 g) | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 36.0dB(A) | 2.4 W | - | - | - | 3 Wire Leads | - |
|

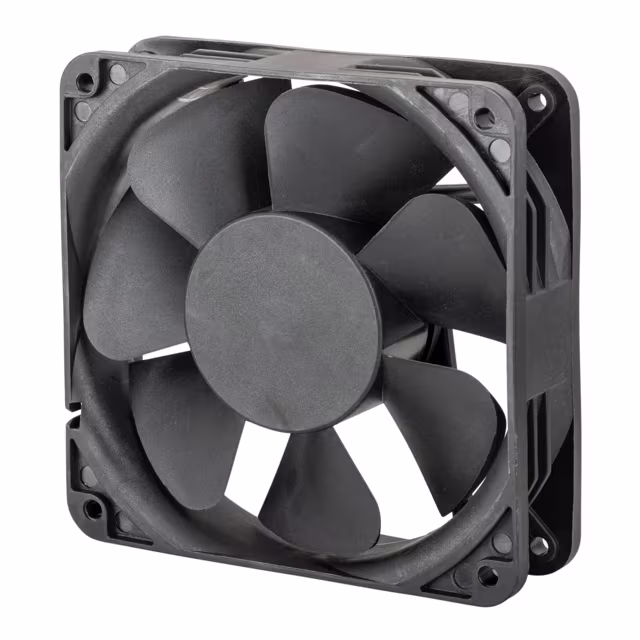

G1232X48BPLB2FAN AXIAL 120X32MM 48VDC WIRE |
80 | - |
|
数据表 |
Intelligent Motion | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 117.2 CFM (3.32m³/min) | 0.510 in H2O (127.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 32.00mm | 46.7dB(A) | 6.86 W | CE, cUL, UL | 3750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
9G0912P2A0192X32MM 12V,HIGH PERF. DC TACH,P |
60 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.00mm | - | - | CSA, TUV, UR | - | - | 4 Wire Leads | - |
|
|
9G1248F4021FAN AXIAL 120X25MM 48VDC WIRE |
56 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 35.0dB(A) | 2.88 W | CSA, TUV, UL | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
FD9225B24W11-81-3HDC Axial Fan 92x92x25mm 24VDC |
17 | - |
|
数据表 |
81 | Tape & Box (TB) | Active | 24VDC | Square - 92.0mm L x 92.0mm H | 69.7 CFM (1.95m³/min) | 0.217 in H2O (54.1 Pa) | Ball | 0.218 lb (98.88 g) | Tubeaxial | Alarm Sensor, Auto Restart | 25.00mm | 41.2dB(A) | 8.4 W | cUL, TUV, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
FBD6025B12W3-81-4JDC Blower 60x60x25mm 12VDC |
7 | - |
|
数据表 |
81 | Tape & Box (TB) | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 7.1 CFM (0.199m³/min) | 0.335 in H2O (83.4 Pa) | Ball | 0.115 lb (52.16 g) | Blower | Alarm Sensor, PWM Control, Speed Sensor (Tach) | 25.00mm | 25.5dB(A) | 1.56 W | CE, cUL, TUV, UL | 2500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9RA0848H10011FAN AXIAL 80X38MM 48VDC WIRE |
34 | - |
|
数据表 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 77.3 CFM (2.19m³/min) | 0.670 in H2O (166.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | 8.64 W | cURus, TUV | 6100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
ASFN84391FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
ASFN8 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 24.3 CFM (0.680m³/min) | 0.057 in H2O (14.2 Pa) | Ball | 0.176 lb (79.83 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 22.0dB(A) | 1.2 W | CE, cURus | 1900 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
CFR2B5HFAN BLOWER CF 68.8X23.5MM 5VDC |
8 | - |
|
数据表 |
CFR2B | Tape & Box (TB) | Active | 5VDC | Rectangular - 68.8mm L x 23mm H | 5.5 CFM (0.154m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 25.0dB | 1 A | CE, cUL, TUV, UL | 7500 RPM | -10°C ~ 70°C | - | - |
|
|
CFR2B5H-SFAN BLOWER CF 68.8X23.5MM 5VDC/T |
7 | - |
|
数据表 |
CFR2B | Tape & Box (TB) | Active | 5VDC | Rectangular - 68.8mm L x 23mm H | 5.5 CFM (0.154m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 25.0dB | 1 A | CE, cUL, TUV, UL | 7000 RPM | -10°C ~ 70°C | - | - |
|
|
9GA0912L40192X25MM 12V,HIGH PERF.,LOW POWER |
59 | - |
|
数据表 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 30.7 CFM (0.860m³/min) | 0.067 in H2O (16.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 21.0dB(A) | 1.08 W | cURus, TUV | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-9238BF-180-585-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
50 | - |
|
数据表 |
CFM-92BF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 58.5dB(A) | 13.68 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFR2B12H-SFAN BLOWER CF 68.8X23.5MM 12VDC/ |
7 | - |
|
数据表 |
CFR2B | Tape & Box (TB) | Active | 12VDC | Rectangular - 68.8mm L x 23mm H | 5.5 CFM (0.154m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 25.0dB | 1 A | CE, cUL, TUV, UL | 7000 RPM | -10°C ~ 70°C | - | - |
