直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EYW09238012BE-12FAN AXIAL 92X38MM 12VDC WIRE |
20 | - |
|
数据表 |
EYW09238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 184.4 CFM (5.16m³/min) | 3.110 in H2O (774.7 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 67.5dB(A) | 52.8 W | - | 12500 RPM | - | 2 Wire Leads | - |
|
|
EYW09238024BE-12FAN AXIAL 92X38MM 24VDC WIRE |
20 | - |
|
数据表 |
EYW09238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 193.0 CFM (5.40m³/min) | 4.083 in H2O (1016.9 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 68.5dB(A) | 52.8 W | - | 13500 RPM | - | 2 Wire Leads | - |
|
|
EYW09238048BE-12FAN AXIAL 92X38MM 48VDC WIRE |
20 | - |
|
数据表 |
EYW09238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 192.9 CFM (5.4m³/min) | 4.083 in H2O (1016.9 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 68.5dB(A) | 52.8 W | - | 13500 RPM | - | 2 Wire Leads | - |
|
OD1238-48HBVXEFAN AXIAL 120X38MM 48VDC WIRE |
58 | - |
|
数据表 |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 235.5 CFM (6.59m³/min) | 1.600 in H2O (398.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 60.6dB(A) | 45.1 W | CE, cURus, TUV, UR | 4925 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
4412LLU-611FAN AXIAL 119X38MM 12VDC WIRE |
38 | - |
|
数据表 |
4400L | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 70.0 CFM (1.96m³/min) | 0.173 in H2O (43.1 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 31.0dB(A) | 1.6 W | CE, CSA, UL, VDE | 2150 RPM | 32 ~ 158°F (0 ~ 70°C) | 2 Wire Leads | - |
|
|
XYW17251024BL-6172X51MM 24V BALL 3000RPM W/AR, |
55 | - |
|
数据表 |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
4412/12MFAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
4400 | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 108.0 CFM (3.02m³/min) | - | Ball | 0.553 lb (250.84 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 42.0dB(A) | 4.1 W | - | 3300 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
4394MFAN AXIAL 119X32MM 24VDC TERM |
0 | - |
|
数据表 |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 82.0 CFM (2.30m³/min) | - | Ball | 0.5 lb (226.8 g) | Tubeaxial | - | 32.00mm | 39.0dB(A) | 2.6 W | CE, CSA, UL, VDE | - | - | 2 Terminals | - |
|
|
OD1238-12MBVXE10AFAN 12VDC 120X38MM PWM/TACH |
37 | - |
|
数据表 |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 215.0 CFM (6.02m³/min) | 1.300 in H2O (323.6 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 58.2dB(A) | 34.2 W | CE, cURus, TUV, UR | 4450 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
|
|
9WPA0812S400180X25MM 12VDC IP68 HIGH PERF TAC |
40 | - |
|
数据表 |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
OD1238-48H3BVXE10AFAN 48VDC 120X38MM PWM/TACH |
22 | - |
|
数据表 |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 285.2 CFM (7.99m³/min) | 2.300 in H2O (572.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 64.6dB(A) | 77.7 W | CE, cURus, TUV, UR | 5980 RPM | -4 ~ 149°F (-20 ~ 65°C) | 4 Wire Leads | - |
|
9CR0812H801FAN AXIAL DUAL 80X80MM 12VDC |
9 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 140.0 CFM (3.92m³/min) | 1.610 in H2O (401.0 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial (Dual) | Counter-Rotating, Speed Sensor (Tach) | 80.00mm | 68.0dB(A) | 43.2 W | CSA, TUV, UL | 7000 Front, 4600 Rear | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads per Fan | - |
|
|
9LG0624P4JD00160X25MM 24V, HIGH PERF LONG LIFE |
80 | - |
|
数据表 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 25.00mm | - | - | - | - | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

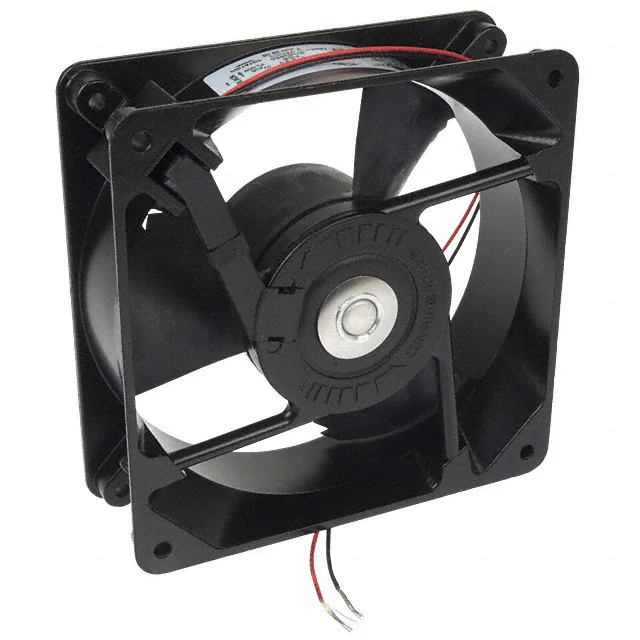

19032038AFAN AXIAL 119.1X39.1MM MD48B3 |
42 | - |
|
数据表 |
Muffin XL | Box | Active | 48VDC | Square - 119.13mm L x 119.13mm H | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 39.12mm | 50.0dB(A) | 5.8 W | CE, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9WPA0412H3001FAN AXIAL 40X28MM 12VDC WIRE |
97 | - |
|
数据表 |
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 18.3 CFM (0.512m³/min) | 1.510 in H2O (375.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 48.0dB(A) | 4.1 W | cURus, TUV | 18500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WPA0424H30011FAN AXIAL 40X28MM 24VDC WIRE |
96 | - |
|
数据表 |
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 18.3 CFM (0.512m³/min) | 1.510 in H2O (375.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 48.0dB(A) | 4.1 W | cURus, TUV | 18500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
CFR3B5X-S-PFAN BLOWER CF 99.2X23.5MM 5VDC/T |
9 | - |
|
数据表 |
CFR3B | Tape & Box (TB) | Active | 5VDC | Rectangular - 99.2mm L x 23mm H | 13.9 CFM (0.389m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 34.0dB | 1.3 A | CE, cUL, TUV, UL | 8500 RPM | -10°C ~ 70°C | - | - |
|
|
CFR3B5XFAN BLOWER CF 99.2X23.5MM 5VDC |
9 | - |
|
数据表 |
CFR3B | Tape & Box (TB) | Active | 5VDC | Rectangular - 99.2mm L x 23mm H | 13.9 CFM (0.389m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 34.0dB | 1.3 A | CE, cUL, TUV, UL | 8500 RPM | -10°C ~ 70°C | - | - |
|
|
CFR3B12XFAN BLOWER CF 99.2X23.5MM 12VDC |
9 | - |
|
数据表 |
CFR3B | Tape & Box (TB) | Active | 12VDC | Rectangular - 99.2mm L x 23mm H | 13.9 CFM (0.389m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 34.0dB | 1.3 A | CE, cUL, TUV, UL | 8500 RPM | -10°C ~ 70°C | - | - |
|
|
CFR3B5X-SFAN BLOWER CF 99.2X23.5MM 5VDC/T |
9 | - |
|
数据表 |
CFR3B | Tape & Box (TB) | Active | 5VDC | Rectangular - 99.2mm L x 23mm H | 13.9 CFM (0.389m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 34.0dB | 1.3 A | CE, cUL, TUV, UL | 8500 RPM | -10°C ~ 70°C | - | - |
