直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

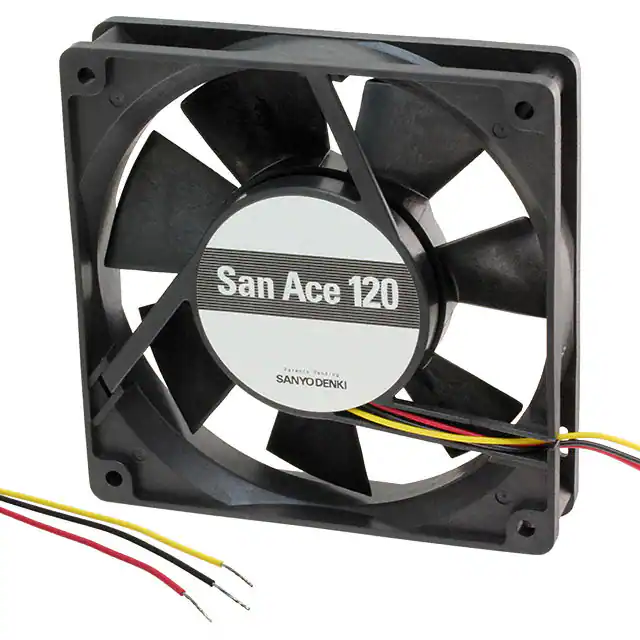

109P1212H4D01FAN AXIAL 119X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | - | - | Ball | 0.463 lb (210.01 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 40.0dB(A) | 2.88 W | CSA, TUV, UR | 2800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|

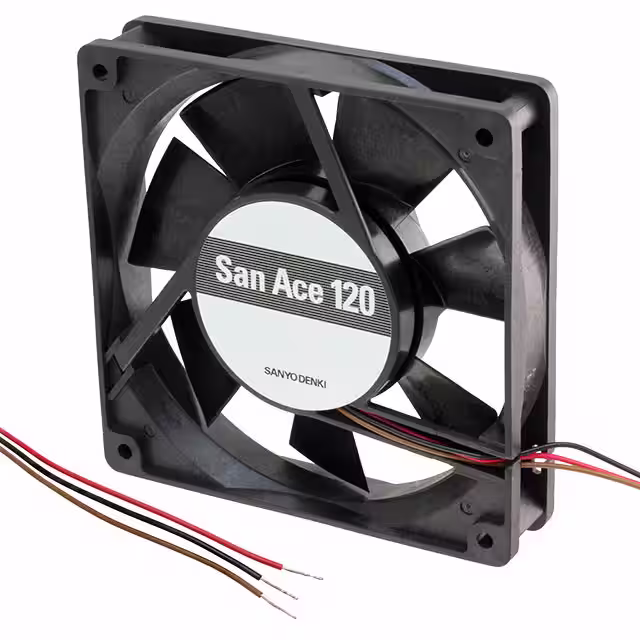

109P1212T4H12FAN AXIAL 119X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 88.3 CFM (2.50m³/min) | 0.216 in H2O (53.9 Pa) | Ball | 0.463 lb (210.01 g) | Tubeaxial | Thermistor, External | 25.00mm | 40.0dB(A) | 6.6 W | CSA, TUV, UR | 2800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
109R0612H402FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 28.0dB(A) | 1.32 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109R0612H4021FAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 28.0dB(A) | 1.32 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109R0624F402FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 24.0dB(A) | 1.2 W | CSA, TUV, UL | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109R0624F4021FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 24.0dB(A) | 1.2 W | CSA, TUV, UL | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109R0624H402FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 28.0dB(A) | 1.44 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109R0624H4021FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 28.0dB(A) | 1.44 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
109R0624H4D01FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 28.0dB(A) | 1.44 W | CSA, TUV, UL | 3800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109R0624M402FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 20.0dB(A) | 960 mW | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
109R0812T4H12FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Thermistor, External | 25.00mm | 29.0dB(A) | 1.68 W | CSA, TUV, UL | 2900 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|

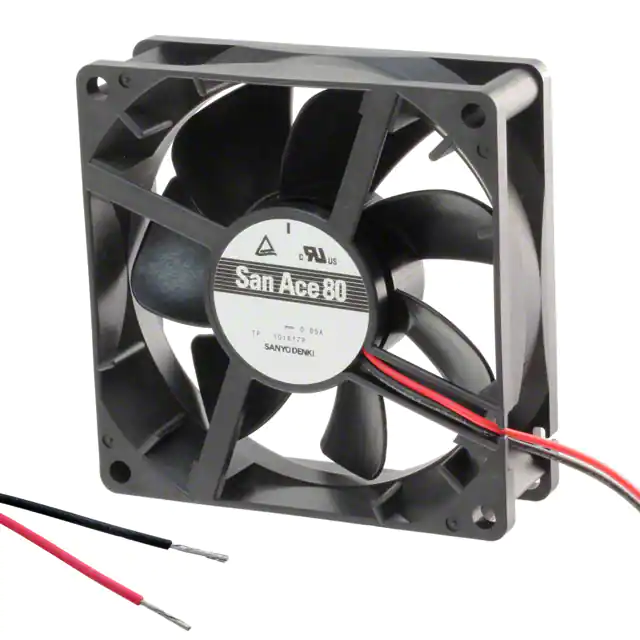

109R0812T4H122FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 37.8 CFM (1.06m³/min) | 0.151 in H2O (37.7 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Thermistor | 25.00mm | 29.0dB(A) | 1.68 W | CSA, TUV, UL | 3000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
109R0824G402FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 40.0dB(A) | 4.8 W | CSA, TUV, UL | 4500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
OD4006-12HBFAN AXIAL 40X6MM BALL 12VDC WIRE |
0 | - |
|
数据表 |
OD4006 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | - | 6.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
OD4006-12MBFAN AXIAL 40X6MM BALL 12VDC WIRE |
0 | - |
|
数据表 |
OD4006 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | - | 6.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
OD4010-12LLBFAN AXIAL 40X10.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | 0.441 lb (200.00 g) | Tubeaxial | - | 10.50mm | - | - | - | - | - | 2 Wire Leads | - |
|
OD4015-12HHBFAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | - | 15.00mm | - | - | CE, cURus | - | - | 2 Wire Leads | - |
|
OD4020-12HHBFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | - | 20.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
OD4020-12LLBFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
OD4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | - | 20.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
109R0824H402FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 29.0dB(A) | 1.68 W | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
