直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09225SS-24L-AA-D0DC AXIAL FAN |
0 | - |
|
数据表 |
09225SS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 40.2 CFM (1.13m³/min) | 0.116 in H2O (29.0 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 25.00mm | 25.0dB | 1.68 W | - | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
09225SS-12N-EA-D0DC AXIAL FAN |
0 | - |
|
数据表 |
09225SS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 51.7 CFM (1.45m³/min) | 0.181 in H2O (45.1 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 25.00mm | 32.0dB | 1.92 W | - | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
09225SS-12L-AA-D0DC AXIAL FAN |
0 | - |
|
数据表 |
09225SS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 40.2 CFM (1.13m³/min) | 0.116 in H2O (29.0 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 25.00mm | 25.0dB | 1.08 W | - | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
09225SS-12Q-AA-D0DC AXIAL FAN |
0 | - |
|
数据表 |
09225SS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 65.6 CFM (1.84m³/min) | 0.293 in H2O (73.0 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 25.00mm | 40.0dB | 3.36 W | - | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
09225SS-12M-EA-D0DC AXIAL FAN |
0 | - |
|
数据表 |
09225SS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 45.6 CFM (1.28m³/min) | 0.145 in H2O (36.1 Pa) | Sleeve | - | Tubeaxial | Auto Restart | 25.00mm | 29.0dB | 1.68 W | - | 2750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-5010B-170-361-20DC AXIAL FAN, 50 MM SQUARE, 10 M |
0 | - |
|
数据表 |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 14.0 CFM (0.392m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.50mm | 34.5dB(A) | 1.8 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-2010CF-160-066-22DC AXIAL FAN, 20 MM SQUARE, 10 M |
0 | - |
|
数据表 |
CFM-20CF | Box | Active | 12VDC | Square - 20mm L x 20mm H | 0.600 CFM (0.017m³/min) | 0.030 in H2O (7.5 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.30mm | 6.6dB(A) | 600 mW | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CBM-9330C-230-439DC BLOWER, 92.3 X 92.6 X 30 MM, |
0 | - |
|
数据表 |
CBM-93C | Box | Active | 24VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 18.6 CFM (0.521m³/min) | 0.840 in H2O (209.2 Pa) | omniCOOL™ Magnetic Sleeve | - | Blower | Auto Restart | 29.50mm | 43.9dB(A) | 5.04 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-9330C-130-439DC BLOWER, 92.3 X 92.6 X 30 MM, |
0 | - |
|
数据表 |
CBM-93C | Box | Active | 12VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 18.6 CFM (0.521m³/min) | 0.840 in H2O (209.2 Pa) | omniCOOL™ Magnetic Sleeve | - | Blower | Auto Restart | 29.50mm | 43.9dB(A) | 4.08 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

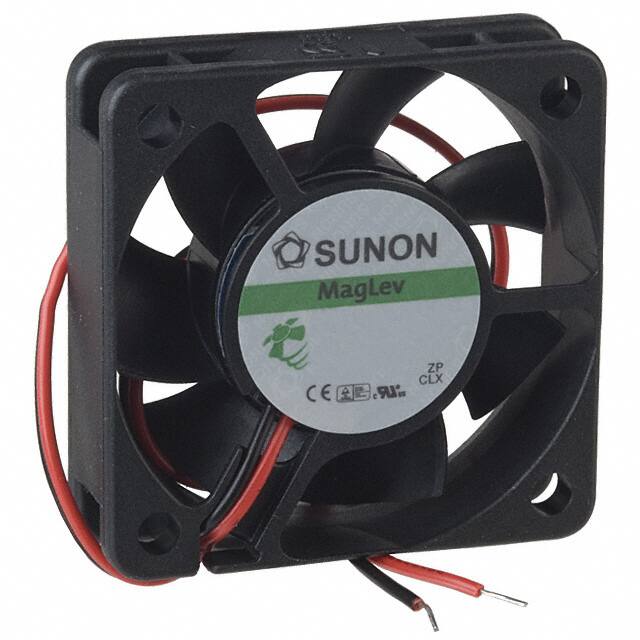

KDE0505PHV2.MS.A.GNFAN AXIAL 50X15MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® KDE | Bulk | Obsolete | 5VDC | Square - 50mm L x 50mm H | 13.0 CFM (0.364m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | 0.086 lb (39.01 g) | Tubeaxial | - | 15.00mm | 29.0dB(A) | 800 mW | CE, CUR, TUV, UL | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-6015BF-265-412FAN AXIAL 60X15.5MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 28.6 CFM (0.801m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 15.50mm | 41.2dB(A) | 5.76 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17000171AFAN AXIAL 40X15MM CR0412HB-D51 |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 8.5 CFM (0.238m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.06 lb (27.22 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 15.00mm | 36.0dB(A) | 1.32 W | CE, cUL, TUV, UL | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17000172AFAN AXIAL 40X15MM CR0412MB-D51 |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 7.6 CFM (0.213m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.06 lb (27.22 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 15.00mm | 31.8dB(A) | 1.08 W | CE, cUL, TUV, UL | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17000174AFAN AXIAL 24VDC CR0824LB-D90(T) |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 29.6 CFM (0.829m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 15.50mm | 36.0dB(A) | 1.2 W | CE, cUL, TUV, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
17000176AFAN AXIAL 40X15MM CR0412HB-D51 |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 8.5 CFM (0.238m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.06 lb (27.22 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 15.00mm | 36.0dB(A) | 1.32 W | CE, cUL, TUV, UL | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

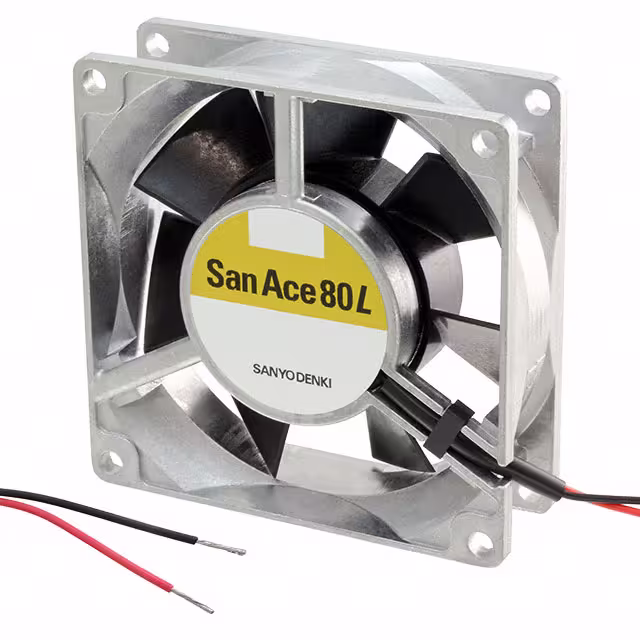

109L0824H402FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80L | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 37.4 CFM (1.05m³/min) | 0.157 in H2O (39.2 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | - | 25.00mm | 32.0dB(A) | 2.16 W | CSA, TUV, UL | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

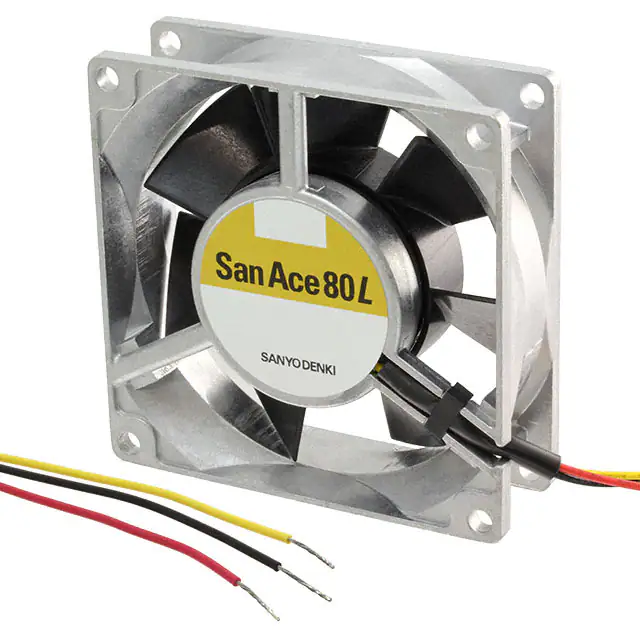

109L0824S401FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80L | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 42.4 CFM (1.19m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 2.64 W | CSA, TUV, UL | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

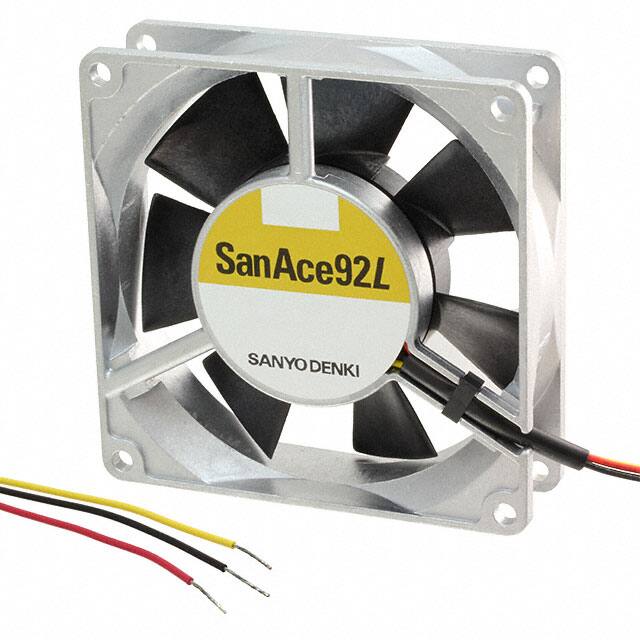

109L0912H401FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92L | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 48.7 CFM (1.36m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 33.0dB(A) | 2.52 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

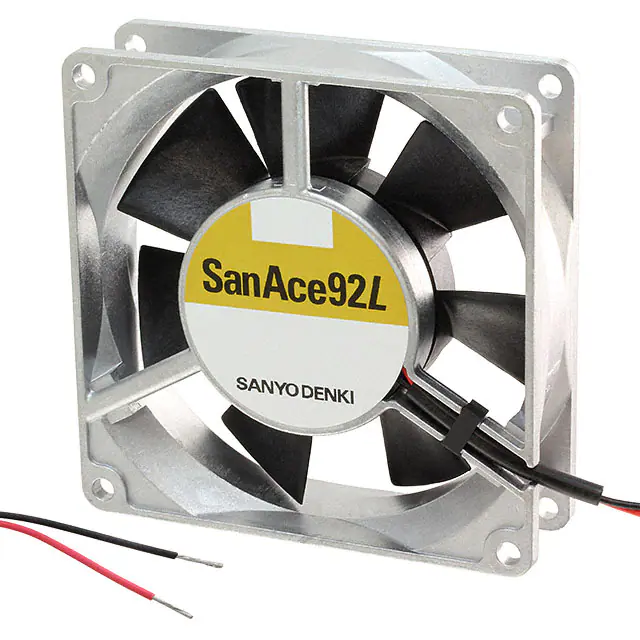

109L0924H402FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92L | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 48.7 CFM (1.36m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | - | 25.00mm | 33.0dB(A) | 2.88 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

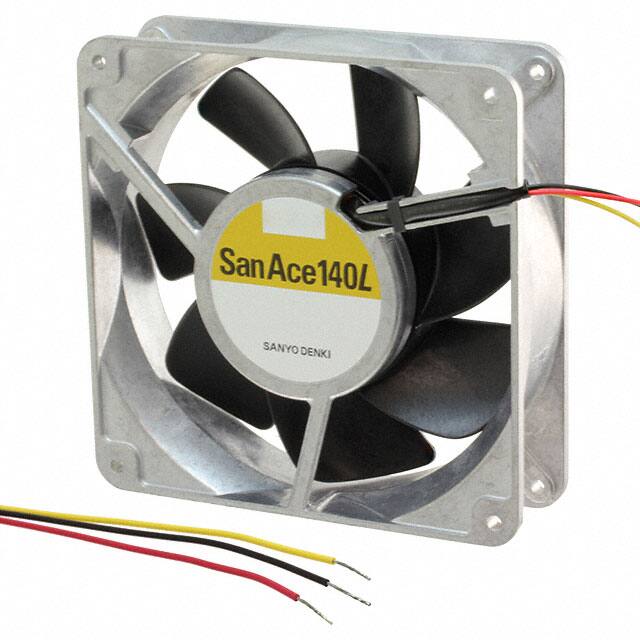

109L1424H101FAN AXIAL 140X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 140L | Box | Obsolete | 24VDC | Square - 140mm L x 140mm H | 159.0 CFM (4.45m³/min) | 0.394 in H2O (98.1 Pa) | Ball | 1.3 lbs (600.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | 8.88 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
