直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109P0524H702FAN AXIAL 52X15MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 52 | Box | Obsolete | 24VDC | Square - 52mm L x 52mm H | 9.0 CFM (0.252m³/min) | 0.128 in H2O (31.8 Pa) | Ball | 0.122 lb (55.34 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 27.0dB(A) | 1.2 W | CSA, TUV, UL | 4600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109P0524M702FAN AXIAL 52X15MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 52 | Box | Obsolete | 24VDC | Square - 52mm L x 52mm H | 7.2 CFM (0.202m³/min) | 0.086 in H2O (21.5 Pa) | Ball | 0.122 lb (55.34 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 22.0dB(A) | 960 mW | CSA, TUV, UL | 3700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
109P0612B7D01FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 7.4 CFM (0.207m³/min) | 0.047 in H2O (11.8 Pa) | Ball | 0.133 lb (60.33 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 21.0dB(A) | 600 mW | CSA, TUV, UL | 2200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0612H7D01FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | 0.133 lb (60.33 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 32.0dB(A) | 1.08 W | CSA, TUV, UL | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0624H702FAN AXIAL 60X15MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | 0.133 lb (60.33 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 32.0dB(A) | 1.44 W | CSA, TUV, UL | 4100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
109P0624M602FAN AXIAL 60X20MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 10.6 CFM (0.297m³/min) | 0.076 in H2O (18.9 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 25.0dB(A) | 1.2 W | CSA, TUV, UL | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
109P0812A201FAN AXIAL 80X32MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 53.7 CFM (1.50m³/min) | 0.366 in H2O (91.2 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 45.0dB(A) | 6.72 W | CSA, TUV, UL | 4600 RPM | -4 ~ 131°F (-20 ~ 55°C) | 3 Wire Leads | - |
|
109P0812H2011FAN AXIAL 80X32MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 37.1 CFM (1.04m³/min) | 0.173 in H2O (43.1 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 33.0dB(A) | 1.92 W | CSA, TUV, UL | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
17000182AFAN 50X10.5 CR0505HB-G70(T) 5VDC |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 5VDC | Square - 50mm L x 50mm H | 10.3 CFM (0.289m³/min) | 0.100 in H2O (24.9 Pa) | Ball | 0.04 lb (18.14 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 10.50mm | 27.5dB(A) | 1.1 W | CE, cUL, TUV, UL | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17000190AFAN 50X10.5MM CR0512UB-G70(T) |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 12.0 CFM (0.336m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.04 lb (18.14 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 10.50mm | 32.0dB(A) | 1.2 W | CE, cUL, TUV, UL | 5600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
109P0812M701FAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.1 CFM (0.563m³/min) | 0.051 in H2O (12.7 Pa) | Ball | 0.15 lb (68.04 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 21.0dB(A) | 1.08 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
109P0812M702FAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.1 CFM (0.563m³/min) | 0.051 in H2O (12.7 Pa) | Ball | 0.15 lb (68.04 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 21.0dB(A) | 1.08 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

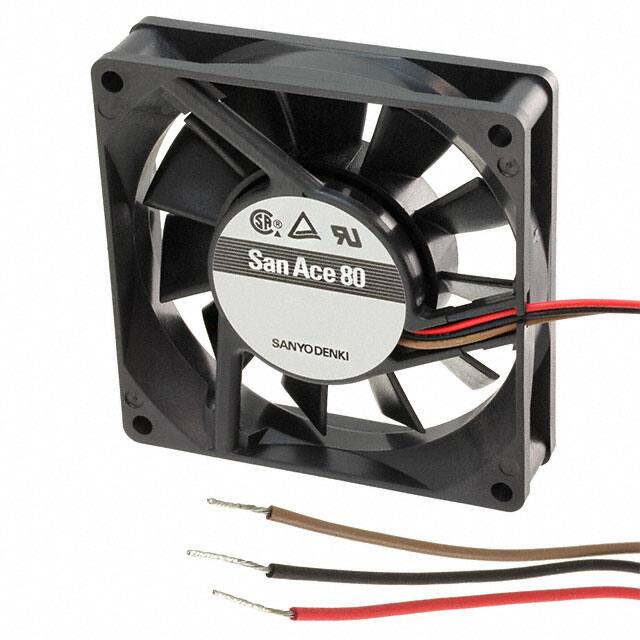

109P0812T6H12FAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 29.7 CFM (0.832m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Thermistor, External | 20.00mm | 31.0dB(A) | 2.16 W | CSA, TUV, UR | 2900 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
109P0824A201FAN AXIAL 80X32MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 53.7 CFM (1.50m³/min) | 0.366 in H2O (91.2 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 45.0dB(A) | 6.96 W | CSA, TUV, UL | 4600 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P0824A2011FAN AXIAL 80X32MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 53.7 CFM (1.50m³/min) | 0.366 in H2O (91.2 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 45.0dB(A) | 6.96 W | CSA, TUV, UL | 4600 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
109P0824H202FAN AXIAL 80X32MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 37.1 CFM (1.04m³/min) | 0.173 in H2O (43.1 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Locked Rotor Protection | 32.00mm | 33.0dB(A) | 2.16 W | CSA, TUV, UL | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

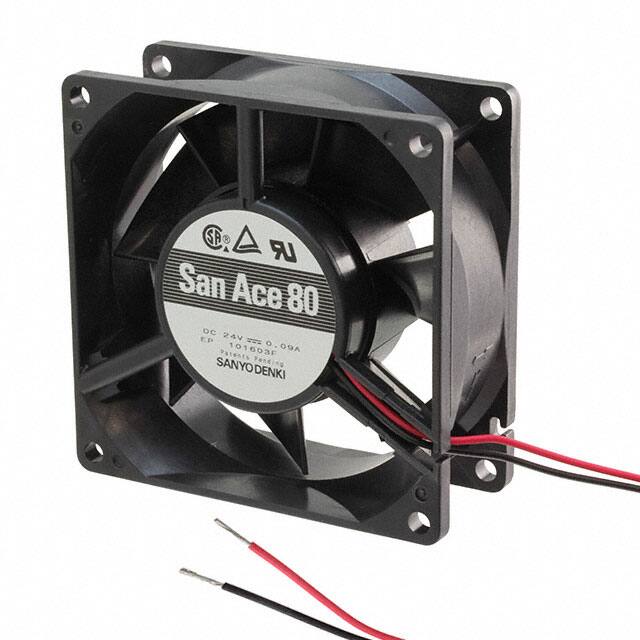

109P0824H2021FAN AXIAL 80X32MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 37.1 CFM (1.04m³/min) | 0.173 in H2O (43.1 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Locked Rotor Protection | 32.00mm | 33.0dB(A) | 2.16 W | CSA, TUV, UL | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
109P0824H602FAN AXIAL 80X20MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 29.7 CFM (0.832m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 31.0dB(A) | 2.88 W | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
109P0824H702FAN AXIAL 80X15MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 32.1 CFM (0.899m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.15 lb (68.04 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 31.0dB(A) | 2.4 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
109P0824H7D01FAN AXIAL 80X15MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 32.1 CFM (0.899m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.15 lb (68.04 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 31.0dB(A) | 2.4 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
