直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD7015-12LBFAN AXIAL 70X15MM 12VDC WIRE |
0 | - |
|
数据表 |
OD7015 | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | - | - | Ball | - | Tubeaxial | - | 15.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
OD7015-12LLBFAN AXIAL 70X15MM 12VDC WIRE |
0 | - |
|
数据表 |
OD7015 | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | - | - | Ball | - | Tubeaxial | - | 15.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
9GV0612H102FAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 76.0 CFM (2.13m³/min) | 2.480 in H2O (617.7 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | - | 38.00mm | 63.0dB(A) | 24 W | CSA, TUV, UL | 14500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
.jpg)
|
9GV0612P1M03FAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 68.0 CFM (1.90m³/min) | 1.990 in H2O (495.7 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 60.0dB(A) | 18 W | CSA, TUV, UL | 13000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9GV0812P4J031FAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 60.7 CFM (1.70m³/min) | 0.440 in H2O (109.6 Pa) | Ball | 0.276 lb (125.19 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.40mm | 46.0dB(A) | 5.6 W | CSA, TUV, UL | 4500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9GV0812P4K03FAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 74.8 CFM (2.09m³/min) | 0.690 in H2O (171.8 Pa) | Ball | 0.276 lb (125.19 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.40mm | 52.0dB(A) | 10.4 W | CSA, TUV, UL | 5600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9GV0812P4K031FAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 74.8 CFM (2.09m³/min) | 0.690 in H2O (171.8 Pa) | Ball | 0.276 lb (125.19 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.40mm | 52.0dB(A) | 10.4 W | CSA, TUV, UL | 5600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

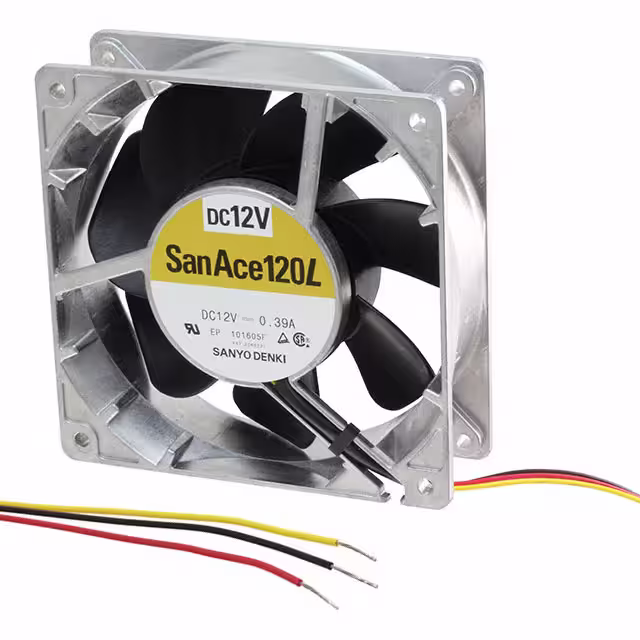

9LB1212H101FAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120L | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 39.0dB(A) | 4.68 W | CSA, TUV, UR | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9LB1424H501FAN AXIAL 140X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 140L | Box | Obsolete | 24VDC | Square - 140mm L x 140mm H | 208.5 CFM (5.84m³/min) | 0.520 in H2O (129.5 Pa) | Ball | 1.3 lbs (610.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 49.0dB(A) | 14.4 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
OD7025-12HBFAN AXIAL 70X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD7025 | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | - | - | Ball | - | Tubeaxial | - | 25.00mm | - | - | CE | - | - | 2 Wire Leads | - |
|
|
OD7025-12LBFAN AXIAL 70X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD7025 | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | - | - | Ball | - | Tubeaxial | - | 25.00mm | - | - | CE | - | - | 2 Wire Leads | - |
|
|
OD7025-12MBFAN AXIAL 70X25MM 12VDC WIRE |
0 | - |
|
数据表 |
OD7025 | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | - | - | Ball | - | Tubeaxial | - | 25.00mm | - | - | CE | - | - | 2 Wire Leads | - |
|
OD8015-12LLBFAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
OD8015 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | - | 15.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
OD8020-05HBFAN AXIAL 80X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD8020 | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | - | 20.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
OD8020-12HHBFAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
OD8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | - | 20.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
OD8020-12LLBFAN AXIAL 80X20MM 12VDC WIRE |
0 | - |
|
数据表 |
OD8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | - | 20.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
OD9220-12HSFAN AXIAL 92X20MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9220 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 32.0 CFM (0.896m³/min) | 0.130 in H2O (32.4 Pa) | Sleeve | - | Tubeaxial | - | 20.00mm | 33.0dB | - | cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD9220-12MSFAN AXIAL 92X20MM 12VDC WIRE |
0 | - |
|
数据表 |
OD9220 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 28.0 CFM (0.784m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | - | Tubeaxial | - | 20.00mm | 31.0dB | - | cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD9220-24HSFAN AXIAL 92X20MM 24VDC WIRE |
0 | - |
|
数据表 |
OD9220 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 32.0 CFM (0.896m³/min) | 0.125 in H2O (31.1 Pa) | Sleeve | - | Tubeaxial | - | 20.00mm | 33.0dB | - | cURus, TUV | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD9220-24MSFAN AXIAL 92X20MM 24VDC WIRE |
0 | - |
|
数据表 |
OD9220 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 28.0 CFM (0.784m³/min) | 0.110 in H2O (27.4 Pa) | Sleeve | - | Tubeaxial | - | 20.00mm | 31.0dB | - | cURus, TUV | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
