直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD3506-12HBFAN AXIAL 35X6MM BALL 12VDC WIRE |
0 | - |
|
数据表 |
OD3506 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | - | - | Ball | - | Tubeaxial | - | 6.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
OD3506-12LBFAN AXIAL 35X6MM BALL 12VDC WIRE |
0 | - |
|
数据表 |
OD3506 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | - | - | Ball | - | Tubeaxial | - | 6.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
OD3506-12MBFAN AXIAL 35X6MM BALL 12VDC WIRE |
0 | - |
|
数据表 |
OD3506 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | - | - | Ball | - | Tubeaxial | - | 6.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
OD3510-05LBFAN AXIAL 35X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD3510 | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | - | - | Ball | - | Tubeaxial | - | 10.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
OD3510-12LBFAN AXIAL 35X10MM 12VDC WIRE |
0 | - |
|
数据表 |
OD3510 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | - | - | Ball | - | Tubeaxial | - | 10.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
OD3828-12LBFAN AXIAL 38X28MM 12VDC WIRE |
0 | - |
|
数据表 |
OD3828 | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | - | 0.260 in H2O (64.8 Pa) | Ball | - | Tubeaxial | - | 28.00mm | 28.0dB | - | cURus | 7000 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
|
OD3828-12MBFAN AXIAL 38X28MM 12VDC WIRE |
0 | - |
|
数据表 |
OD3828 | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | - | 0.440 in H2O (109.6 Pa) | Ball | - | Tubeaxial | - | 28.00mm | 37.0dB | - | cURus | 9000 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
|
OD4006-05HBFAN AXIAL 40X6MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD4006 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | - | 6.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
OD4006-05LBFAN AXIAL 40X6MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD4006 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | - | 6.00mm | - | - | - | - | - | 2 Wire Leads | - |
|

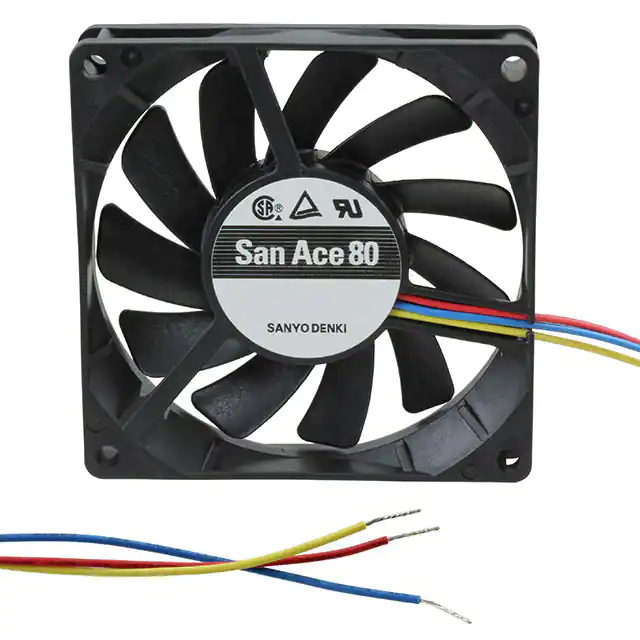

109P0824M701FAN AXIAL 80X15MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.1 CFM (0.563m³/min) | 0.051 in H2O (12.7 Pa) | Ball | 0.15 lb (68.04 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 21.0dB(A) | 1.2 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
109P0824M7D01FAN AXIAL 80X15MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.1 CFM (0.563m³/min) | 0.051 in H2O (12.7 Pa) | Ball | 0.15 lb (68.04 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 21.0dB(A) | 1.2 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
109P0912F402FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 43.8 CFM (1.23m³/min) | 0.130 in H2O (32.5 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | - | 25.00mm | 30.0dB(A) | 1.68 W | CSA, TUV, UR | 2450 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
109P0912H401FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 33.0dB(A) | 2.52 W | CSA, TUV, UR | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0912H4D01FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 33.0dB(A) | 2.52 W | CSA, TUV, UR | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0912J401FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 71.6 CFM (2.00m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 47.0dB(A) | 6.72 W | CSA, TUV, UR | 4300 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P0912W402FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | - | 25.00mm | 33.0dB(A) | 2.52 W | CSA, TUV, UR | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109P0924H401FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 33.0dB(A) | 2.88 W | CSA, TUV, UR | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0924H402FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | - | 25.00mm | 33.0dB(A) | 2.88 W | CSA, TUV, UR | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

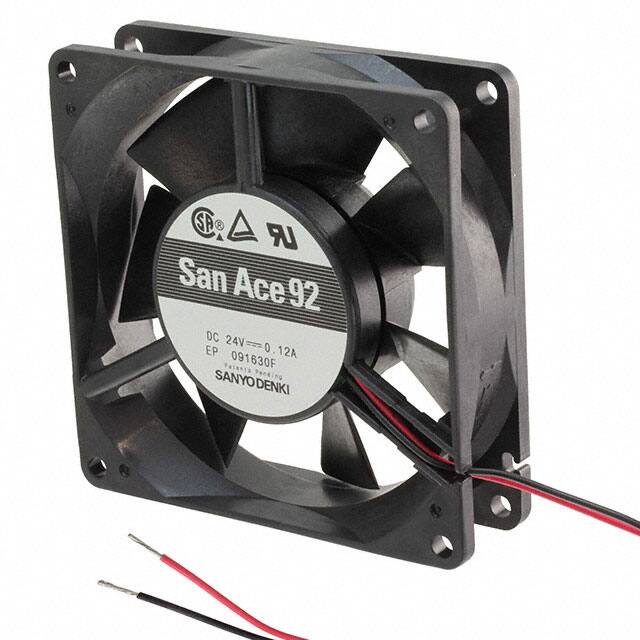

109P0924H4021FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | - | 25.00mm | 33.0dB(A) | 2.88 W | CSA, TUV, UR | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109P0924W4D01FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 33.0dB(A) | 2.88 W | CSA, TUV, UR | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
