直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

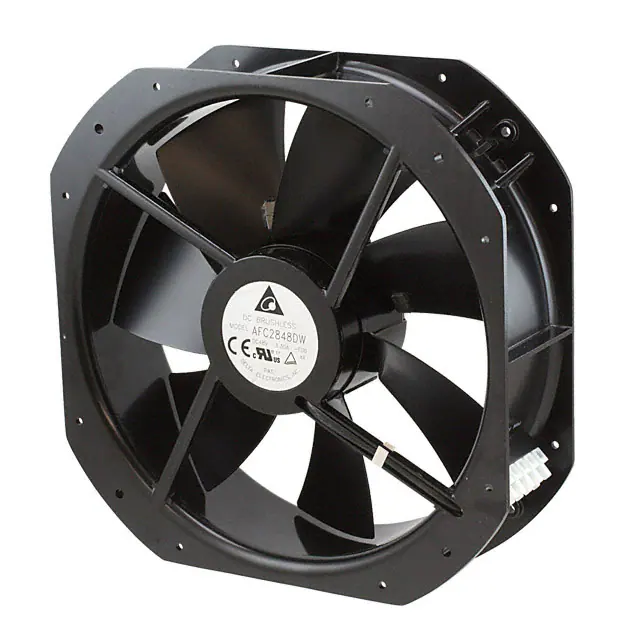

AFC2848DW-F00FAN AXIAL 280X80MM 48VDC WIRE |
0 | - |
|
数据表 |
AFC | Bulk | Obsolete | 48VDC | Square - 280mm L x 280mm H | 1199.6 CFM (33.59m³/min) | 0.972 in H2O (242.1 Pa) | Ball | 5.5 lbs (2.5 kg) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 80.00mm | 70.0dB(A) | 105.6 W | CE, TUV, UL | 2750 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
2218/2TDODC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2214/2TDODC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 225mm L x 225mm H | 589.0 CFM (16.49m³/min) | - | Ball | - | Tubeaxial | - | 80.00mm | 59.0dB(A) | 50 W | - | 3000 RPM | -4 ~ 140°F (-20 ~ 60°C) | Terminal Block | - |
|
|
W1G250-CI35-52FAN AXIAL 320X85MM 24VDC WIRE |
0 | - |
|
数据表 |
W1G250 | - | Obsolete | 24VDC | Round - 320mm Dia | 1054.0 CFM (29.51m³/min) | - | Ball | 4 lbs (1.8 kg) | Tubeaxial | - | 85.00mm | 70.0dB(A) | - | - | - | - | 2 Wire Leads | - |
|
|
A1G280-AA79-11FAN AXIAL 292X77.7MM 12VDC WIRE |
0 | - |
|
数据表 |
A1G280 | Bulk | Active | 12VDC | Round - 292mm Dia | 1065.0 CFM (29.82m³/min) | - | Ball | 3.5 lbs (1.6 kg) | Tubeaxial | Speed Sensor (Tach) | 77.70mm | 63.0dB(A) | 90 W | - | 2350 RPM | - | 3 Wire Leads | - |
|
|
R1G175-AB63-41DC BACKWARD-CURVED MOTORIZED IMP |
0 | - |
|
数据表 |
R1G175 | Bulk | Active | 24VDC | Round - 175mm Dia | - | - | Ball | - | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 69.00mm | - | 34 W | CSA, UL | 3100 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads | IP44 |
|
|
RER175-42/18/2TDPUS-FORCE EC RADIAL BLOWER |
0 | - |
|
数据表 |
RER175 | Bulk | Active | 48VDC | Round - 175mm Dia | 577 CFM (16.16m³/min) | - | Ball | - | Tubeaxial | - | 69.00mm | - | 166 W | - | 5400 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
G2G120-AR31-01FAN BLOWER 174X115.0MM 12VDC |
0 | - |
|
数据表 |
G2G120 | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 174mm L x 190mm H | 130.0 CFM (3.64m³/min) | - | Ball | 4.5 lbs (2 kg) | Blower | - | 115.0mm | 58.0dB(A) | 40 W | - | - | - | 2 Wire Leads | - |
|
|
R1G250-AQ37-52FAN IMP MTRZD 250X89MM 48VDC |
0 | - |
|
数据表 |
R1G250 | Bulk | Active | 48VDC | Round - 250mm Dia | - | - | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 89.00mm | 73.0dB(A) | 105 W | CCC, CSA, EAC, UL | 2600 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads with Splice Terminals | IP42 |
|
|
R1G250-AQ21-52DC BACKWARD-CURVED MOTORIZED IMP |
0 | - |
|
数据表 |
R1G250 | Bulk | Active | 24VDC | Round - 255mm Dia | - | - | Ball | - | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 89.00mm | - | 93 W | CSA, EAC, UL | 2540 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads | IP42 |
|
MSI3116H48B-BBRFAN IMP MTRZD 315X161.0MM 48VDC |
0 | - |
|
数据表 |
MSI3116 | Box | Active | 48VDC | Round - 315mm Dia | 1675.0 CFM (46.90m³/min) | 3.150 in H2O (784.7 Pa) | Ball | 6.6 lbs (3 kg) | Motorized Impellers | Auto Restart | 161.0mm | 76.0dB(A) | - | CE, cUL, TUV, UL | 2100 RPM | - | 2 Wire Leads | - |
|
|
MSI3116H48B1-BBRFAN IMP MTRZD 315X161.0MM 48VDC |
0 | - |
|
数据表 |
MSI3116 | Box | Active | 48VDC | Round - 315mm Dia | 1675.0 CFM (46.90m³/min) | 3.150 in H2O (784.7 Pa) | Ball | 6.6 lbs (3 kg) | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 161.0mm | 76.0dB(A) | - | CE, cUL, TUV, UL | 2100 RPM | - | 3 Wire Leads | - |
|
|
MSI3116H48B2-BBRFAN IMP MTRZD 315X161.0MM 48VDC |
0 | - |
|
数据表 |
MSI3116 | Box | Active | 48VDC | Round - 315mm Dia | 1675.0 CFM (46.90m³/min) | 3.150 in H2O (784.7 Pa) | Ball | 6.6 lbs (3 kg) | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 161.0mm | 76.0dB(A) | - | CE, cUL, TUV, UL | 2100 RPM | - | 3 Wire Leads | - |
|
|
A1G200-AH77-52DC AXIAL FAN |
0 | - |
|
数据表 |
A1G200 | Bulk | Active | 24VDC | Round - 200mm Dia | - | 0.482 in H2O (120.0 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 65.00mm | - | 50 W | CSA, UL | 2950 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads | IP42 |
|
|
A1G200-AI77-52DC AXIAL FAN |
0 | - |
|
数据表 |
A1G200 | Bulk | Active | 24VDC | Round - 197mm Dia | - | 0.482 in H2O (120.0 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 65.00mm | - | 55 W | CSA, UL | 2950 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Wire Leads | IP42 |
|
|
MSI3116H48B1+6-BBRFAN IMP MTRZD 315X161.0MM 48VDC |
0 | - |
|
数据表 |
MSI3116 | Box | Active | 48VDC | Round - 315mm Dia | 1675.0 CFM (46.90m³/min) | 3.150 in H2O (784.7 Pa) | Ball | 6.6 lbs (3 kg) | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 161.0mm | 76.0dB(A) | - | CE, cUL, TUV, UL | 2100 RPM | - | 4 Wire Leads | - |
|
|
D3G146-AA31-21FAN BLOWER 206X270.0MM 48VDC |
0 | - |
|
数据表 |
D3G146 | - | Obsolete | 48VDC | Rectangular/Rounded - 206mm L x 219mm H | 506.0 CFM (14.17m³/min) | - | Ball | 9 lbs (4.1 kg) | Blower | - | 270.0mm | 58.0dB(A) | 86 W | - | - | - | 2 Wire Leads | - |
|
K3G097-BP46-01FAN BLOWER CF 144.3X335MM 26VDC |
0 | - |
|
数据表 |
K3G097BP | Bulk | Active | 26VDC | Rectangular/Rounded - 144.3mm L x 163.5mm H | 662.1 CFM (18.54m³/min) | - | Ball | 4.5 lbs (2 kg) | Blower, Centrifugal (Dual) | Locked Rotor Protection, PWM Control, Thermal Overload Protector (TOP) | 335.0mm | 79.0dB(A) | 310 W | EAC | 3600 RPM | -40 ~ 185°F (-40 ~ 85°C) | - | - |
|
|
R1G225-AG15-11FAN IMP MTRZD 225X107.0MM 48VDC |
0 | - |
|
数据表 |
R1G225 | Bulk | Active | 48VDC | Round - 225mm Dia | - | - | Ball | - | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 107.0mm | - | 115 W | CSA, UL | 2850 RPM | -13 ~ 140°F (-25 ~ 60°C) | 4 Position Rectangular Connector | IP44 |
|
K3G097-AK28-20FAN BLOWER CF 139.5X351MM 26VDC |
0 | - |
|
数据表 |
K3G097AK | Bulk | Active | 26VDC | Rectangular/Rounded - 139.5mm L x 170.5mm H | 505.0 CFM (14.30m³/min) | - | Ball | 4.7 lbs (2.1 kg) | Blower, Centrifugal (Dual) | Locked Rotor Protection, PWM Control, Thermal Overload Protector (TOP) | 351.0mm | - | 345 W | - | 3500 RPM | -40 ~ 185°F (-40 ~ 85°C) | 6 Position Rectangular Connector | - |
