直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109E1748C501FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Round - 172mm Dia | 350.0 CFM (9.80m³/min) | 1.237 in H2O (308.0 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 60.0dB(A) | 57.6 W | CSA, TUV, UL | 4800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E5748K501FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 60.0dB(A) | 33.6 W | CSA, TUV, UL | 4100 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
RER120-26/14/2TDMPFAN IMP MTRZD 120X54MM 24VDC |
0 | - |
|
数据表 |
RER120TD, S-Force | Bulk | Active | 24VDC | Round - 120mm Dia | 188.0 CFM (5.26m³/min) | - | Ball | 0.95 lb (430.91 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 54.00mm | - | 51 W | - | 5200 RPM | -4 ~ 140°F (-20 ~ 60°C) | 4 Wire Leads | - |
|
|
9WE5748K501FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172W | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.976 in H2O (243.0 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Speed Sensor (Tach) | 51.00mm | 60.0dB(A) | 33.6 W | CSA, TUV, UL | 4100 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
OD180APL-48HTBIP68FAN AXIAL 180X65MM 48VDC TERM |
0 | - |
|
数据表 |
OD180APL-IP68 | Box | Active | 48VDC | Square - 180mm L x 180mm H | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 65.00mm | 63.2dB(A) | 50.2 W | CE, cURus, TUV, UR | 3375 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | IP68 - Dust Tight, Waterproof |
|
|
4114N/17HH00077FAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 153.0 CFM (4.28m³/min) | 1.000 in H2O (249.1 Pa) | Ball | - | Tubeaxial | Alarm Sensor, Auto Restart, Locked Rotor Protection | 38.00mm | 60.0dB(A) | 12 W | CE, CSA, EAC, UL, VDE | 5000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 3 Wire Leads | - |
|
|
9EC2024H0D01FAN AXIAL 200X70MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 200 | Box | Active | 24VDC | Round - 200mm Dia | 388.0 CFM (10.86m³/min) | 1.446 in H2O (360.2 Pa) | Ball | 3.9 lbs (1.8 kg) | Tubeaxial | Locked Rotor Sensor | 70.00mm | 60.0dB(A) | 48 W | CSA, TUV, UL | 3600 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
9EC2048A0D01FAN AXIAL 200X70MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 200 | Box | Active | 48VDC | Round - 200mm Dia | 519.0 CFM (14.53m³/min) | 2.570 in H2O (640.1 Pa) | Ball | 3.9 lbs (1.8 kg) | Tubeaxial | Locked Rotor Sensor | 70.00mm | 68.0dB(A) | 105.6 W | CSA, TUV, UL | 4800 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
9EC2024H001FAN AXIAL 200X70MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 200 | Box | Active | 24VDC | Round - 200mm Dia | 388.0 CFM (10.86m³/min) | 1.446 in H2O (360.2 Pa) | Ball | 3.9 lbs (1.8 kg) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 70.00mm | 60.0dB(A) | 48 W | CSA, TUV, UL | 3600 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
9HV5724H5002172X51MM 24V, HIGH STATIC PRESSU |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 51.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
ODB22071-48HB10AFAN IMP MTRZD 221.5X71MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Round - 221.5mm Dia | 618.0 CFM (17.30m³/min) | 2.410 in H2O (600.0 Pa) | Ball | 3.1 lbs (1.4 kg) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 71.00mm | 68.0dB | 130 W | CE, cURus, TUV, UR | 3150 RPM | 14 ~ 149°F (-10 ~ 65°C) | 4 Wire Leads | - |
|
OD180APL-12HTBIP69KFAN AXIAL 180X65MM 12VDC TERM |
0 | - |
|
数据表 |
OD180APL-IP69K | Box | Active | 12VDC | Square - 180mm L x 180mm H | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 65.00mm | 63.2dB(A) | 50.4 W | CE, cURus, TUV, UR | 3375 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof |
|
|
OD180APL-24HTBIP69KFAN AXIAL 180X65MM 24VDC TERM |
0 | - |
|
数据表 |
OD180APL-IP69K | Box | Active | 24VDC | Square - 180mm L x 180mm H | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 65.00mm | 63.2dB(A) | 60.2 W | CE, cURus, TUV, UR | 3375 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof |
|
|
9HV5724H5D001FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 434.0 CFM (12.15m³/min) | 4.020 in H2O (1001.3 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | 77.0dB(A) | 120 W | CSA, TUV, UL | 8000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
W1G180-AA03-09FAN AXIAL 200X70MM 48VDC WIRE |
0 | - |
|
数据表 |
W1G180 | - | Obsolete | 48VDC | Round - 200mm Dia | 377.0 CFM (10.56m³/min) | - | Ball | 4.2 lbs (1.9 kg) | Tubeaxial | - | 70.00mm | 59.0dB(A) | 36 W | CE, CSA, UL, VDE | - | - | 2 Wire Leads | - |
|

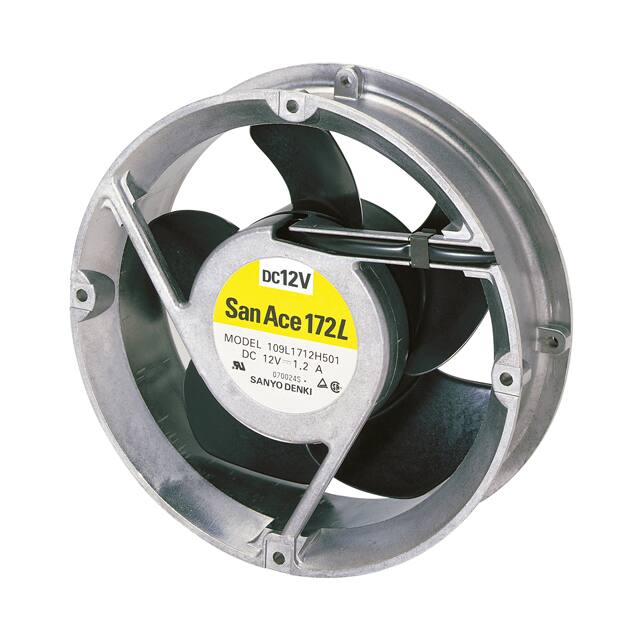

109L1712H501FAN AXIAL 172X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 12VDC | Round - 172mm Dia | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Speed Sensor (Tach) | 51.00mm | 47.0dB(A) | 14.4 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L1724H501FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 24VDC | Round - 172mm Dia | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Speed Sensor (Tach) | 51.00mm | 47.0dB(A) | 13.92 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L1748H501FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 48VDC | Round - 172mm Dia | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Speed Sensor (Tach) | 51.00mm | 47.0dB(A) | 13.44 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

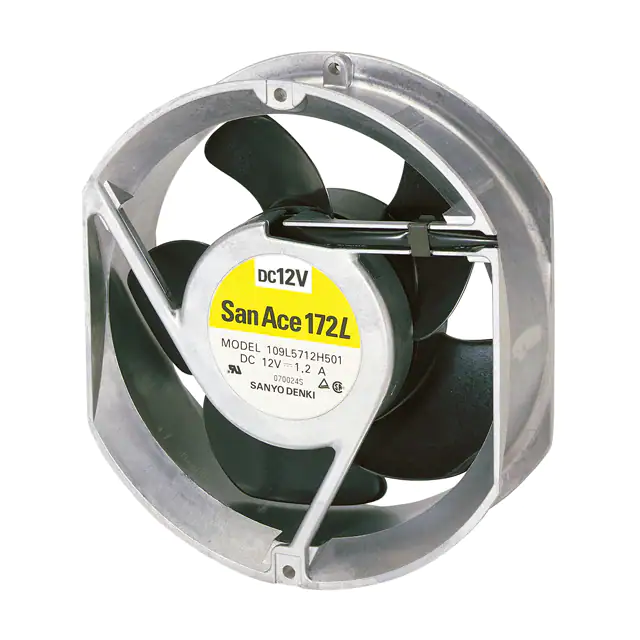

109L5712H501FAN AXIAL 172X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Speed Sensor (Tach) | 51.00mm | 52.0dB(A) | 14.4 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109L5748M501FAN AXIAL 172X51MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 172L | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Speed Sensor (Tach) | 51.00mm | 41.0dB(A) | 5.28 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
