直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109E5724F502FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 180.0 CFM (5.04m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | 47.0dB(A) | 8.4 W | CSA, TUV, UL | 2500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109E5724M502FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | 41.0dB(A) | 4.8 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109E1712F502FAN AXIAL 172X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 180.0 CFM (5.04m³/min) | 0.382 in H2O (95.1 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | 42.0dB(A) | 10.8 W | CSA, TUV, UL | 2500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109E1712M502FAN AXIAL 172X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Protection | 51.00mm | 36.0dB(A) | 5.76 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

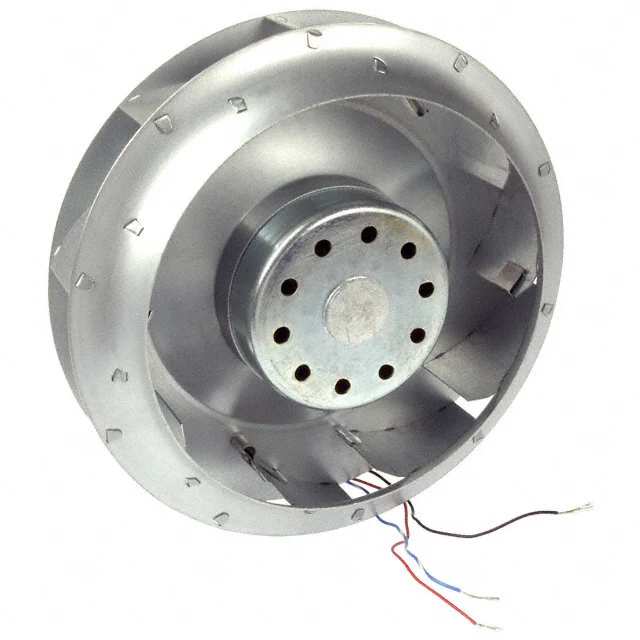

19039843AFAN IMP MTR 175X53MM DD692148K1A |
0 | - |
|
数据表 |
Diplomat | - | Active | 48VDC | Round - 175mm Dia | 250.0 CFM (7.00m³/min) | 1.590 in H2O (396.1 Pa) | Ball | 2.5 lbs (1.1 kg) | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 53.00mm | 67.2dB(A) | 31.2 W | CE, cUL, UL | 3250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
PFE0514B1-000U-A99FAN AXIAL 140X50.8MM 48VDC WIRE |
0 | - |
|
数据表 |
PFE | Bulk | Active | 48VDC | Square - 140mm L x 140mm H | 250.3 CFM (7.01m³/min) | 1.430 in H2O (356.2 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart | 50.80mm | 61.4dB(A) | 22.56 W | CE, CUR, TUV, UL | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
109E5712F501FAN AXIAL 172X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 180.0 CFM (5.04m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 47.0dB(A) | 8.16 W | CSA, TUV, UL | 2500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E5724F501FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 180.0 CFM (5.04m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 47.0dB(A) | 8.4 W | CSA, TUV, UL | 2500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E5724M501FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 41.0dB(A) | 4.8 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E1712H5D01FAN AXIAL 172X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | 47.0dB(A) | 14.4 W | CSA, TUV, UL | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E1712F501FAN AXIAL 172X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 180.0 CFM (5.04m³/min) | 0.382 in H2O (95.1 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 42.0dB(A) | 10.8 W | CSA, TUV, UL | 2500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E1712M501FAN AXIAL 172X51MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 12VDC | Round - 172mm Dia | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 36.0dB(A) | 5.76 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E1724F501FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 180.0 CFM (5.04m³/min) | 0.382 in H2O (95.1 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 42.0dB(A) | 8.4 W | CSA, TUV, UL | 2500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E1724M501FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Round - 172mm Dia | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (780.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | 36.0dB(A) | 4.8 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109E5724M5D01FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 148.0 CFM (4.14m³/min) | 0.271 in H2O (67.6 Pa) | Ball | 1.7 lbs (760.0 g) | Tubeaxial | Locked Rotor Sensor | 51.00mm | 41.0dB(A) | 4.8 W | CSA, TUV, UL | 2000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
55616.37000FAN BLOWER CF 383X108.4MM 24VDC |
0 | - |
|
数据表 |
55616 | - | Obsolete | 24VDC | Rectangular - 383mm L x 91mm H | 163.0 CFM (4.56m³/min) | - | Sleeve | - | Blower, Cross Flow | - | 108.4mm | 50.0dB(A) | 12 W | - | - | - | 2 Terminals | - |
|
|
9GT0912M1002FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92T | Box | Active | 12VDC | Square - 92mm L x 92mm H | 116.6 CFM (3.26m³/min) | 1.260 in H2O (313.9 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 58.0dB(A) | 18 W | CSA, TUV, UL | 8100 RPM | -40 ~ 185°F (-40 ~ 85°C) | 2 Wire Leads | - |
|
|
9GT0924M1002FAN AXIAL 92X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92T | Box | Active | 24VDC | Square - 92mm L x 92mm H | 116.6 CFM (3.26m³/min) | 1.260 in H2O (313.9 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 58.0dB(A) | 18 W | CSA, TUV, UL | 8100 RPM | -40 ~ 185°F (-40 ~ 85°C) | 2 Wire Leads | - |
|
|
19040084AFAN CARAVEL DC FAN |
0 | - |
|
数据表 |
Caravel | - | Active | 24VDC | Round - 254mm Dia | 550.0 CFM (15.40m³/min) | - | Ball | - | Tubeaxial | - | 88.90mm | - | 1650 W | - | - | - | 2 Wire Leads | - |
|
W2G115-AD19-01FAN AXIAL 127X38MM 48VDC WIRE |
0 | - |
|
数据表 |
W2G115 | Bulk | Obsolete | 48VDC | Square - 127mm L x 127mm H | 118.0 CFM (3.30m³/min) | - | Ball | 1.3 lbs (589.7 g) | Tubeaxial | - | 38.00mm | 44.0dB(A) | 4.6 W | - | - | - | 2 Wire Leads | - |
