直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WS0912M402FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 35.7 CFM (1.00m³/min) | 0.094 in H2O (23.5 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | - | 25.00mm | 27.0dB(A) | 1.2 W | CSA, TUV, UL | 2100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
9WS0924F402FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 41.7 CFM (1.17m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | - | 25.00mm | 30.0dB(A) | 1.68 W | CSA, TUV, UL | 2450 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
9WS0924L402FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 28.2 CFM (0.790m³/min) | 0.067 in H2O (16.7 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | - | 25.00mm | 23.0dB(A) | 1.2 W | CSA, TUV, UL | 1700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
9WS0924M402FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 35.7 CFM (1.00m³/min) | 0.094 in H2O (23.5 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | - | 25.00mm | 27.0dB(A) | 1.44 W | CSA, TUV, UL | 2100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
9HV1248H1002FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 254.0 CFM (7.11m³/min) | 4.220 in H2O (1051.1 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 72.0dB(A) | 67 W | CSA, TUV, UL | 10000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
GFB1248VHW-TP15FAN AXIAL DUAL 120X76.2MM 52VDC |
0 | - |
|
数据表 |
GFB | Box | Obsolete | 52VDC | Square - 120mm L x 120mm H | 220.3 CFM (6.17m³/min) | 0.592 in H2O (147.5 Pa) | Ball | 1.3 lbs (589.7 g) | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 76.20mm | 59.0dB(A) | 20.8 W | CE, CSA, UL, VDE | 3550 Front, 3200 Rear | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads per Fan | - |
|
|
9WS0912F401FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 41.7 CFM (1.17m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 30.0dB(A) | 1.56 W | CSA, TUV, UL | 2450 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
9WS0912F4D01FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 41.7 CFM (1.17m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 30.0dB(A) | 1.56 W | CSA, TUV, UL | 2450 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP54 - Dust Protected, Water Resistant |
|

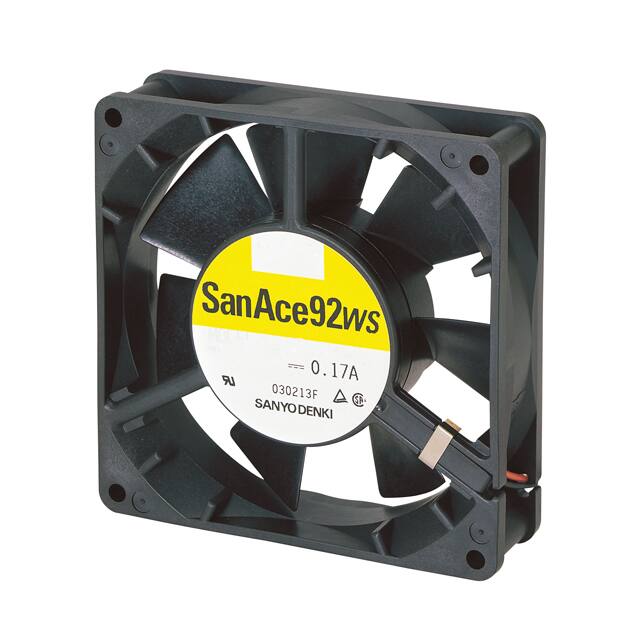

9WS0912H401FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 48.7 CFM (1.36m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 33.0dB(A) | 2.04 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
9WS0912L401FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 28.2 CFM (0.790m³/min) | 0.067 in H2O (16.7 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 23.0dB(A) | 720 mW | CSA, TUV, UL | 1700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
9WS0912M401FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WS | Box | Active | 12VDC | Square - 92mm L x 92mm H | 35.7 CFM (1.00m³/min) | 0.094 in H2O (23.5 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 27.0dB(A) | 1.2 W | CSA, TUV, UL | 2100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
9WS0924F401FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 41.7 CFM (1.17m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 30.0dB(A) | 1.68 W | CSA, TUV, UL | 2450 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
9WS0924H4D01FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 48.7 CFM (1.36m³/min) | 0.181 in H2O (45.1 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 33.0dB(A) | 2.4 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
9WS0924L401FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 28.2 CFM (0.790m³/min) | 0.067 in H2O (16.7 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 23.0dB(A) | 1.2 W | CSA, TUV, UL | 1700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
9WS0924M401FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WS | Box | Active | 24VDC | Square - 92mm L x 92mm H | 35.7 CFM (1.00m³/min) | 0.094 in H2O (23.5 Pa) | Ball | 0.331 lb (150.14 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 27.0dB(A) | 1.44 W | CSA, TUV, UL | 2100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
9HV1248H1001FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 254.0 CFM (7.11m³/min) | 4.220 in H2O (1051.1 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 72.0dB(A) | 67 W | CSA, TUV, UL | 10000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
15050VA-48P-GA-00DC AXIAL FAN |
0 | - |
|
数据表 |
15050VA | Box | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 282.6 CFM (8.00m³/min) | 0.931 in H2O (232.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 50.80mm | 62.0dB | 26.4 W | - | 3750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
|
15050VA-48Q-GA-00DC AXIAL FAN |
0 | - |
|
数据表 |
15050VA | Box | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 304.0 CFM (8.51m³/min) | 1.072 in H2O (267.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 50.80mm | 64.0dB | 31.2 W | - | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
|
15050VA-24P-GA-00DC AXIAL FAN |
0 | - |
|
数据表 |
15050VA | Box | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 282.6 CFM (8.00m³/min) | 0.931 in H2O (232.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 50.80mm | 62.0dB | 26.4 W | - | 3750 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
|
15050VA-24Q-GA-00DC AXIAL FAN |
0 | - |
|
数据表 |
15050VA | Box | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 304.0 CFM (8.51m³/min) | 1.072 in H2O (267.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 50.80mm | 64.0dB | 31.2 W | - | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
