直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9CRB0412P5S30140X56MM 12V,COUNTER ROTATING,LOW |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 31.8 CFM (0.890m³/min) | 4.197 in H2O (1045.4 Pa) | Ball | - | Tubeaxial (Dual) | Speed Sensor (Tach) | 56.00mm | 68.0dB(A) | 16.8 W | cURus, TUV | 22000 Front, 19700 Rear | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
4715SL-04W-B20-D00FAN AXIAL 119X38.4MM 12VDC WIRE |
0 | - |
|
数据表 |
4715SL | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 102.0 CFM (2.86m³/min) | 0.305 in H2O (75.9 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | - | 38.40mm | 45.0dB | 2 W | CE, CSA, UL, VDE | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4715SL-04W-B30-D00FAN AXIAL 119X38.4MM 12VDC WIRE |
0 | - |
|
数据表 |
4715SL | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 123.0 CFM (3.44m³/min) | 0.409 in H2O (102.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | - | 38.40mm | 49.5dB | 7 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4715SL-07W-B20-D00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 | - |
|
数据表 |
4715SL | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 102.0 CFM (2.86m³/min) | - | Ball | 0.882 lb (400.07 g) | Tubeaxial | - | 38.40mm | - | 2 W | CE, CSA, UL, VDE | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4715SL-07W-B30-D00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 | - |
|
数据表 |
4715SL | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 123.0 CFM (3.44m³/min) | - | Ball | 0.882 lb (400.07 g) | Tubeaxial | - | 38.40mm | - | 7 W | CE, CSA, UL, VDE | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4715SL-07W-B50-D00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 | - |
|
数据表 |
4715SL | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 162.0 CFM (4.54m³/min) | 0.694 in H2O (173.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | - | 38.40mm | 56.5dB | 17.8 W | CE, CSA, UL, VDE | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
4715SL-07W-B60-D00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 | - |
|
数据表 |
4715SL | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 181.0 CFM (5.07m³/min) | 0.855 in H2O (213.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | - | 38.40mm | 59.5dB | 23.5 W | CE, CSA, UL, VDE | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9WF0924H202FAN AXIAL 92X32MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 86.5 CFM (2.42m³/min) | 0.800 in H2O (199.3 Pa) | Ball | 0.408 lb (185.07 g) | Tubeaxial | Locked Rotor Protection | 32.00mm | 56.0dB(A) | 8.4 W | CSA, TUV, UL | 6500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | Oil Resistant |
|
FFB1324SHE-BFAN AXIAL 127X38MM 24VDC WIRE |
0 | - |
|
数据表 |
FFB | Tray | Obsolete | 24VDC | Square - 127mm L x 127mm H | 180.0 CFM (5.04m³/min) | 0.642 in H2O (159.9 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 56.5dB(A) | 20.16 W | CE, CSA, UL, VDE | 3450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9CRB0412P5J201FAN AXIAL DUAL 40X56MM 12VDC |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 25.1 CFM (0.703m³/min) | 2.610 in H2O (650.1 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial (Dual) | Counter-Rotating, PWM Control, Speed Sensor (Tach) | 56.00mm | 61.0dB(A) | 8.64 W | cURus, TUV | 17300 Front, 16000 Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|
|
PMD1212PMB2-A.(2).GNFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PMD | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 170.0 CFM (4.76m³/min) | 0.540 in H2O (134.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 51.0dB(A) | 14.4 W | - | 3800 RPM | - | 2 Wire Leads | - |
|
|
612N/2MLFAN AXIAL 60X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
600N | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 14.0 CFM (0.392m³/min) | - | Ball | 0.19 lb (86.18 g) | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 35.0dB(A) | 800 mW | - | - | 158°F (70°C) | 3 Wire Leads | - |
|
|
9WF0924H2D01FAN AXIAL 92X32MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 86.5 CFM (2.42m³/min) | 0.800 in H2O (199.3 Pa) | Ball | 0.408 lb (185.07 g) | Tubeaxial | Locked Rotor Sensor | 32.00mm | 56.0dB(A) | 8.4 W | CSA, TUV, UL | 6500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | Oil Resistant |
|
|
9WF0924H2011FAN AXIAL 92X32MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 86.5 CFM (2.42m³/min) | 0.800 in H2O (199.3 Pa) | Ball | 0.408 lb (185.07 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 56.0dB(A) | 8.4 W | CSA, TUV, UL | 6500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | Oil Resistant |
|
|
9WF0924S2011FAN AXIAL 92X32MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 92WF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 98.9 CFM (2.78m³/min) | 1.020 in H2O (255.0 Pa) | Ball | 0.408 lb (185.07 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 58.0dB(A) | 12 W | CSA, TUV, UL | 7300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | Oil Resistant |
|

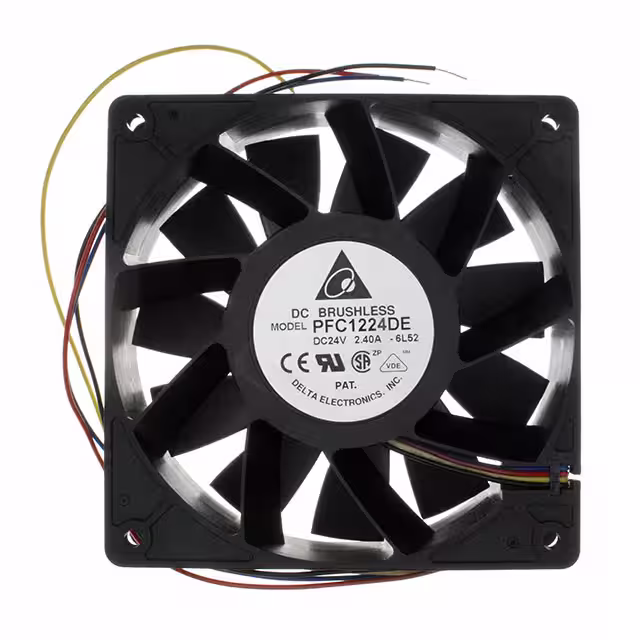

PFC1224DE-6L52FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
PFC | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 66.5dB(A) | 48 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

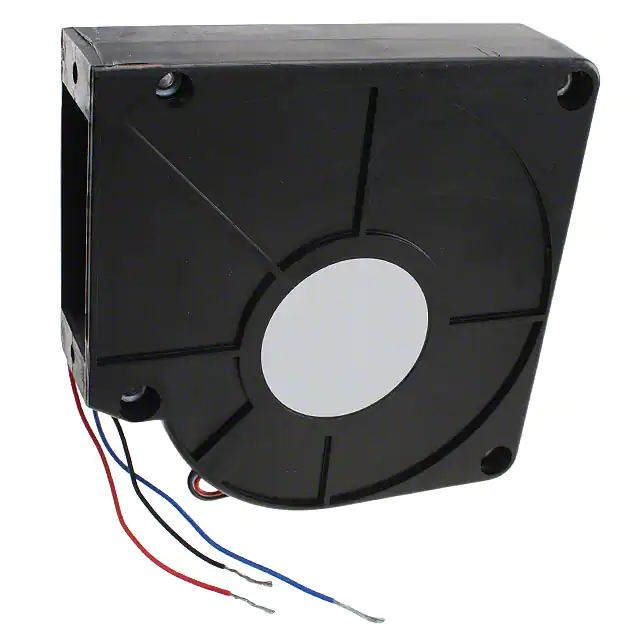

19030638AFAN BLOWER 120.7X31MM 48V BD48B7 |
0 | - |
|
数据表 |
Biscuit | Box | Active | 48VDC | Square/Rounded - 120.7mm L x 120.7mm H | 25.0 CFM (0.700m³/min) | 0.870 in H2O (216.7 Pa) | Sleeve | 0.619 lb (280.77 g) | Blower | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 31.00mm | 51.2dB(A) | 12 W | CE, UL | 2950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD127-12HBFAN AXIAL 127X38.5MM 12VDC WIRE |
0 | - |
|
数据表 |
OD127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 161.0 CFM (4.51m³/min) | 0.460 in H2O (114.6 Pa) | Ball | - | Tubeaxial | - | 38.50mm | 56.0dB | - | cURus, TUV | 3500 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
PFB0912DHE-T500FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | 0.553 lb (250.84 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 66.5dB(A) | 37.2 W | CE, CSA, UL, VDE | 8000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
4312MSFAN AXIAL 119X32MM 12VDC WIRE |
0 | - |
|
数据表 |
4300 | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 82.0 CFM (2.30m³/min) | - | Ball | 0.5 lb (226.8 g) | Tubeaxial | Speed Sensor (Tach) | 32.00mm | 39.0dB(A) | 2.6 W | CE, CSA, UL, VDE | - | - | 3 Wire Leads | - |
