交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
11925PB-B2K-EA-00FAN 119MM X 25MM 200VAC TERMINAL |
0 | - |
|
数据表 |
11925PB | Bulk | Active | 220VAC | Square - 119mm L x 119mm H | 53.0 CFM (1.48m³/min) | 0.086 in H2O (21.5 Pa) | Ball | - | Tubeaxial | - | 25.50mm | 30.0dB | 8.00W | - | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
11925PB-B0L-AA-00FAN 200VAC 119X25MM WR |
0 | - |
|
数据表 |
11925PB | Bulk | Active | 200VAC | Square - 119mm L x 119mm H | 71.4 CFM (2.00m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 38.0dB | 11.00W | - | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
11925PB-B2L-AA-00FAN 220VAC 119X25MM WR |
0 | - |
|
数据表 |
11925PB | Bulk | Active | 220VAC | Square - 119mm L x 119mm H | 71.4 CFM (2.00m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 38.0dB | 11.00W | - | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
11925PB-A0L-AA-00FAN 100VAC 119X25MM WR |
0 | - |
|
数据表 |
11925PB | Bulk | Active | 100VAC | Square - 119mm L x 119mm H | 71.4 CFM (2.00m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 38.0dB | 11.00W | - | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
11938MB-A0L-EA-00FAN 119MM X 38MM 100VAC TERMINAL |
0 | - |
|
数据表 |
11938MB | Bulk | Active | 100VAC | Square - 119mm L x 119mm H | 88.3 CFM (2.50m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 37.0dB | 10.00W | - | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
09238SB-A0L-EA-00AC AXIAL FAN |
0 | - |
|
数据表 |
09238SB | Box | Active | 100VAC | Square - 92mm L x 92mm H | 44.7 CFM (1.25m³/min) | 0.321 in H2O (80.0 Pa) | Ball | - | Tubeaxial | - | 38.50mm | 33.5dB | 7.50W | - | 3150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
09238SB-B4L-EA-00AC AXIAL FAN |
0 | - |
|
数据表 |
09238SB | Box | Active | 240VAC | Square - 92mm L x 92mm H | 44.7 CFM (1.25m³/min) | 0.321 in H2O (80.0 Pa) | Ball | - | Tubeaxial | - | 38.50mm | 33.5dB | 8.00W | - | 3150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
09238SB-B2L-EA-00AC AXIAL FAN |
0 | - |
|
数据表 |
09238SB | Box | Active | 220VAC | Square - 92mm L x 92mm H | 44.7 CFM (1.25m³/min) | 0.321 in H2O (80.0 Pa) | Ball | - | Tubeaxial | - | 38.50mm | 33.5dB | 7.00W | - | 3150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
09238SB-B0L-EA-00AC AXIAL FAN |
0 | - |
|
数据表 |
09238SB | Box | Active | 200VAC | Square - 92mm L x 92mm H | 44.7 CFM (1.25m³/min) | 0.321 in H2O (80.0 Pa) | Ball | - | Tubeaxial | - | 38.50mm | 33.5dB | 8.00W | - | 3150 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9AD1201L4H0011FAN 120X25MM 100-240VAC LOWSPEED |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 50.2 CFM (1.41m³/min) | 0.088 in H2O (22.0 Pa) | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 26.0dB(A) | 1.10W | CE, cURus, TUV, UKCA | 1800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9AD1201H4H001FAN 120X25MM 100-240VAC LOWSPEED |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9AD1201H4H0011FAN 120X25MM 100-240VAC LOWSPEED |
0 | - |
|
数据表 |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 84.0 CFM (2.35m³/min) | 0.249 in H2O (62.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 3.40W | CE, cURus, TUV, UKCA | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9AD1201M4H0011FAN 120X25MM 100-240VAC LOWSPEED |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 63.0 CFM (1.76m³/min) | 0.141 in H2O (35.0 Pa) | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 34.0dB(A) | 1.60W | CE, cURus, TUV, UKCA | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
RG90-18/50FAN BLWR FLATPAK 135X38MM 230VAC |
0 | - |
|
数据表 |
RG90 | Box | Active | 230VAC | Square - 135mm L x 135mm H | 31.8 CFM (0.890m³/min) | - | Sintec | 1.3 lbs (589.7 g) | Blower, Flatpak | - | 38.00mm | 60.0dB(A) | 22.00W | CE, CSA, UL, VDE | - | - | 2 Wire Leads | - |
|

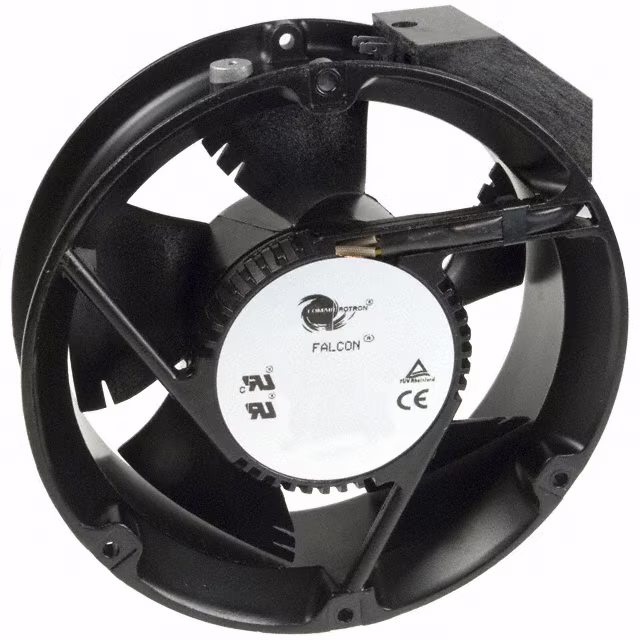

19031660AFAN AXIAL 172X55MM 230VAC FA77B3 |
0 | - |
|
数据表 |
Falcon AC | - | Obsolete | 230VAC | Round - 172mm Dia | 292.0 CFM (8.18m³/min) | 0.858 in H2O (213.7 Pa) | Ball | 2.8 lbs (1.3 kg) | Tubeaxial | - | 55.00mm | 56.6dB(A) | 41.40W | - | 3400 RPM | - | 2 Terminals | - |
|
|
11938MB-B2L-EA-00FAN 119MM X 38MM 200VAC TERMINAL |
0 | - |
|
数据表 |
11938MB | Bulk | Active | 220VAC | Square - 119mm L x 119mm H | 88.3 CFM (2.50m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 37.0dB | 10.00W | - | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
5900-505FAN AXIAL 127X38MM 115VAC TERM |
0 | - |
|
数据表 |
5900 | Bulk | Obsolete | 115VAC | Square - 127mm L x 127mm H | 121.2 CFM (3.39m³/min) | - | Sintec | 1.3 lbs (589.7 g) | Tubeaxial | - | 38.00mm | 47.0dB(A) | 17.00W | - | - | - | 2 Terminals | - |
|
|
9AD1201P4H0011FAN 120X25MM 100-240VAC PWM/TACH |
0 | - |
|
数据表 |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 84.0 CFM (2.35m³/min) | 0.249 in H2O (62.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 3.40W | CE, cURus, TUV, UKCA | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
55410.81980AC CROSSFLOW BLOWER |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
OA172SAP-11-1TB1855FAN AXIAL 172X51MM 115VAC TERM |
0 | - |
|
数据表 |
OA172SAP | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 210.0 CFM (5.88m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 2.7 lbs (1.2 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 51.00mm | 58.0dB | 42.00W | cURus | 3100 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
