交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA180AP-22-1TB-IP55230VAC 180X180X90MM IP55 |
0 | - |
|
数据表 |
OA180AP | Bulk | Active | 230VAC | Square - 180mm L x 180mm H | 460.0 CFM (12.88m³/min) | 1.100 in H2O (274.0 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 90.00mm | 59.0dB(A) | 72.0W | cURus, TUV | 3400 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
|
OA172LFGS221TXCFAN AXIAL 209X101.3MM 230VAC |
1 | - |
|
数据表 |
OA172LFGS XC | Box | Active | 230VAC | Square - 209mm L x 209mm H | 300.0 CFM (8.40m³/min) | 0.780 in H2O (194.3 Pa) | Ball | - | Tubeaxial | Capacitor, Kit | 101.3mm | 61.0dB | 50.0W | cURus, TUV | 3300 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals or 2 Wire Leads | - |
|
|
CF4207LBL-1000U-AA9DC Fans DC Axial Fan, 60x60x38mm |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

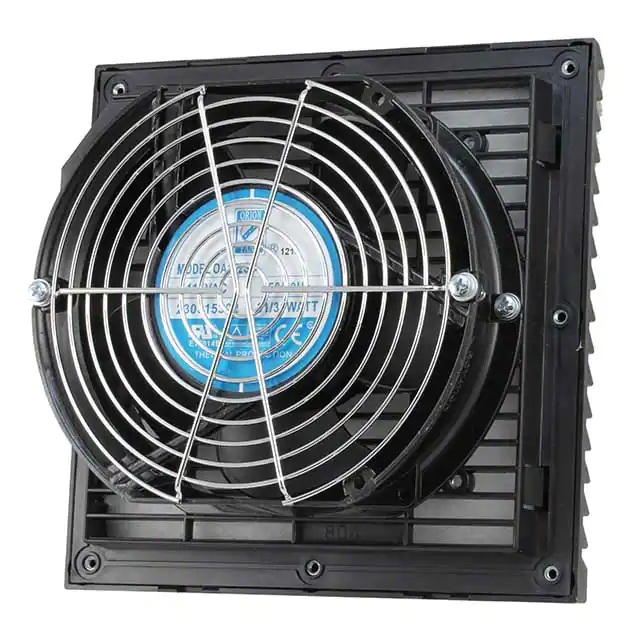

OA172LFG111TXCFAN AXIAL 204X77.5MM 120VAC TERM |
0 | - |
|
数据表 |
OA172LFGH XC | Box | Active | 120VAC | Square - 204mm L x 204mm H | 300.0 CFM (8.40m³/min) | 0.780 in H2O (194.3 Pa) | Ball | - | Tubeaxial | Capacitor, Kit | 77.50mm | 61.0dB | 50.0W | cURus, TUV | 3300 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
OA172LFG221TXCFAN AXIAL 204X77.5MM 230VAC TERM |
0 | - |
|
数据表 |
OA172LFGH XC | Box | Active | 230VAC | Square - 204mm L x 204mm H | 300.0 CFM (8.40m³/min) | 0.780 in H2O (194.3 Pa) | Ball | - | Tubeaxial | Capacitor, Kit | 77.50mm | 61.0dB | 50.0W | cURus, TUV | 3300 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|

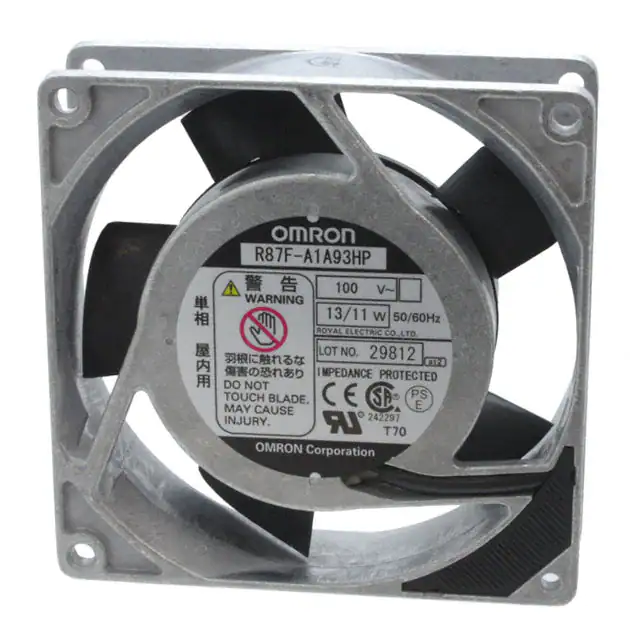

R87F-A3A93LPFAN AXIAL 92X25MM 115VAC TERM |
0 | - |
|
数据表 |
R87F | Bulk | Active | 115VAC | Square - 92mm L x 92mm H | 28.6 CFM (0.801m³/min) | 0.138 in H2O (34.3 Pa) | Ball | 0.661 lb (299.82 g) | Tubeaxial | - | 25.00mm | 32.0dB | 6.00W | CSA, UL | 2200 RPM | -22 ~ 158°F (-30 ~ 70°C) | 2 Terminals | - |
|
|
CF4207LBL-1000U-H99EC Fans EC Axial Fan, 200x77mm |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CF4207LBL-1000U-AB9EC Fans EC Axial Fan, 200x77mm |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CF4207LBL-1000U-HA9DC Fans DC Axial Fan, 60x60x38mm |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
OA180APL-22-2TB230VAC 180X180X65MM |
0 | - |
|
数据表 |
OA180APL | Bulk | Active | 230VAC | Square - 180mm L x 180mm H | 280.0 CFM (7.84m³/min) | 0.580 in H2O (144.5 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 65.00mm | 47.0dB(A) | 50.0W | cURus, TUV | 2200 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Terminals | - |
|
|
OA180APL-22-2WB230VAC 180X180X65MM |
0 | - |
|
数据表 |
OA180APL | Bulk | Active | 230VAC | Square - 180mm L x 180mm H | 280.0 CFM (7.84m³/min) | 0.580 in H2O (144.5 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 65.00mm | 47.0dB(A) | 50.0W | cURus, TUV | 2200 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
|
OA180APL-22-3TB230VAC 180X180X65MM |
0 | - |
|
数据表 |
OA180APL | Bulk | Active | 230VAC | Square - 180mm L x 180mm H | 210.0 CFM (5.88m³/min) | 0.430 in H2O (107.0 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 65.00mm | 40.0dB(A) | 38.00W | cURus, TUV | 1650 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Terminals | - |
|
|
OA180APL-11-2WB115VAC 180X180X65MM |
0 | - |
|
数据表 |
OA180APL | Bulk | Active | 115VAC | Square - 180mm L x 180mm H | 280.0 CFM (7.84m³/min) | 0.580 in H2O (144.5 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 65.00mm | 47.0dB(A) | 50.0W | cURus, TUV | 2200 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
|
OA180APL-22-3WB230VAC 180X180X65MM |
0 | - |
|
数据表 |
OA180APL | Bulk | Active | 230VAC | Square - 180mm L x 180mm H | 210.0 CFM (5.88m³/min) | 0.430 in H2O (107.0 Pa) | Ball | - | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 65.00mm | 40.0dB(A) | 38.00W | cURus, TUV | 1650 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
|
AC4300HRACMAXX TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | 115/230VAC | Square - 119mm L x 119mm H | 120.2 CFM (3.37m³/min) | 0.401 in H2O (100.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 32.00mm | 51.0dB(A) | 11.00W | CCC, CSA, CE, EAC, VDE, UL | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP20 |
|
|
CF4207LBL-1000U-HB9EC FAN 250X78MM |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

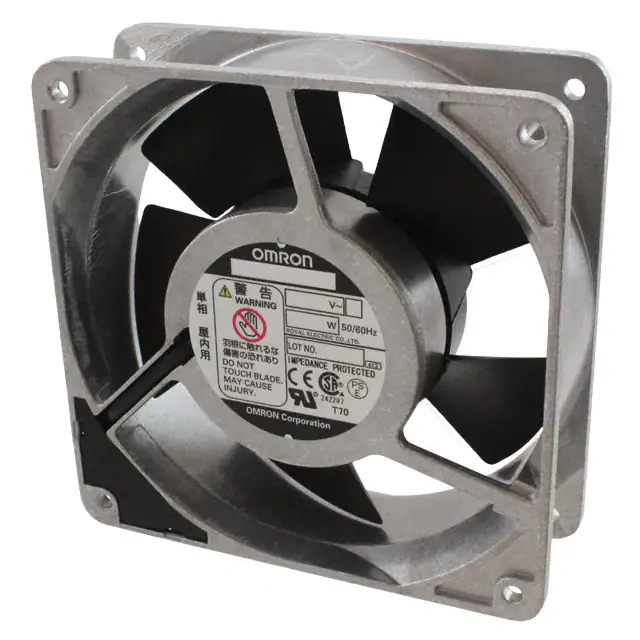

R87F-A3A15MPFAN AXIAL 120X38MM 115VAC TERM |
0 | - |
|
数据表 |
R87F | Bulk | Obsolete | 115VAC | Square - 120mm L x 120mm H | 88.3 CFM (2.50m³/min) | 0.255 in H2O (63.7 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 42.0dB | 14.00W | CSA, UL | 2700 RPM | -22 ~ 158°F (-30 ~ 70°C) | 2 Terminals | - |
|
|
R87F-A6A85HPFAN AXIAL 80X38MM 230VAC TERM |
0 | - |
|
数据表 |
R87F | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 32.1 CFM (0.899m³/min) | 0.236 in H2O (58.8 Pa) | Ball | 0.617 lb (279.87 g) | Tubeaxial | - | 38.00mm | 36.0dB | 9.00W | CSA, UL | 3200 RPM | -22 ~ 158°F (-30 ~ 70°C) | 2 Terminals | - |
|

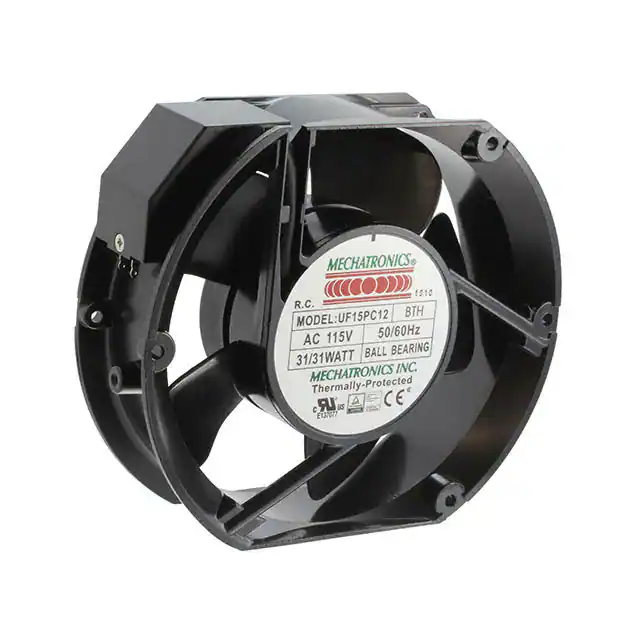

UF15PC12-BTHNSRFN 172X150X51MM 115V IP55 SLT FG |
0 | - |
|
数据表 |
UF15PC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP) | 51.00mm | 58.0dB(A) | 31.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
|
|
UF15PC12-BWHNSRFN 172X150X51MM 115V IP55 SLT FG |
0 | - |
|
数据表 |
UF15PC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP) | 51.00mm | 58.0dB(A) | 31.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
