交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

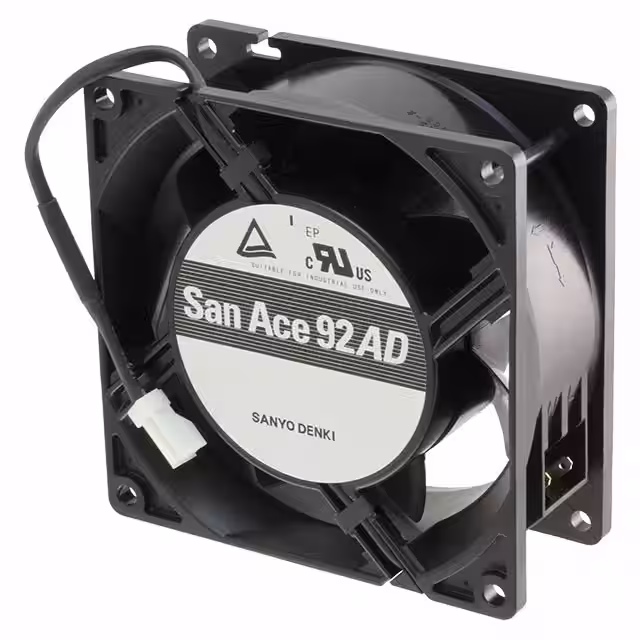

9AD0901H1HFAN 92X38MM 90/264VAC LSS |
0 | - |
|
数据表 |
San Ace 92AD | Box | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 53.0 CFM (1.48m³/min) | 0.360 in H2O (89.7 Pa) | Ball | 0.551 lb (249.93 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 40.0dB(A) | 4.50W | CE, CSA, PSE, TUV, UL | 3850 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Position Rectangular Connector | - |
|
5958FAN AXIAL 127X38MM 230VAC |
0 | - |
|
数据表 |
5900 | Bulk | Obsolete | 230VAC | Square - 127mm L x 127mm H | 106.0 CFM (2.97m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | 44.0dB(A) | 18.00W | CE, CSA, UL, VDE | 2750 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
8560NAC AXIAL FAN |
0 | - |
|
数据表 |
8000N | Bulk | Obsolete | 115/230VAC | Square - 79.5mm L x 79.5mm H | - | - | Sleeve | - | Tubeaxial | Dual Voltage | 38.00mm | - | - | - | - | -40 ~ 203°F (-40 ~ 95°C) | 4 Wire Leads | IP20 |
|
99489301FAN AXIAL 120X25MM 220/240VAC |
0 | - |
|
数据表 |
- | - | Obsolete | - | - | - | - | - | - | Tubeaxial | - | - | - | - | - | - | - | - | - |
|
|
8506N-489AC TUBEAXIAL FAN |
0 | - |
|
数据表 |
8506N | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 35.9 CFM (1.01m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | 35.0dB(A) | 11.00W | - | 3300 RPM | -40 ~ 203°F (-40 ~ 95°C) | 2 Wire Leads | IP54/IP65 - Dust Protected, Water Resistant, Dust Tight, Water Resistant |
|
UF15KC12-BWHNRFAN AXIAL 172X150X55MM 115V IP55 |
0 | - |
|
数据表 |
UF15KC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.00mm | 60.0dB(A) | 38.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
UF15PC12-BTHNRFAN AXIAL 172X150X51MM 115V IP55 |
0 | - |
|
数据表 |
UF15PC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | 58.0dB(A) | 31.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
|
|
UF15PC12-BWHNRFAN AXIAL 172X150X51MM 115V IP55 |
0 | - |
|
数据表 |
UF15PC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | 58.0dB(A) | 31.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
UF15PC23-BTHNRFAN 172X150X51MM 230VAC IP55 |
0 | - |
|
数据表 |
UF15PC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | 58.0dB(A) | 31.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
|
9AD1201H1H1FAN 120X38MM 90/264VAC RBLS LSS |
0 | - |
|
数据表 |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 0.639 lb (289.85 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 42.0dB(A) | 4.40W | CE, CSA, PSE, TUV, UL | 3250 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Position Rectangular Connector | - |
|
|
9AD1201H1J120X38MM 100V TO 240V, WIDE VOLT |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 42.0dB(A) | 4.40W | - | 3250 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
FDA2-17251QBHT4FFAN AXIAL 172X51MM 230VAC TERM |
0 | - |
|
数据表 |
HPLC, FDA2-17251 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 151mm H | 250.0 CFM (7.00m³/min) | 0.610 in H2O (151.9 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 51.00mm | 59.0dB(A) | 27.00W | CE, cURus, TUV | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
FDA2-17255QBHT4FFAN AXIAL 172X55MM 230VAC TERM |
0 | - |
|
数据表 |
HPLC, FDA2-17255 | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 151mm H | 240.0 CFM (6.72m³/min) | 0.531 in H2O (132.3 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 55.00mm | 61.0dB(A) | 27.00W | CE, cURus, TUV | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
|
11925PB-B4L-AA-00FAN 240VAC 119X25MM WR |
0 | - |
|
数据表 |
11925PB | Bulk | Active | 240VAC | Square - 119mm L x 119mm H | 71.4 CFM (2.00m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 38.0dB | 13.00W | - | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OA172SAN-22-3WBAC FAN - 230V 172 X 150 X 51MM |
0 | - |
|
数据表 |
OA172SAN | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 115.0 CFM (3.22m³/min) | 0.430 in H2O (107.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Capacitor, Thermal Overload Protector (TOP) | 51.00mm | 33.2dB(A) | 16.00W | CE, cURus, TUV, UKCA, UR | 1700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
OA172SAN-11-3WBAC FAN - 115V 172 X 150 X 51MM |
0 | - |
|
数据表 |
OA172SAN | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 115.0 CFM (3.22m³/min) | 0.430 in H2O (107.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Capacitor, Thermal Overload Protector (TOP) | 51.00mm | 33.2dB(A) | 16.00W | CE, cURus, TUV, UKCA, UR | 1700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
OA172SAN-11-2TBAC FAN - 115V 172 X 150 X 51MM |
0 | - |
|
数据表 |
OA172SAN | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 170.0 CFM (4.76m³/min) | 0.490 in H2O (122.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Capacitor, Thermal Overload Protector (TOP) | 51.00mm | 39.8dB(A) | 20.00W | CE, cURus, TUV, UKCA, UR | 2300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
|
OA172SAN-22-2WBAC FAN - 230V 172 X 150 X 51MM |
0 | - |
|
数据表 |
OA172SAN | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 170.0 CFM (4.76m³/min) | 0.490 in H2O (122.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Capacitor, Thermal Overload Protector (TOP) | 51.00mm | 39.8dB(A) | 20.00W | CE, cURus, TUV, UKCA, UR | 2300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
OA172SAN-11-3TBAC FAN - 115V 172 X 150 X 51MM |
0 | - |
|
数据表 |
OA172SAN | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 115.0 CFM (3.22m³/min) | 0.430 in H2O (107.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Capacitor, Thermal Overload Protector (TOP) | 51.00mm | 33.2dB(A) | 16.00W | CE, cURus, TUV, UKCA, UR | 1700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
|
|
OA172SAN-22-3TBAC FAN - 230V 172 X 150 X 51MM |
0 | - |
|
数据表 |
OA172SAN | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 115.0 CFM (3.22m³/min) | 0.430 in H2O (107.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Capacitor, Thermal Overload Protector (TOP) | 51.00mm | 33.2dB(A) | 16.00W | CE, cURus, TUV, UKCA, UR | 1700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Terminals | - |
