交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109-041ULFAN 80X42MM 200VAC |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 200VAC | Square - 80mm L x 80mm H | 35.3 CFM (0.988m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | - | 42.00mm | 44.0dB(A) | 9.00W | CE, CSA, PSE, TUV, UL | 3100 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
|
109-047ULFAN 80X42MM 100VAC |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 100VAC | Square - 80mm L x 80mm H | 15.2 CFM (0.426m³/min) | 0.035 in H2O (8.7 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | - | 42.00mm | 24.0dB(A) | 3.50W | CE, CSA, PSE, TUV, UL | 1500 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Terminals | - |
|
A1259HBL-TCFAN AXIAL 254X89MM 115VAC WIRE |
0 | - |
|
数据表 |
A | - | Obsolete | 115VAC | Round - 254mm Dia | 806.0 CFM (22.57m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 4.4 lbs (2 kg) | Tubeaxial | - | 89.00mm | 56.0dB(A) | 68.0W | CE, CUR, TUV, UL | 2000 RPM | 14 ~ 176°F (-10 ~ 80°C) | 2 Wire Leads | - |
|
A2259MBL ( TC )FAN AXIAL 254X89MM 220/240VAC |
0 | - |
|
数据表 |
A | - | Obsolete | 220 ~ 240VAC | Round - 254mm Dia | 665.0 CFM (18.62m³/min) | 0.360 in H2O (89.6 Pa) | Ball | 4.4 lbs (2 kg) | Tubeaxial | - | 89.00mm | 52.0dB(A) | 30.00W | CE, CUR, TUV, UL | 1600 RPM | 14 ~ 176°F (-10 ~ 80°C) | 2 Wire Leads | - |
|
A2259MBT-TCFAN AXIAL 254X89MM 220/240VAC |
0 | - |
|
数据表 |
A | - | Obsolete | 220 ~ 240VAC | Round - 254mm Dia | 665.0 CFM (18.62m³/min) | 0.360 in H2O (89.6 Pa) | Ball | 4.4 lbs (2 kg) | Tubeaxial | - | 89.00mm | 52.0dB(A) | 30.00W | CE, CUR, TUV, UL | 1600 RPM | 14 ~ 176°F (-10 ~ 80°C) | 2 Terminals | - |
|
08025MB-A0L-AA-00FAN 80MM X 25MM 100VAC WIRE |
0 | - |
|
数据表 |
08025MB | Bulk | Active | 100VAC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | - | 25.30mm | 31.0dB | 6.50W | - | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
08025MB-B2L-AA-00FAN 80MM X 25MM 200VAC WIRE |
0 | - |
|
数据表 |
08025MB | Bulk | Active | 220VAC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | - | 25.30mm | 31.0dB | 6.50W | - | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
08025MB-B0L-AA-00FAN 80MM X 25MM 200VAC WIRE |
0 | - |
|
数据表 |
08025MB | Bulk | Active | 200VAC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | - | 25.30mm | 31.0dB | 6.00W | - | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
08025MB-B4L-AA-00FAN 80MM X 25MM 240VAC WIRE |
0 | - |
|
数据表 |
08025MB | Bulk | Active | 240VAC | Square - 80mm L x 80mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | - | 25.30mm | 31.0dB | 6.50W | - | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9AD1201L4002FAN 120X25MM 100-240VAC |
0 | - |
|
数据表 |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 50.2 CFM (1.41m³/min) | 0.088 in H2O (22.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 26.0dB(A) | 1.10W | CE, cURus, TUV, UKCA | 1800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9AD1201H4002FAN 120X25MM 100-240VAC |
0 | - |
|
数据表 |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 84.0 CFM (2.35m³/min) | 0.249 in H2O (62.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 40.0dB(A) | 3.40W | CE, cURus, TUV, UKCA | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9AD1201M4002FAN 120X25MM 100-240VAC |
0 | - |
|
数据表 |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 63.0 CFM (1.76m³/min) | 0.141 in H2O (35.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 34.0dB(A) | 1.60W | CE, cURus, TUV, UKCA | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9AD1201H40021FAN 120X25MM 100-240VAC |
0 | - |
|
数据表 |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 84.0 CFM (2.35m³/min) | 0.249 in H2O (62.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 40.0dB(A) | 3.40W | CE, cURus, TUV, UKCA | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9AD1201L40021FAN 120X25MM 100-240VAC |
0 | - |
|
数据表 |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 50.2 CFM (1.41m³/min) | 0.088 in H2O (22.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 26.0dB(A) | 1.10W | CE, cURus, TUV, UKCA | 1800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9AD1201M40021FAN 120X25MM 100-240VAC |
0 | - |
|
数据表 |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 63.0 CFM (1.76m³/min) | 0.141 in H2O (35.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 34.0dB(A) | 1.60W | CE, cURus, TUV, UKCA | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
4856ZWAC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 57.7 CFM (1.61m³/min) | 0.096 in H2O (23.9 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 27.0dB(A) | 12.00W | CCC, CSA, CE, EAC, VDE, UL | 1800 RPM | -40 ~ 167°F (-40 ~ 75°C) | 2 Wire Leads | - |
|
|
3610PS-24T-B20-A00FAN AXIAL 92.5X25MM 240VAC TERM |
0 | - |
|
数据表 |
PS | Bulk | Active | 240VAC | Square - 92.5mm L x 92.5mm H | 28.0 CFM (0.784m³/min) | 0.157 in H2O (39.2 Pa) | Ball | 0.661 lb (299.82 g) | Tubeaxial | - | 25.00mm | 35.0dB | 8.00W | CE, CSA, TUV, UL, VDE | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
3610PS-20T-B20-B00FAN AXIAL 92.5X25MM 200VAC TERM |
0 | - |
|
数据表 |
PS | Bulk | Active | 200VAC | Square - 92.5mm L x 92.5mm H | 28.0 CFM (0.784m³/min) | 0.156 in H2O (39.0 Pa) | Ball | 0.661 lb (299.82 g) | Tubeaxial | - | 25.00mm | 35.0dB | 6.00W | CE, CSA, TUV, UL, VDE | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
3610PS-24T-B10-A00FAN AXIAL 92.5X25MM 240VAC TERM |
0 | - |
|
数据表 |
PS | Bulk | Active | 240VAC | Square - 92.5mm L x 92.5mm H | 21.0 CFM (0.588m³/min) | 0.079 in H2O (19.6 Pa) | Ball | 0.661 lb (299.82 g) | Tubeaxial | - | 25.00mm | 27.0dB | 7.00W | CE, CSA, TUV, UL, VDE | 1800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

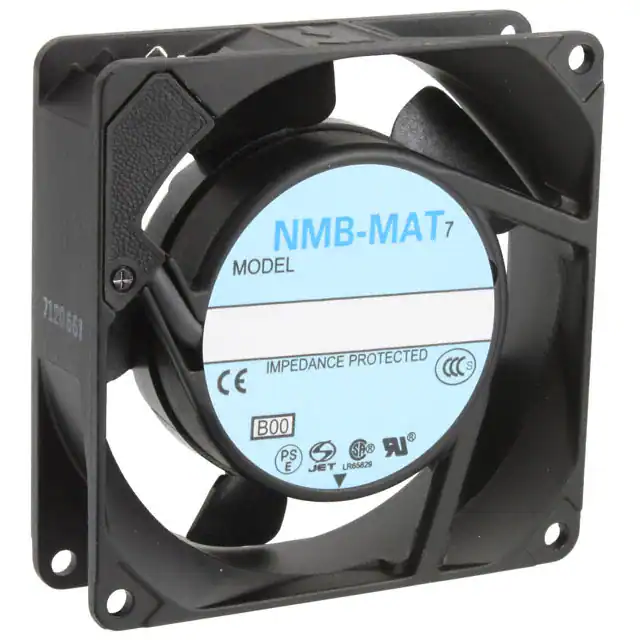

3610PS-10T-B30-B00FAN AXIAL 92.5X25MM 100VAC TERM |
0 | - |
|
数据表 |
PS | Bulk | Obsolete | 100VAC | Square - 92.5mm L x 92.5mm H | 34.5 CFM (0.966m³/min) | 0.243 in H2O (60.7 Pa) | Ball | 0.661 lb (299.82 g) | Tubeaxial | - | 25.00mm | 38.0dB | 10.00W | CE, CSA, TUV, UL, VDE | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
