交流风扇
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA172SAP-22-1TB1855FAN AXIAL 172X51MM 230VAC TERM |
0 | - |
|
数据表 |
OA172SAP | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 210.0 CFM (5.88m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 2.7 lbs (1.2 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 51.00mm | 58.0dB | 42.00W | cURus | 3100 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Terminals | IP55 - Dust Protected, Water Resistant |
|
OA172SAP-22-1WB1855FAN AXIAL 172X51MM 230VAC WIRE |
0 | - |
|
数据表 |
OA172SAP | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 210.0 CFM (5.88m³/min) | 0.490 in H2O (122.1 Pa) | Ball | 2.7 lbs (1.2 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 51.00mm | 58.0dB | 42.00W | cURus | 3100 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
A2175-HBL.TC.R.GNFAN AXIAL 172X51MM 220/240VAC |
0 | - |
|
数据表 |
A | Bulk | Active | 240VAC | Round - 172mm Dia | 239.0 CFM (6.69m³/min) | 0.690 in H2O (171.8 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 51.00mm | 58.0dB(A) | 26.00W | CE, CUR, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|
|
A1175-HBL.TC.R.GNThermal Products |
0 | - |
|
数据表 |
A | Bulk | Active | 115VAC | Round - 171mm Dia | 239.0 CFM (6.69m³/min) | 0.690 in H2O (171.8 Pa) | Ball | - | Tubeaxial | - | 51.00mm | 58.0dB(A) | 27.00W | CE, CUR, TUV, UL | 3200 RPM | - | 2 Terminals | - |
|
UF15PC23-BTHR-CCFAN AXIAL 172X150X51MM 230VAC |
0 | - |
|
数据表 |
UF15PC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Conformal Coating, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 51.00mm | 58.0dB(A) | 31.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
A2259HBT-TCFAN AXIAL 254X89MM 220/240VAC |
0 | - |
|
数据表 |
A | - | Obsolete | 220 ~ 240VAC | Round - 254mm Dia | 770.0 CFM (21.56m³/min) | 0.380 in H2O (94.6 Pa) | Ball | 4.4 lbs (2 kg) | Tubeaxial | - | 89.00mm | 55.0dB(A) | 60.0W | CE, CUR, TUV, UL | 1900 RPM | 14 ~ 176°F (-10 ~ 80°C) | 2 Terminals | - |
|

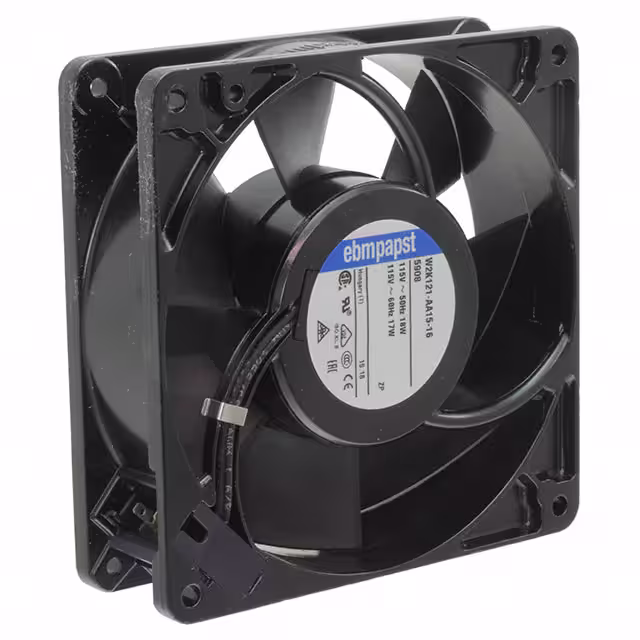

5908FAN AXIAL 127X38MM 115VAC |
0 | - |
|
数据表 |
5900 | Bulk | Obsolete | 115VAC | Square - 127mm L x 127mm H | 121.3 CFM (3.40m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | 47.0dB(A) | 17.00W | CE, CSA, UL, VDE | 3100 RPM | -22 ~ 167°F (-30 ~ 75°C) | 2 Terminals | - |
|
|
A1259HBT-TC.GNFAN AXIAL 254X89MM 115VAC TERM |
0 | - |
|
数据表 |
A | - | Obsolete | 115VAC | Round - 254mm Dia | 585.0 CFM (16.38m³/min) | 0.310 in H2O (77.2 Pa) | Ball | 5.1 lbs (2.3 kg) | Tubeaxial | - | 89.00mm | 60.0dB(A) | 72.0W | - | 1900 RPM | 14 ~ 176°F (-10 ~ 80°C) | 2 Terminals | - |
|
|
LPT15P99-BWHREC FAN AXIAL 172X150X51MM 120VAC |
0 | - |
|
数据表 |
- | Bulk | Active | - | Rectangular - 172mm L x 150mm H | 220.0 CFM (6.16m³/min) | - | Ball | 1.543 lb (700.0 g) | Tubeaxial | Electronic Commutation (EC) | 38.00mm | 57.0dB | 22.00W | ATEX | 3000 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | IP68 - Dust Tight, Waterproof |
|
|
LPT15P99-BTHRFAN AXIAL 172X150X51MM 115VAC |
0 | - |
|
数据表 |
- | Bulk | Active | - | Rectangular - 172mm L x 150mm H | - | - | Ball | 0.154 lb (69.85 g) | Tubeaxial | Electronic Commutation (EC) | 38.00mm | 57.0dB | 22.00W | ATEX | 3000 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | IP68 - Dust Tight, Waterproof |
|
UF15AC12-BTHR-B1FAN AXIAL 172X150X38MM 115VAC TA |
0 | - |
|
数据表 |
UF15AC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 212.0 CFM (5.94m³/min) | 0.750 in H2O (186.8 Pa) | Ball | 1.6 lbs (725.7 g) | Tubeaxial | Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 58.0dB(A) | 28.00W | CE, cUL, TUV, UL | 3400 RPM | -40 ~ 158°F (-40 ~ 70°C) | 3 Terminals | - |
|
OA172LFGS111TXCFAN AXIAL 209X101.3MM 120VAC |
0 | - |
|
数据表 |
OA172LFGS XC | Box | Active | 120VAC | Square - 209mm L x 209mm H | 300.0 CFM (8.40m³/min) | 0.780 in H2O (194.3 Pa) | Ball | - | Tubeaxial | Capacitor, Kit | 101.3mm | 61.0dB | 50.0W | cURus, TUV | 3300 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals or 2 Wire Leads | - |
|
|
11925PB-A0L-EP-00FAN 100VAC 119X25MM TERM |
0 | - |
|
数据表 |
PB | Box | Active | 100VAC | Square - 119mm L x 119mm H | 70.6 CFM (1.98m³/min) | 0.165 in H2O (41.1 Pa) | Ball | 0.8 lb (362.87 g) | Tubeaxial | - | 25.00mm | 38.0dB | 11.00W | - | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
11925PB-B4L-EP-00FAN 240VAC 119X25MM TERM |
0 | - |
|
数据表 |
PB | Box | Active | 240VAC | Square - 119mm L x 119mm H | 70.6 CFM (1.98m³/min) | 0.165 in H2O (41.1 Pa) | Ball | 0.8 lb (362.87 g) | Tubeaxial | - | 25.00mm | 38.0dB | 13.00W | - | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

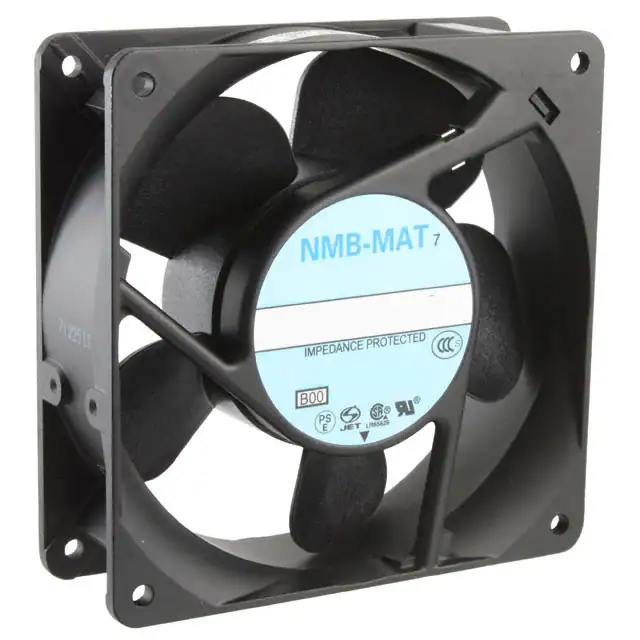

4715MS-10T-B50-B00FAN AXIAL 119X38MM 100VAC TERM |
0 | - |
|
数据表 |
MS | Bulk | Obsolete | 100VAC | Square - 119mm L x 119mm H | 102.0 CFM (2.86m³/min) | 0.306 in H2O (76.4 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 41.0dB | 14.00W | CE, CSA, TUV, UL, VDE | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

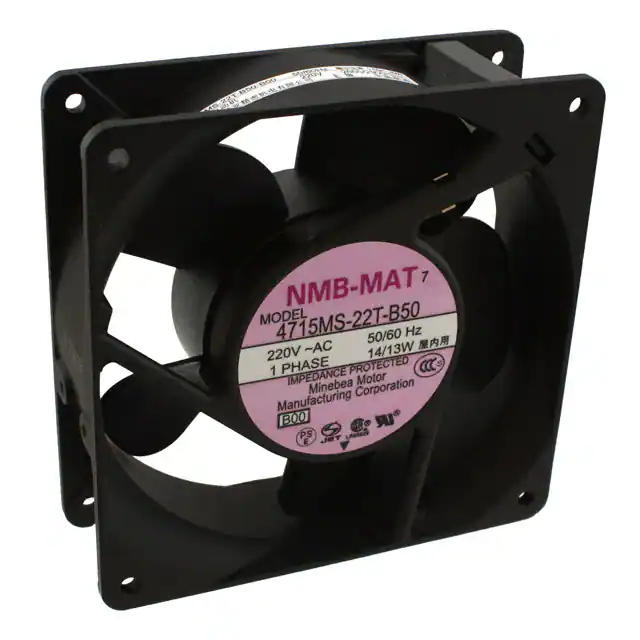

4715MS-22T-B50-B00FAN AXIAL 119X38MM 220VAC TERM |
0 | - |
|
数据表 |
MS | Bulk | Obsolete | 220VAC | Square - 119mm L x 119mm H | 102.0 CFM (2.86m³/min) | 0.302 in H2O (75.2 Pa) | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 41.0dB | 13.00W | CE, CSA, TUV, UL, VDE | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
11938MB-B0K-EA-00FAN 119MM X 38MM 200VAC TERMINAL |
0 | - |
|
数据表 |
11938MB | Bulk | Active | 200VAC | Square - 119mm L x 119mm H | 67.1 CFM (1.88m³/min) | 0.080 in H2O (19.9 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 30.0dB | 7.00W | - | 1900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
11938MB-B0L-EA-00FAN 119MM X 38MM 200VAC TERMINAL |
0 | - |
|
数据表 |
11938MB | Bulk | Active | 200VAC | Square - 119mm L x 119mm H | 88.3 CFM (2.50m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 37.0dB | 10.00W | - | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
11938MB-B2J-EA-00FAN 119MM X 38MM 200VAC TERMINAL |
0 | - |
|
数据表 |
11938MB | Bulk | Active | 220VAC | Square - 119mm L x 119mm H | 49.4 CFM (1.38m³/min) | 0.060 in H2O (14.9 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 28.0dB | 5.50W | - | 1450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
11938MB-B0J-EA-00FAN 119MM X 38MM 200VAC TERMINAL |
0 | - |
|
数据表 |
11938MB | Bulk | Active | 200VAC | Square - 119mm L x 119mm H | 49.4 CFM (1.38m³/min) | 0.060 in H2O (14.9 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 28.0dB | 5.50W | - | 1450 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
