交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

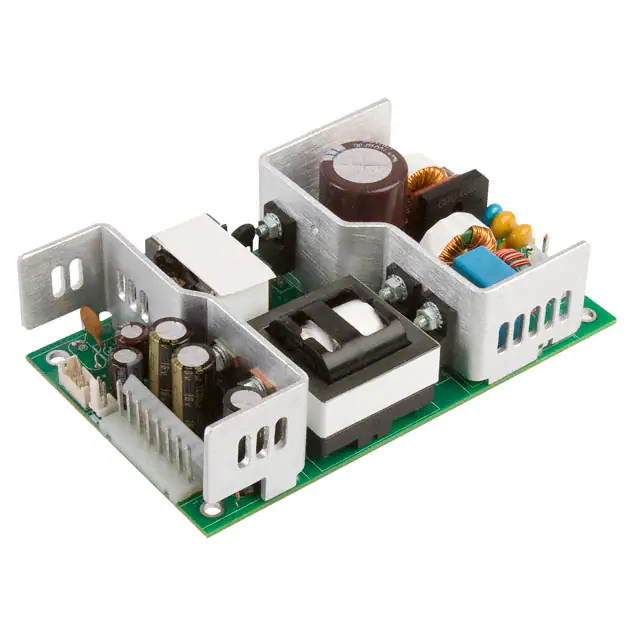

GCS150PS24AC/DC CONVERTER 24V 110W |
1,017 | - |
|
数据表 |
GCS (150W) | Box | Active | Open Frame | 1 | 24V | - | - | 110W (150W Forced Air) | - | - | 85 ~ 264 VAC | - | 4.6 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) | ||
|
GCS150PS12AC/DC CONVERTER 12V 110W |
639 | - |
|
数据表 |
GCS (150W) | Box | Active | Open Frame | 1 | 12V | - | - | 110W (150W Forced Air) | - | - | 85 ~ 264 VAC | - | 9.2 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) | ||
|
TMP 60112CAC/DC CONVERTER 12V 60W |
52 | - |
|
数据表 |
TMP (60W) | Box | Active | Enclosed | 1 | 12V | - | - | 60W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | - | Industrial, ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 2.67" W x 1.50" H (112.0mm x 67.8mm x 38.1mm) | ||
|
|
HB5-3/OVP-AGAC/DC CONVERTER 5V 15W |
232 | - |
|
数据表 |
Linear B | Bulk | Active | Linear | 1 | 5V | - | - | 15W | - | - | 100, 120, 220, 230, 240 VAC | - | 3 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 4.87" L x 4.00" W x 2.10" H (123.7mm x 101.6mm x 53.3mm) | ||
|
VGS-50W-12-AAC/DC CONVERTER 12V 50W |
0 | - |
|
数据表 |
VGS-50W (50W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 50W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 4.2 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
VGS-50W-15-AAC/DC CONVERTER 15V 51W |
0 | - |
|
数据表 |
VGS-50W (50W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 51W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 3.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
NEVO+600S-0132-DK000AC/DC CONVERTER 5V 24V 12V 425W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 5V | 24V | 12V | 425W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 7.5 A | ITE (Commercial) | - | 15 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-5203-DK000AC/DC CONVERTER 3X12V 24V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 4 | 12V | 12V | 12V | 450W | 24V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | - | 15 A | 7.5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-0114-DK000AC/DC CONVERTER 2X5V 48V 400W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 5V | 5V | 48V | 400W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 25 A | ITE (Commercial) | - | 3.75 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-5305-DK000AC/DC CNVT 2X12V 24V 2X12V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 5 | 12V | 12V | 24V | 300W | 12V | 12V | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | 5 A | 7.5 A | 5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-0325-DK000AC/DC CONVERTER 24V 3X12V 450W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 24V | 12V | 12V | 450W | 12V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 15 A | ITE (Commercial) | - | 5 A | 5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-3053-DK000AC/DC CNVRTR 24V 2X12V 24V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 24V | 12V | 12V | 300W | 24V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 5 A | ITE (Commercial) | - | 5 A | 7.5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-3055-DK000AC/DC CONVERTER 24V 4X12V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 5 | 24V | 12V | 12V | 450W | 12V | 12V | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 5 A | ITE (Commercial) | 5 A | 5 A | 5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-3402-DK000AC/DC CONVERTER 24V 48V 12V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 24V | 48V | 12V | 300W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 3.75 A | ITE (Commercial) | - | 15 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NMP1K2-#KHKC#-00AC/DC CNVRTR 48V 24V 48V 5V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 24V | 48V | 900W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#KHKE#-00AC/DC CNVRT 48V 24V 48V 12V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 24V | 48V | 960W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#KHKH#-00AC/DC CNVRT 48V 24V 48V 24V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 24V | 48V | 960W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#KHKK#-00AC/DC CNVRTR 48V 24V 2X48V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 24V | 48V | 960W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
VGS-50W-48-BAC/DC CONVERTER 48V 52W |
0 | - |
|
数据表 |
VGS-50W (50W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 48V | - | - | 52W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1.1 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
NMP1K2-#KK#CC-00AC/DC CONVERTER 2X48V 2X5V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 48V | 5V | 840W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) |
