交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SE-600-36AC/DC CONVERTER 36V 598W |
85 | - |
|
数据表 |
SE-600 (600W) | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 598W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | - | 16.6 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 9.72" L x 5.00" W x 2.50" H (247.0mm x 127.0mm x 63.5mm) | ||
|
|
HAD15-0.4-AGAC/DC CONVERTER +/-15V 12W |
152 | - |
|
数据表 |
Linear B | Bulk | Active | Linear | 2 | 15V | -15V | - | 12W | - | - | 100, 120, 220, 230, 240 VAC | - | 400 mA | - | 400 mA | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 4.87" L x 4.00" W x 2.10" H (123.7mm x 101.6mm x 53.3mm) | ||
|

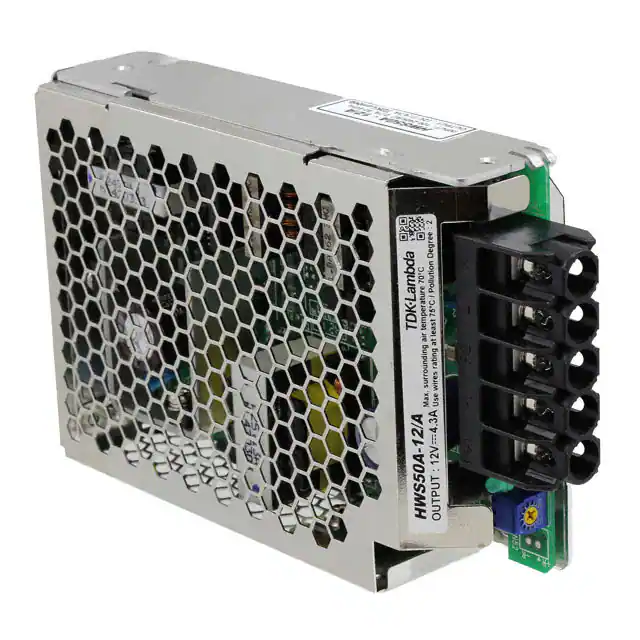

HWS50A-12/AAC/DC CONVERTER 12V 50W |
696 | - |
|
数据表 |
HWS-A (50W) | Bulk | Active | Enclosed | 1 | 12V | - | - | 50W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 4.3 A | - | - | Industrial, ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.72" L x 1.04" W x 3.23" H (119.9mm x 26.4mm x 82.0mm) | ||
|
HWS50A-24/AAC/DC CONVERTER 24V 50W |
615 | - |
|
数据表 |
HWS-A (50W) | Bulk | Active | Enclosed | 1 | 24V | - | - | 50W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2.2 A | - | - | Industrial, ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.72" L x 1.04" W x 3.23" H (119.9mm x 26.4mm x 82.0mm) | ||
|

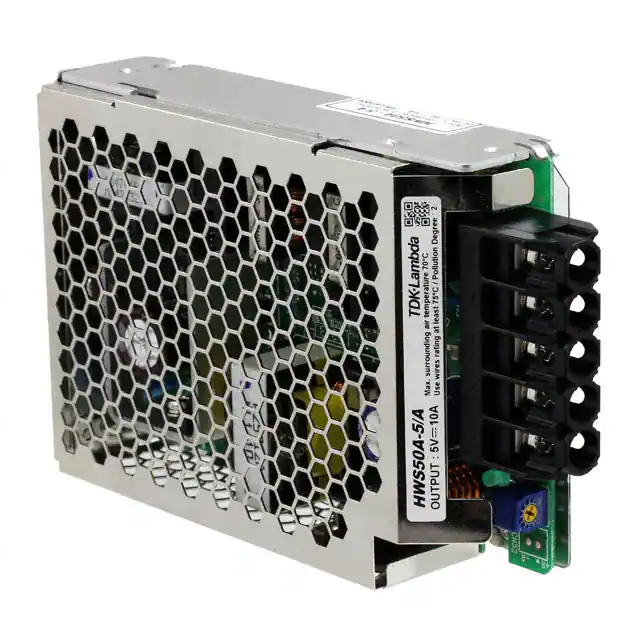

HWS50A-5/AAC/DC CONVERTER 5V 50W |
90 | - |
|
数据表 |
HWS-A (50W) | Bulk | Active | Enclosed | 1 | 5V | - | - | 50W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | - | Industrial, ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.72" L x 1.24" W x 3.23" H (119.9mm x 31.5mm x 82.0mm) | ||
|

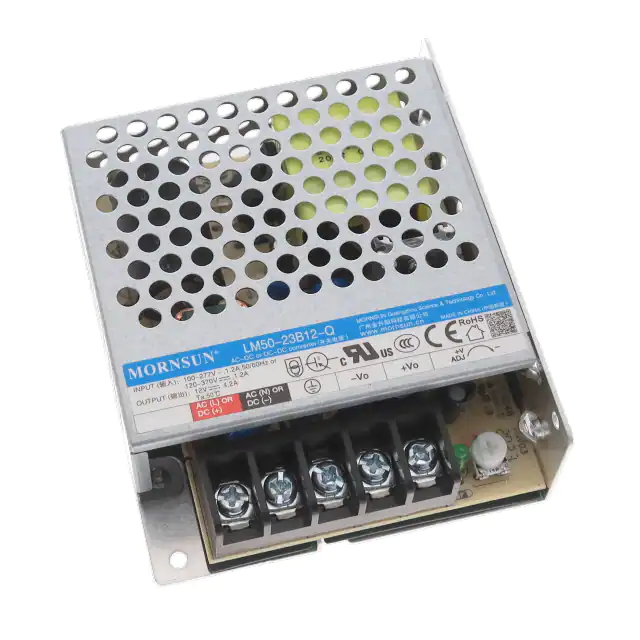

LM50-23B12-QAC/DC CONVERTER 12V 50W |
0 | - |
|
数据表 |
LM50-23Bxx-Q (50W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 50W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 4.2 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|

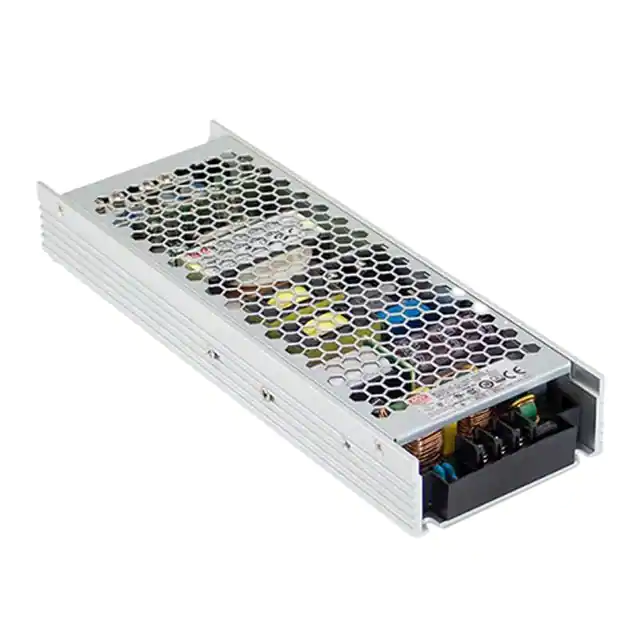

UHP-500-36AC/DC CONVERTER 36V 500W |
124 | - |
|
数据表 |
UHP-500 (500W) | Box | Active | Enclosed | 1 | 36V | - | - | 500W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 13.9 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3.75 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) | ||
|
UHP-500-24AC/DC CONVERTER 24V 502W |
104 | - |
|
数据表 |
UHP-500 (500W) | Box | Active | Enclosed | 1 | 24V | - | - | 502W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 20.9 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3.75 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) | ||
|

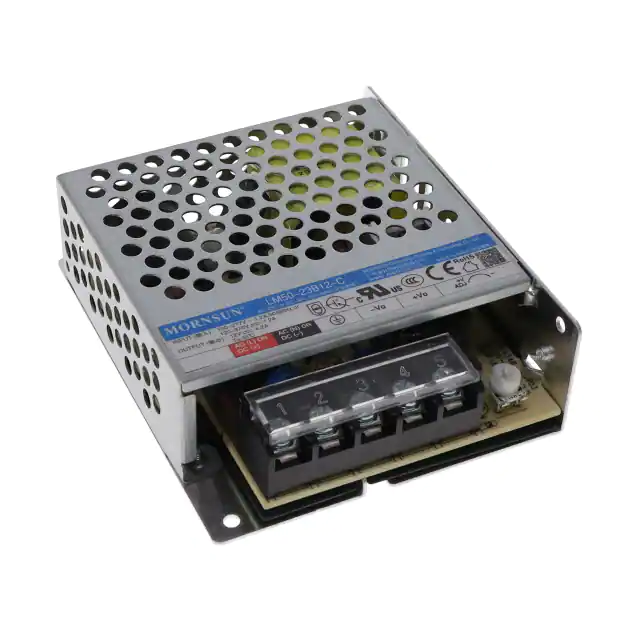

LM50-23B12-CAC/DC CONVERTER 12V 50W |
0 | - |
|
数据表 |
LM50-23Bxx-C (50W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 50W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 4.2 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
UHP-500-48AC/DC CONVERTER 48V 502W |
0 | - |
|
数据表 |
UHP-500 (500W) | Box | Active | Enclosed | 1 | 48V | - | - | 502W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 10.45 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3.75 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) | ||
|
GTM43007-A6030-F(R)AC/DC CONVERTER 30V 60W |
0 | - |
|
数据表 |
GTM43007-AWWVV-FW | Bulk | Active | Open Frame | 1 | 30V | - | - | 60W | - | - | 90 ~ 264 VAC | - | 2 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -10°C ~ 45°C | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.20" H (76.2mm x 50.8mm x 30.5mm) | ||
|
|

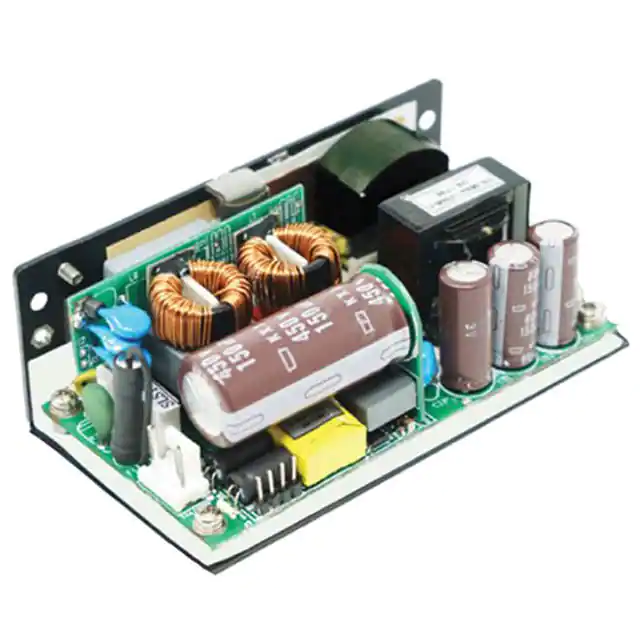

NGB250S24KAC/DC CONVERTER 24V 175W |
54 | - |
|
数据表 |
NGB250 (250W) | Box | Active | Open Frame | 1 | 24V | - | - | 175W | - | - | 85 ~ 264 VAC | - | 7.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4.5 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.40" H (101.6mm x 50.8mm x 35.6mm) | ||
|
FSP400-50UCBAC/DC CNVT 3.3V 5V +/-12V -5V |
85 | - |
|
数据表 |
FSP400-50UCB (400W) | Box | Active | Enclosed | 5 | 3.3V | 5V | 12V | 526W | -12V | -5V | 90 ~ 264 VAC | - | 14 A | - | 16 A | ITE (Commercial) | 100 mA | 33 A | 300 mA | - | 0°C ~ 50°C | Standby Output, Universal Input | Chassis Mount | 7.48" L x 3.94" W x 1.59" H (190.0mm x 100.0mm x 40.5mm) | ||
|
RSP-500-5AC/DC CONVERTER 5V 450W |
226 | - |
|
数据表 |
RSP-500 (500W) | Box | Active | Enclosed | 1 | 5V | - | - | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 90 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.06" L x 5.00" W x 1.59" H (230.0mm x 127.0mm x 40.5mm) | ||
|
RSP-500-27AC/DC CONVERTER 27V 502W |
87 | - |
|
数据表 |
RSP-500 (500W) | Box | Active | Enclosed | 1 | 27V | - | - | 502W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 18.6 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.06" L x 5.00" W x 1.59" H (230.0mm x 127.0mm x 40.5mm) | ||
|
RSP-500-12AC/DC CONVERTER 12V 500W |
0 | - |
|
数据表 |
RSP-500 (500W) | Box | Active | Enclosed | 1 | 12V | - | - | 500W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 41.7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.06" L x 5.00" W x 1.59" H (230.0mm x 127.0mm x 40.5mm) | ||
|
RSP-500-15AC/DC CONVERTER 15V 501W |
33 | - |
|
数据表 |
RSP-500 (500W) | Box | Active | Enclosed | 1 | 15V | - | - | 501W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 33.4 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.06" L x 5.00" W x 1.59" H (230.0mm x 127.0mm x 40.5mm) | ||
|
RSP-500-24AC/DC CONVERTER 24V 504W |
27 | - |
|
数据表 |
RSP-500 (500W) | Box | Active | Enclosed | 1 | 24V | - | - | 504W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 21 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.06" L x 5.00" W x 1.59" H (230.0mm x 127.0mm x 40.5mm) | ||
|
NEVO+600S-1051-DK000AC/DC CONVERTER 5V 2X12V 5V 275W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 5V | 12V | 12V | 275W | 5V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 5 A | ITE (Commercial) | - | 5 A | 25 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NMP1K2-#KK#HC-00AC/DC CNVRTR 2X48V 24V 5V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 48V | 24V | 900W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial), Medical | - | 10 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) |
