交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDS60UT05AC/DC CONVERTER 5V +/-12V 60W |
104 | - |
|
数据表 |
SDS (60W) | Box | Active | Open Frame | 3 | 5V | 12V | -12V | 60W | - | - | 90 ~ 264 VAC | - | 6 A | - | 3 A | ITE (Commercial) | - | 800 mA | - | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.20" H (127.0mm x 76.2mm x 30.5mm) | ||
|

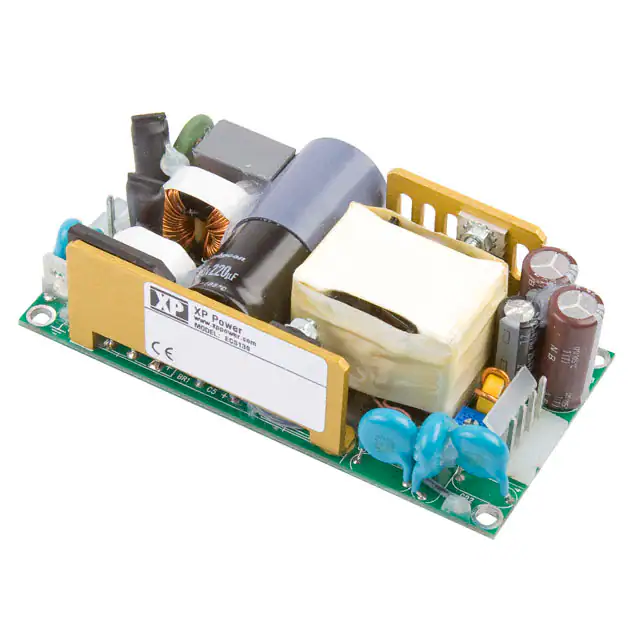

ECS130US12AC/DC CONVERTER 12V 100W |
916 | - |
|
数据表 |
ECS (130W) | Box | Active | Open Frame | 1 | 12V | - | - | 100W (130W Forced Air) | - | - | 80 ~ 264 VAC | - | 10.9 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) | ||
|
ECS130US18AC/DC CONVERTER 18V 100W |
428 | - |
|
数据表 |
ECS (130W) | Box | Active | Open Frame | 1 | 18V | - | - | 100W (130W Forced Air) | - | - | 80 ~ 264 VAC | - | 7.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) | ||
|
ECS130US24AC/DC CONVERTER 24V 100W |
369 | - |
|
数据表 |
ECS (130W) | Box | Active | Open Frame | 1 | 24V | - | - | 100W (130W Forced Air) | - | - | 80 ~ 264 VAC | - | 5.4 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) | ||
|

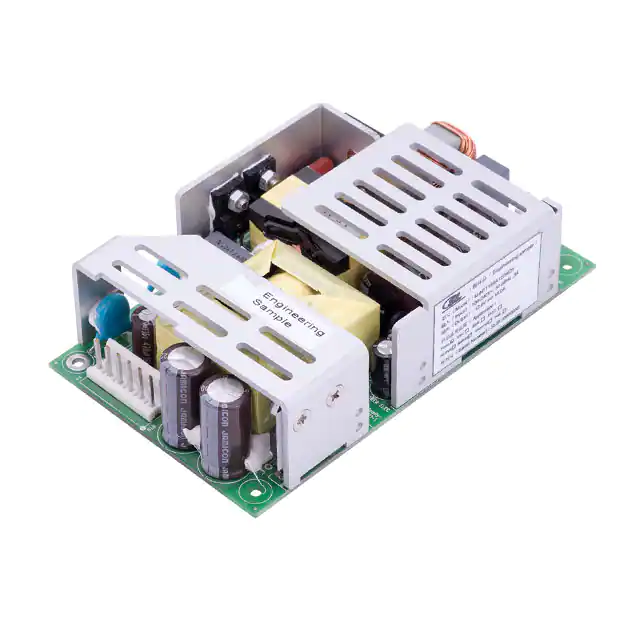

MINT1180A2475K01AC/DC CONVERTER 24V 180W |
879 | - |
|
数据表 |
MINT1180 (180W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 180W | - | - | 100 ~ 240 VAC | - | 7.5 A | - | - | Medical | - | - | - | 4 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 31.8mm) | ||
|
HEP-185-24AAC/DC CONVERTER 24V 187W |
154 | - |
|
数据表 |
HEP-185 (185W) | Box | Active | Enclosed | 1 | 24V | - | - | 187W | - | - | 90 ~ 305 VAC, 127 ~ 431 VDC | - | 7.8 A | - | - | ITE (Commercial) | - | - | - | 3.75 kV | -55°C ~ 70°C (With Derating) | Adjustable Output, IP65, PFC, Universal Input | Chassis Mount | 8.98" L x 2.68" W x 1.53" H (228.0mm x 68.0mm x 38.8mm) | ||
|
TPI 100-112A-JAC/DC CONVERTER 12V 100W |
55 | - |
|
数据表 |
TPI 100A (100W) | Box | Active | Open Frame | 1 | 12V | - | - | 100W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 8.34 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.16" H (76.2mm x 50.8mm x 29.5mm) | ||
|
EPP-500-48AC/DC CONVERTER 48V 322W |
131 | - |
|
数据表 |
EPP-500 (500W) | Box | Active | Open Frame | 1 | 48V | - | - | 322W (499W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 6.7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm) | ||
|
AMES35-12S277NZAC/DC CONVERTER 12V 36W |
2 | - |
|
数据表 |
AMES35-277NZ (36W) | Box | Obsolete | Enclosed | 1 | 12V | - | - | 36W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
LM150-23B24R2-CQAC/DC CONVERTER 24V 156W |
1 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 24V | - | - | 156W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 6.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
VGS-50W-15-BAC/DC CONVERTER 15V 51W |
0 | - |
|
数据表 |
VGS-50W (50W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 15V | - | - | 51W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 3.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
VGS-50W-12-BAC/DC CONVERTER 12V 50W |
0 | - |
|
数据表 |
VGS-50W (50W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 50W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 4.2 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
VGS-50W-48-AAC/DC CONVERTER 48V 52W |
0 | - |
|
数据表 |
VGS-50W (50W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 52W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1.1 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
VGS-50W-36-AAC/DC CONVERTER 36V 52W |
0 | - |
|
数据表 |
VGS-50W (50W) | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 52W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1.45 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
NMP1K2-#KHK#H-00AC/DC CNVRT 48V 24V 48V 24V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 24V | 48V | 960W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
MSP-200-12AC/DC CONVERTER 12V 200W |
76 | - |
|
数据表 |
MSP-200 (200W) | Box | Active | Enclosed | 1 | 12V | - | - | 200W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 16.7 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | ||
|
NMP1K2-#KHK#K-00AC/DC CNVRTR 48V 24V 2X48V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 24V | 48V | 960W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
MSP-200-24AC/DC CONVERTER 24V 202W |
57 | - |
|
数据表 |
MSP-200 (200W) | Box | Active | Enclosed | 1 | 24V | - | - | 202W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 8.4 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | ||
|
EPP-500-24AC/DC CONVERTER 24V 322W |
42 | - |
|
数据表 |
EPP-500 (500W) | Box | Active | Open Frame | 1 | 24V | - | - | 322W (499W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 13.4 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm) | ||
|

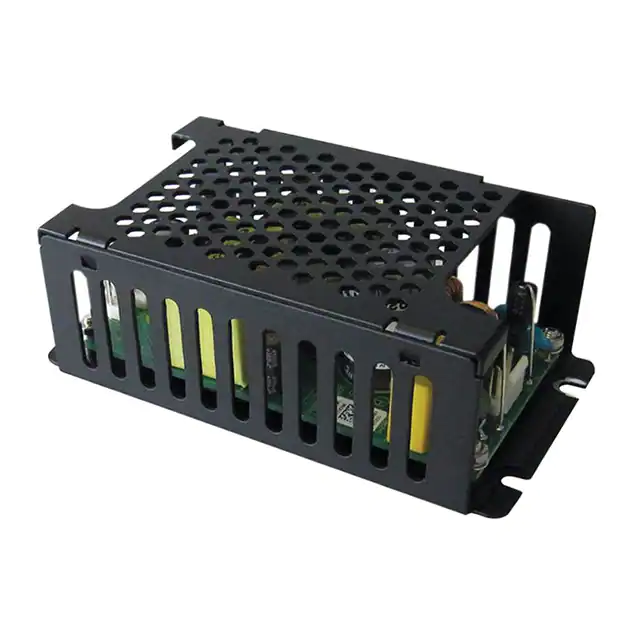

CUS150M-12/AAC/DC CONVERTER 12V 150W |
95 | - |
|
数据表 |
CUS150M (150W) | Box | Active | Enclosed | 1 | 12V | - | - | 150W (150W Forced Air) | - | - | 85 ~ 264 VAC | - | 12.5 A | - | - | ITE (Commercial), Medical | - | - | - | - | -20°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.57" L x 2.52" W x 1.57" H (116.0mm x 64.0mm x 39.7mm) |
