交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NEVO+600S-5204-DK000AC/DC CONVERTER 3X12V 48V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 12V | 12V | 12V | 300W | 48V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | - | 15 A | 3.75 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-2202-DK000AC/DC CONVERTER 3X12V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 12V | 12V | 12V | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | 15 A | ITE (Commercial) | - | 15 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-4150-DK000AC/DC CNVRTR 48V 5V 2X12V 275W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 48V | 5V | 12V | 275W | 12V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | 25 A | ITE (Commercial) | - | 5 A | 5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-5024-DK000AC/DC CONVERTER 3X12V 48V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 4 | 12V | 12V | 12V | 450W | 48V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | - | 15 A | 3.75 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-2450-DK000AC/DC CNVRTR 12V 48V 2X12V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 12V | 48V | 12V | 300W | 12V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | 3.75 A | ITE (Commercial) | - | 5 A | 5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-5025-DK000AC/DC CONVERTER 5X12V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 5 | 12V | 12V | 12V | 450W | 12V | 12V | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial) | 5 A | 15 A | 5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NMP1K2-#KK#CE-00AC/DC CNVRTR 2X48V 5V 12V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 48V | 5V | 900W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#KK#CH-00AC/DC CNVRTR 2X48V 5V 24V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 48V | 5V | 900W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#KK#CK-00AC/DC CNVRTR 2X48V 5V 48V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 48V | 5V | 900W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#KK#EC-00AC/DC CNVRTR 2X48V 12V 5V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 48V | 12V | 900W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#KK#EE-00AC/DC CONVERTER 2X48V 2X12V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 48V | 12V | 960W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#KK#EH-00AC/DC CNVRTR 2X48V 12V 24V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 48V | 12V | 960W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#KK#EK-00AC/DC CNVRTR 2X48V 12V 48V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 48V | 12V | 960W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 5 A | ITE (Commercial), Medical | - | 20 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
HRPG-300-24AC/DC CONVERTER 24V 336W |
0 | - |
|
数据表 |
HRPG-300 (300W) | Box | Active | Enclosed | 1 | 24V | - | - | 336W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 14 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.83" L x 4.13" W x 1.61" H (199.0mm x 105.0mm x 41.0mm) | ||
|
FSP300-57FCBAC/DC CNVRTR 3.3V 5V +/-12V 413W |
82 | - |
|
数据表 |
FSP300-57FCB (300W) | Box | Active | Enclosed | 4 | 3.3V | 5V | 12V | 413W | -12V | - | 90 ~ 264 VAC | - | 12 A | - | 14 A | ITE (Commercial) | - | 25 A | 300 mA | - | 50°C | Standby Output, Universal Input | Chassis Mount | 5.91" L x 3.21" W x 1.59" H (150.0mm x 81.5mm x 40.5mm) | ||
|
|
CUS200LD-12AC/DC CONVERTER 12V 120W |
84 | - |
|
数据表 |
CUS200LD (79-153W) | Box | Active | Enclosed | 1 | 12V | - | - | 120W | - | - | 85 ~ 265 VAC | - | 10 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 2.44" W x 1.22" H (160.0mm x 62.0mm x 31.0mm) | ||
|
|
S8FS-G05024CAC/DC CONVERTER 24V 50W |
43 | - |
|
数据表 |
S8FS-G (50W) | Box | Active | Enclosed | 1 | 24V | - | - | 50W | - | - | 85 ~ 264 VAC | - | 2.2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.42" H (99.0mm x 97.0mm x 36.0mm) | ||
|
SE-600-48AC/DC CONVERTER 48V 600W |
3,371 | - |
|
数据表 |
SE-600 (600W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 600W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | - | 12.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 9.72" L x 5.00" W x 2.50" H (247.0mm x 127.0mm x 63.5mm) | ||
|
SE-600-24AC/DC CONVERTER 24V 600W |
200 | - |
|
数据表 |
SE-600 (600W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 600W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | - | 25 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 9.72" L x 5.00" W x 2.50" H (247.0mm x 127.0mm x 63.5mm) | ||
|

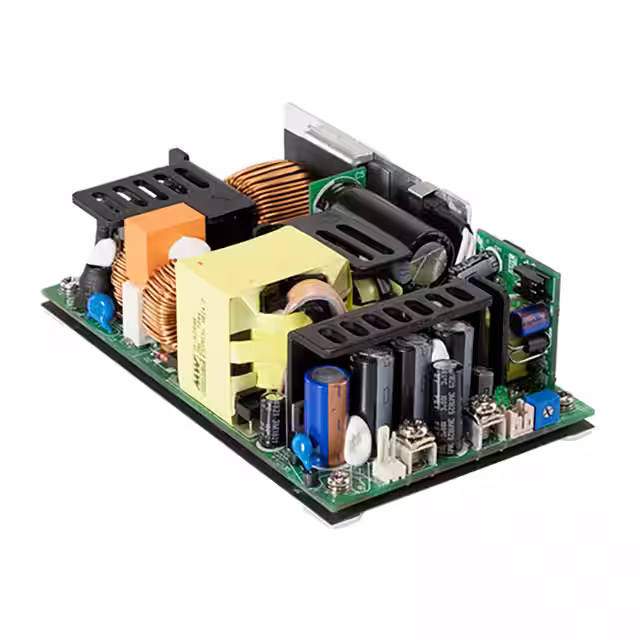

RPS-500-24AC/DC CONVERTER 24V 322W |
20 | - |
|
数据表 |
RPS-500 (500W) | Box | Active | Open Frame | 1 | 24V | - | - | 322W (500W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 13.4 A | - | - | Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm) |
