交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCW50US36AC/DC CONVERTER 36V 52W |
1 | - |
|
数据表 |
LCW50 (50W) | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 52W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1.45 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
AMES35-12SNZ-PAC/DC CONVERTER 12V 36W |
4 | - |
|
数据表 |
AMES35-NZ (35W) | Box | Active | Enclosed | 1 | 12V | - | - | 36W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
VGS-35W-5-AAC/DC CONVERTER 5V 35W |
0 | - |
|
数据表 |
VGS-35W (35W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 35W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|

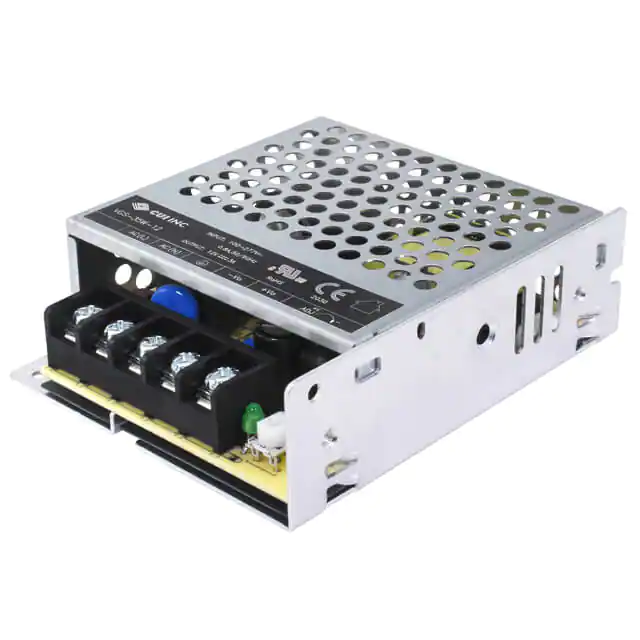

VGS-35W-5-BAC/DC CONVERTER 5V 35W |
0 | - |
|
数据表 |
VGS-35W (35W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 5V | - | - | 35W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|

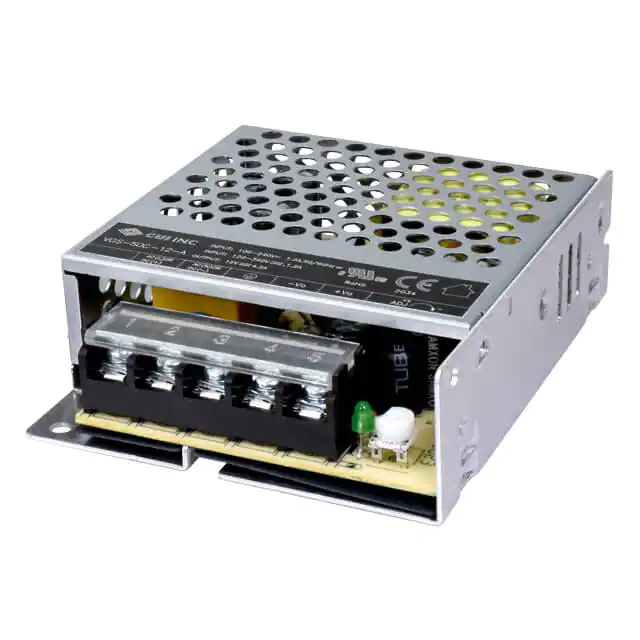

VGS-50C-5-AAC/DC CONVERTER 5V 50W |
0 | - |
|
数据表 |
VGS-50C | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 50W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 10 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
LM150-23B15R2-CQAC/DC CONVERTER 15V 150W |
4 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 15V | - | - | 150W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 10 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
LM150-23B48R2-CQAC/DC CONVERTER 48V 158W |
3 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 48V | - | - | 158W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 3.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
LM150-23B36R2-CQAC/DC CONVERTER 36V 155W |
3 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 36V | - | - | 155W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 4.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
NEVO+600S-4302-DK000AC/DC CONVERTER 48V 24V 12V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 48V | 24V | 12V | 300W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | 7.5 A | ITE (Commercial) | - | 15 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-3440-DK000AC/DC CONVERTER 24V 2X48V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 24V | 48V | 48V | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 3.75 A | ITE (Commercial) | - | 3.75 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-0121-DK000AC/DC CONVERTER 5V 12V 5V 400W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 5V | 12V | 5V | 400W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 15 A | ITE (Commercial) | - | 25 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-0123-DK000AC/DC CONVERTER 5V 12V 24V 425W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 5V | 12V | 24V | 425W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 15 A | ITE (Commercial) | - | 7.5 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-0424-DK000AC/DC CONVERTER 48V 12V 48V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 3 | 48V | 12V | 48V | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | 15 A | ITE (Commercial) | - | 3.75 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-4403-DK000AC/DC CONVERTER 2X48V 24V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 48V | 48V | 24V | 300W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | 3.75 A | ITE (Commercial) | - | 7.5 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-1550-DK000AC/DC CONVERTER 5V 4X12V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 5 | 5V | 12V | 12V | 300W | 12V | 12V | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | 5 A | ITE (Commercial) | 5 A | 5 A | 5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-4045-DK000AC/DC CONVERTER 2X48V 2X12V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 4 | 48V | 48V | 12V | 450W | 12V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | 3.75 A | ITE (Commercial) | - | 5 A | 5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-2220-DK000AC/DC CONVERTER 3X12V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 12V | 12V | 12V | 300W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 15 A | - | 15 A | ITE (Commercial) | - | 15 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-3501-DK000AC/DC CNVRTR 24V 2X12V 5V 275W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 24V | 12V | 12V | 275W | 5V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 5 A | ITE (Commercial) | - | 5 A | 25 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600SL-3053-DK000AC/DC CNVRTR 24V 2X12V 24V 450W |
0 | - |
|
数据表 |
NEVO+600SL | Box | Active | Enclosed | 4 | 24V | 12V | 12V | 450W | 24V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 5 A | ITE (Commercial) | - | 5 A | 7.5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NEVO+600S-3051-DK000AC/DC CNVRTR 24V 2X12V 5V 275W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 24V | 12V | 12V | 275W | 5V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7.5 A | - | 5 A | ITE (Commercial) | - | 5 A | 25 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) |
