交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

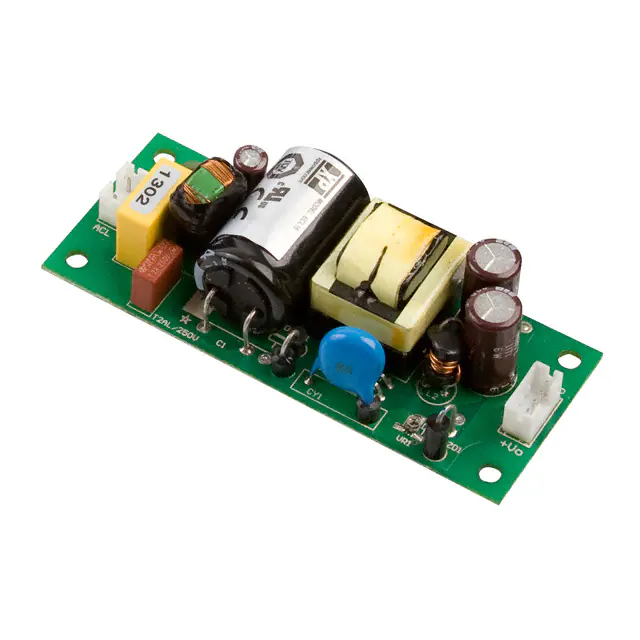

ECL15US48-TAC/DC CONVERTER 48V 15W XP Power |
8 | - |
|
数据表 |
ECL (15W) | Box | Active | Open Frame | 1 | 48V | - | - | 15W | - | - | 85 ~ 264 VAC | - | 320 mA | - | - | ITE (Commercial) | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.10" L x 1.25" W x 0.78" H (78.7mm x 31.7mm x 20.0mm) |
|
EML30US36-TAC/DC CONVERTER 36V 30W XP Power |
10 | - |
|
数据表 |
EML30 (30W) | Box | Active | Open Frame | 1 | 36V | - | - | 30W | - | - | 85 ~ 264 VAC | - | 830 mA | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 1.00" H (87.9mm x 34.6mm x 25.4mm) |
|

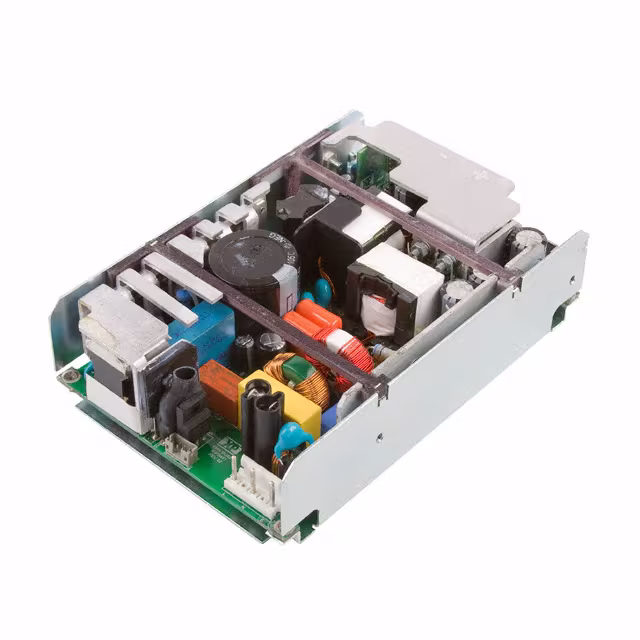

EMH350PD22-UAC/DC CONVERTER 12V 36V 350W XP Power |
0 | - |
|
数据表 |
EMH (350W) | Box | Active | Open Frame | 2 | 12V | 36V | - | 350W | - | - | 80 ~ 275 VAC | - | 16.5 A | - | 5.5 A | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.57" H (152.4mm x 101.6mm x 39.8mm) |
|
|
EMH350PD23-UAC/DC CONVERTER 12V 48V 350W XP Power |
0 | - |
|
数据表 |
EMH (350W) | Box | Active | Open Frame | 2 | 12V | 48V | - | 350W | - | - | 80 ~ 275 VAC | - | 16.5 A | - | 4.2 A | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.57" H (152.4mm x 101.6mm x 39.8mm) |
|
|
EMH350PD24-UAC/DC CONVERTER 24V 48V 350W XP Power |
0 | - |
|
数据表 |
EMH (350W) | Box | Active | Open Frame | 2 | 24V | 48V | - | 350W | - | - | 80 ~ 275 VAC | - | 8.3 A | - | 4.2 A | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.57" H (152.4mm x 101.6mm x 39.8mm) |
|

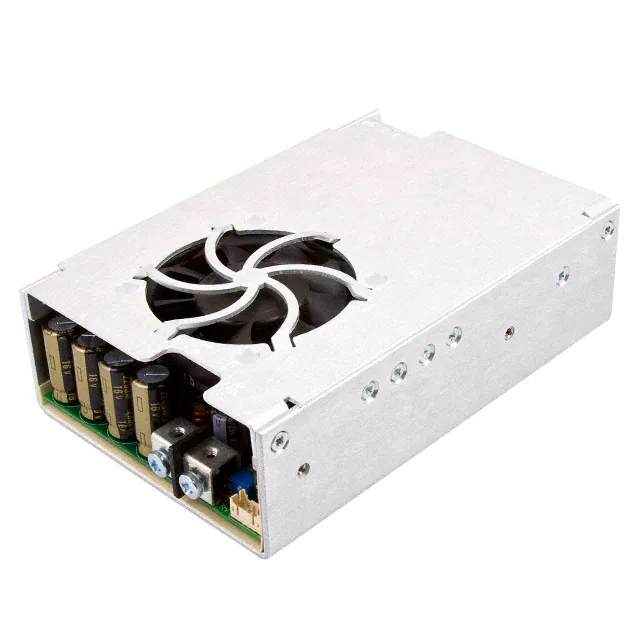

FCM400PS36AC/DC CONVERTER 36V 400W XP Power |
0 | - |
|
数据表 |
FCM (400W) | Box | Active | Enclosed | 1 | 36V | - | - | 400W | - | - | 80 ~ 275 VAC | - | 11.1 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.93" H (152.4mm x 101.6mm x 49.0mm) |
|
CCM250PS15AC/DC CONVERTER 15V 251W XP Power |
0 | - |
|
数据表 |
CCM (250W) | Box | Active | Open Frame | 1 | 15V | - | - | 251W | - | - | 80 ~ 275 VAC | - | 16.7 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.54" H (152.4mm x 101.6mm x 39.1mm) |
|
MHP650PS12-EFAC/DC CONVERTER 12V 601W XP Power |
0 | - |
|
数据表 |
MHP (650W) | Box | Active | Enclosed | 1 | 12V | - | - | 601W | - | - | 85 ~ 264 VAC | - | 50 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.18" L x 4.00" W x 2.50" H (233.2mm x 101.6mm x 63.5mm) |
|
CCH400PS48AC/DC CONVERTER 48V 411W XP Power |
0 | - |
|
数据表 |
CCH400 (400W) | Box | Active | Enclosed | 1 | 48V | - | - | 411W | - | - | 90 ~ 264 VAC | - | 8.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 85°C | Adjustable Output, Load Sharing, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 8.43" L x 4.02" W x 1.69" H (214.1mm x 102.1mm x 42.9mm) |
|
|
MHP650PS15-EFAC/DC CONVERTER 15V 601W XP Power |
0 | - |
|
数据表 |
MHP (650W) | Box | Active | Enclosed | 1 | 15V | - | - | 601W | - | - | 85 ~ 264 VAC | - | 40 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.18" L x 4.00" W x 2.50" H (233.2mm x 101.6mm x 63.5mm) |
