交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

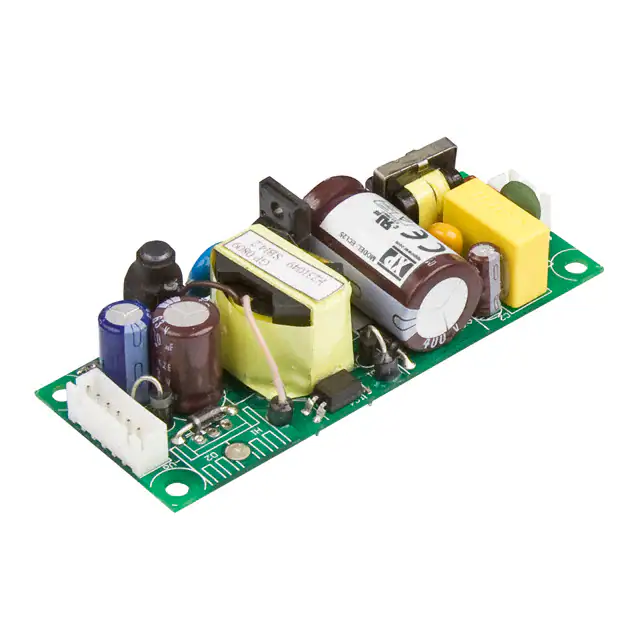

ECL25US09-TAC/DC CONVERTER 9V 25W XP Power |
6 | - |
|
数据表 |
ECL (25W) | Box | Active | Open Frame | 1 | 9V | - | - | 25W | - | - | 85 ~ 264 VAC | - | 2.8 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|

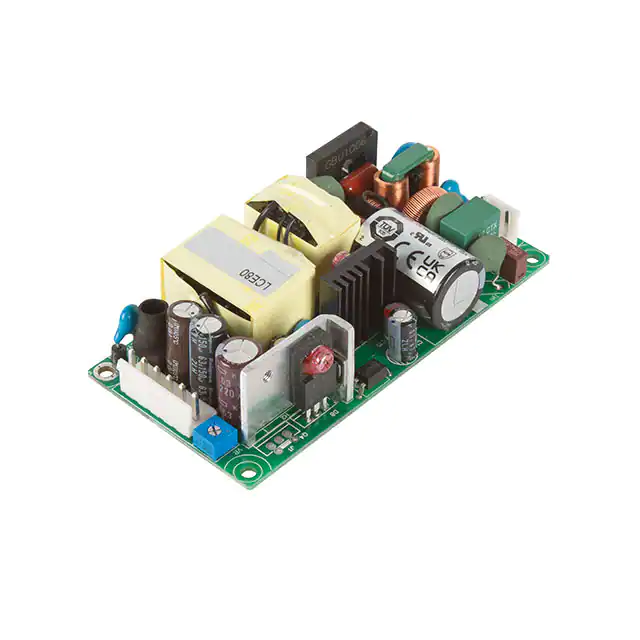

LCE80PS48AC/DC CONVERTER 48V 80W XP Power |
15 | - |
|
数据表 |
LCE80 (80W) | Box | Active | Open Frame | 1 | 48V | - | - | 80W | - | - | 90 ~ 305 VAC | - | 1.67 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 27.9mm) |
|
EMH350PS24-02VFAC-DC CHASSIS-MOUNT 350W,ANALOG, XP Power |
0 | - |
|
数据表 |
EMH (350W) | Box | Active | Enclosed | 1 | 24V | - | - | 355W | - | - | 80 ~ 275 VAC | - | 14.6 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.56" W x 2.78" H (127.0mm x 90.4mm x 70.6mm) |
|

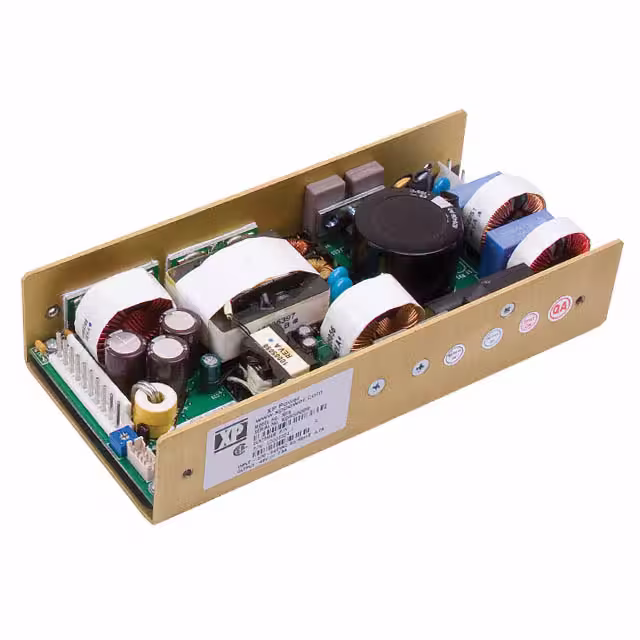

MFA350PS12AC/DC CONVERTER 12V 350W XP Power |
0 | - |
|
数据表 |
MFA (350W) | Box | Active | Open Frame | 1 | 12V | - | - | 350W (361W Forced Air) | - | - | 85 ~ 264 VAC | - | 29 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.20" W x 1.50" H (172.7mm x 81.3mm x 38.1mm) |
|
|
MFA350PS48AC/DC CONVERTER 48V 350W XP Power |
0 | - |
|
数据表 |
MFA (350W) | Box | Active | Open Frame | 1 | 48V | - | - | 350W (364W Forced Air) | - | - | 85 ~ 264 VAC | - | 7.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input | Chassis Mount | 6.80" L x 3.20" W x 1.50" H (172.7mm x 81.3mm x 38.1mm) |
|
EMH350PS18-01AC/DC CONVERTER 18V 350W XP Power |
0 | - |
|
数据表 |
EMH (350W) | Box | Active | Open Frame | 1 | 18V | - | - | 350W | - | - | 80 ~ 275 VAC | - | 19.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
|
|
EMH350PS48-01AC/DC CONVERTER 48V 350W XP Power |
0 | - |
|
数据表 |
EMH (350W) | Box | Active | Open Frame | 1 | 48V | - | - | 350W | - | - | 80 ~ 275 VAC | - | 7.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
|
CCB250PS15AC/DC CONVERTER 15V 251W XP Power |
0 | - |
|
数据表 |
CCB250 (250W) | Box | Active | Open Frame | 1 | 15V | - | - | 251W | - | - | 80 ~ 275 VAC | - | 16.7 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) |
|
|
P3S9R1FE3STD AC-DC PSU, LP-MD SERIES,250W XP Power |
0 | - |
|
数据表 |
LP (450W) | Box | Active | Enclosed | 2 | 12V | 48V | - | 250W | - | - | 90 ~ 264 VAC | - | 5 A | - | 6 A | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 5.00" W x 1.50" H (203.2mm x 127.0mm x 38.1mm) |
|
MFA350PS12-SEFAC/DC CONVERTER 12V 350W XP Power |
0 | - |
|
数据表 |
MFA (350W) | Box | Active | Enclosed | 1 | 12V | - | - | 350W (361W Forced Air) | - | - | 85 ~ 264 VAC | - | 29 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input | Chassis Mount | 8.20" L x 3.33" W x 1.75" H (208.3mm x 84.5mm x 44.5mm) |
