交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

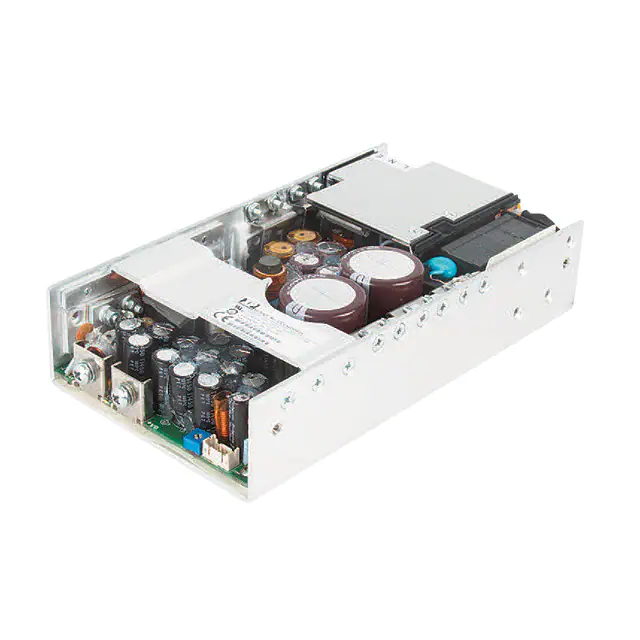

CCL400PS48AC/DC CONVERTER 48V 398W XP Power |
8 | - |
|
数据表 |
CCL400 (400W) | Box | Active | Open Frame | 1 | 48V | - | - | 398W | - | - | 85 ~ 264 VAC | - | 8.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 3.95" W x 1.57" H (177.8mm x 100.3mm x 39.9mm) |
|
|
CCL400PS24AC/DC CONVERTER 24V 398W XP Power |
2 | - |
|
数据表 |
CCL400 (400W) | Box | Active | Open Frame | 1 | 24V | - | - | 398W | - | - | 85 ~ 264 VAC | - | 16.6 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 3.95" W x 1.57" H (177.8mm x 100.3mm x 39.9mm) |
|

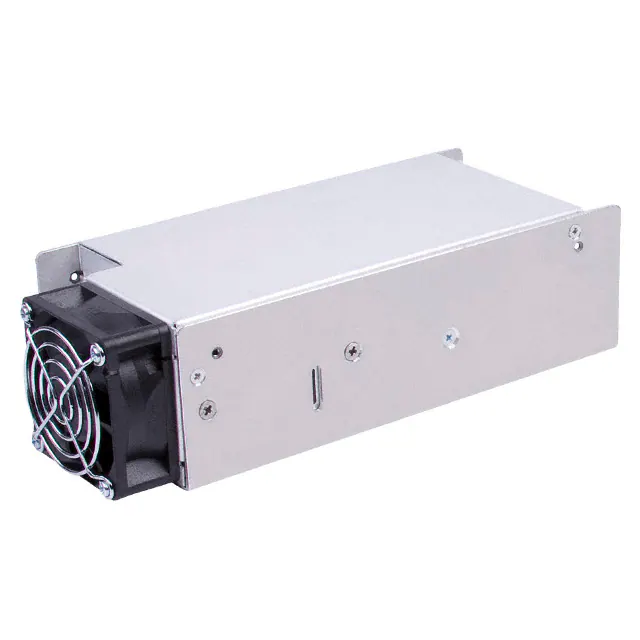

SHP650PS15-EFAC/DC CONVERTER 15V 650W XP Power |
0 | - |
|
数据表 |
SHP (650W) | Box | Active | Enclosed | 1 | 15V | - | - | 650W | - | - | 85 ~ 264 VAC | - | 40 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.18" L x 4.00" W x 2.50" H (233.2mm x 101.6mm x 63.5mm) |
|
SHP650PS24-TFAC/DC CONVERTER 24V 350-1200W XP Power |
0 | - |
|
数据表 |
SHP (650W) | Bulk | Active | Enclosed | 1 | 24V | - | - | - | - | - | 80 ~ 264 VAC | - | 27 A | - | - | ITE (Commercial) | - | - | - | 3000 V | -20°C ~ 70°C (With Derating) | - | Chassis Mount | - |
|
HDS800PS12AC/DC CONVERTER 12V 800W XP Power |
14 | - |
|
数据表 |
HDS800 (800W) | Box | Active | Enclosed | 1 | 12V | - | - | 800W | - | - | 90 ~ 264 VAC | - | 66.7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.80" L x 5.00" W x 1.61" H (249.0mm x 127.0mm x 40.9mm) |
|
SHP1000PS15AC/DC CONVERTER 15V 1000W XP Power |
8 | - |
|
数据表 |
SHP (1000W) | Box | Active | Enclosed | 1 | 15V | - | - | 1000W | - | - | 85 ~ 264 VAC | - | 67 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.55" L x 5.90" W x 2.40" H (242.6mm x 149.8mm x 61.0mm) |
|
|
SHP1000PS12AC/DC CONVERTER 12V 1000W XP Power |
3 | - |
|
数据表 |
SHP (1000W) | Box | Active | Enclosed | 1 | 12V | - | - | 1000W | - | - | 85 ~ 264 VAC | - | 83 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.55" L x 5.90" W x 2.40" H (242.6mm x 149.8mm x 61.0mm) |
|
PBR500PS12CAC/DC CONVERTER 12V 350W XP Power |
1 | - |
|
数据表 |
PBR500 (500W) | Box | Active | Enclosed | 1 | 12V | - | - | 350W (450W Forced Air) | - | - | 80 ~ 264 VAC | - | 29.17 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -10°C ~ 70°C (With Derating) | Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.70" H (177.8mm x 101.6mm x 43.2mm) |
|
|
SDC320AD1224-EDUAL O/P AC-DC PSU COVER FITTED, XP Power |
0 | - |
|
数据表 |
SDC (320W) | Box | Active | Enclosed | 2 | 12V | 24V | - | 150W (300W Forced Air) | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC | - | 12.5 A | - | 6.25 A | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) |
|
HDL3000PS15AC/DC CONVERTER 15V 2400W XP Power |
8 | - |
|
数据表 |
HDL3000 (3000W) | Box | Active | Enclosed | 1 | 15V | - | - | 2400W | - | - | 90 ~ 264 VAC | - | 160 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C | Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 12.48" L x 6.69" W x 2.50" H (317.0mm x 169.9mm x 63.5mm) |
