交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHD250PS12-ACAC DC CHASSIS-MOUNT PSU 250W COV XP Power |
0 | - |
|
数据表 |
CHD250 (250W) | Box | Active | Open Frame | 1 | 12V | - | - | 250W | - | - | 80 ~ 264 VAC | - | 20.8 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.50" L x 3.48" W x 1.75" H (139.7mm x 88.4mm x 44.5mm) |
|

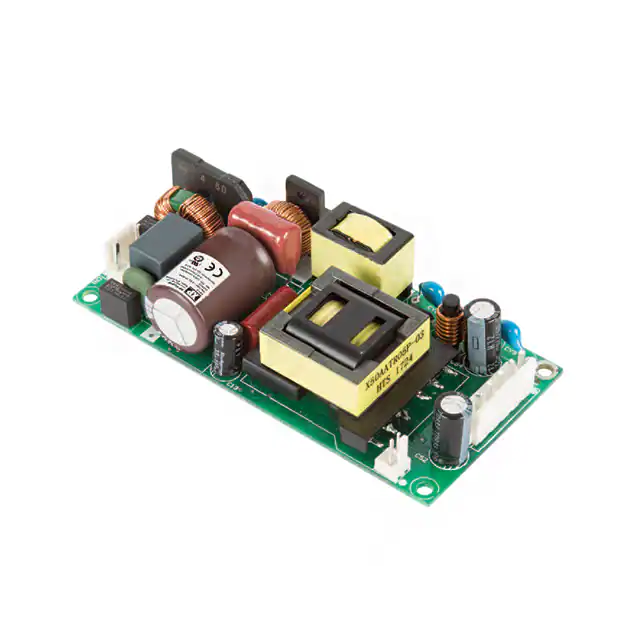

EPL150PS48AC/DC CONVERTER 48V 100W XP Power |
13 | - |
|
数据表 |
EPL150 (150W) | Box | Active | Open Frame | 1 | 48V | - | - | 100W (149W Forced Air) | - | - | 80 ~ 264 VAC | - | 2.08 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.99" H (101.6mm x 50.8mm x 25.2mm) |
|
|
GSP500PS12P-EFAC DC CHASSIS MOUNT PSU 500W END XP Power |
0 | - |
|
数据表 |
GSP500 (500W) | Box | Active | Enclosed | 1 | 12V | - | - | 180W (500W Forced Air) | - | - | 80 ~ 264 VAC | - | 15 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.71" L x 4.00" W x 1.65" H (170.4mm x 101.6mm x 41.9mm) |
|
|
SDR250AS24-F24V AC-DC PSU COVER FITTED, 250W XP Power |
0 | - |
|
数据表 |
SDR (250W) | Box | Active | Enclosed | 1 | 24V | - | - | 250W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC | - | 10.42 A | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.20" W x 2.25" H (127.0mm x 81.3mm x 57.2mm) |
|
PBR500PS48CAC/DC CONVERTER 48V 400W XP Power |
0 | - |
|
数据表 |
PBR500 (500W) | Box | Active | Enclosed | 1 | 48V | - | - | 400W (500W Forced Air) | - | - | 80 ~ 264 VAC | - | 8.34 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -10°C ~ 70°C (With Derating) | Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.70" H (177.8mm x 101.6mm x 43.2mm) |
|
ECE60US36-SAC/DC CONVERTER 36V 60W XP Power |
21 | - |
|
数据表 |
ECE60 (60W) | Box | Active | Enclosed | 1 | 36V | - | - | 60W | - | - | 85 ~ 264 VAC | - | 1.67 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.09" L x 1.57" W x 1.12" H (104.0mm x 40.0mm x 28.5mm) |
|
ECP180PS28AC/DC CONVERTER 28V 120W XP Power |
19 | - |
|
数据表 |
ECP180 (180W) | Box | Active | Open Frame | 1 | 28V | - | - | 120W (180W Forced Air) | - | - | 85 ~ 264 VAC | - | 6.43 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.84" H (101.6mm x 50.8mm x 21.6mm) |
|
ECM100US09AC/DC CONVERTER 9V 100W XP Power |
7 | - |
|
数据表 |
ECM (100W) | Box | Active | Open Frame | 1 | 9V | - | - | 100W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 8.8 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.20" H (114.3mm x 63.5mm x 30.5mm) |
|
PBR500PS12BAC/DC CONVERTER 12V 350W XP Power |
1 | - |
|
数据表 |
PBR500 (500W) | Box | Active | Open Frame | 1 | 12V | - | - | 350W (450W Forced Air) | - | - | 80 ~ 264 VAC | - | 29.17 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -10°C ~ 70°C (With Derating) | Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.68" H (177.8mm x 101.6mm x 42.7mm) |
|

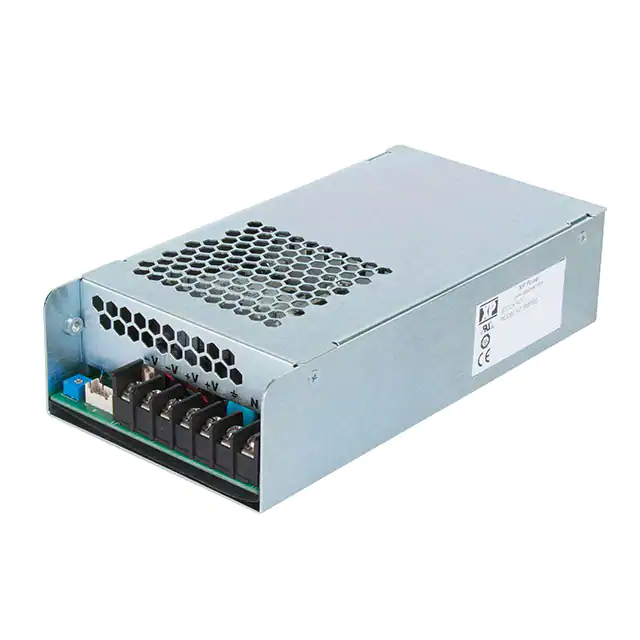

SMP350PS36AC/DC CONVERTER 36V 349W XP Power |
7 | - |
|
数据表 |
SMP350 (350W) | Box | Active | Enclosed | 1 | 36V | - | - | 349W | - | - | 85 ~ 264 VAC | - | 9.7 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Remote On/Off | Chassis Mount | 7.00" L x 3.60" W x 1.70" H (177.8mm x 91.4mm x 43.2mm) |
