交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MHP650PS24-EFAC/DC CONVERTER 24V 648W XP Power |
16 | - |
|
数据表 |
MHP (650W) | Box | Active | Enclosed | 1 | 24V | - | - | 648W | - | - | 85 ~ 264 VAC | - | 27 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.18" L x 4.00" W x 2.50" H (233.2mm x 101.6mm x 63.5mm) |
|
SHP1000PS48AC/DC CONVERTER 48V 1000W XP Power |
2 | - |
|
数据表 |
SHP (1000W) | Box | Active | Enclosed | 1 | 48V | - | - | 1000W | - | - | 85 ~ 264 VAC | - | 25 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.55" L x 5.90" W x 2.40" H (242.6mm x 149.8mm x 61.0mm) |
|
HPF3K0PS24AC/DC 3KW PROGRAMMABLE POWER SUP XP Power |
11 | - |
|
数据表 |
HPF3K0 (3kW) | Box | Active | Enclosed | 1 | 24V | - | - | 3000W | - | - | 90 ~ 264 VAC | - | 125 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, PMBus™, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 11.00" L x 7.00" W x 2.50" H (283.5mm x 175.5mm x 50.0mm) |
|
HPU1K5PS24AC/DC CONVERTER 24V 1500W XP Power |
5 | - |
|
数据表 |
HPU1K5 (1500W) | Box | Active | Enclosed | 1 | 24V | - | - | 1500W | - | - | 85 ~ 264 VAC | - | 50 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 12.75" L x 4.00" W x 1.70" H (323.9mm x 101.6mm x 43.2mm) |
|
|
CHD250PS12-AAC DC CHASSIS-MOUNT PSU 250W XP Power |
0 | - |
|
数据表 |
CHD250 (250W) | Box | Active | Open Frame | 1 | 12V | - | - | 250W | - | - | 80 ~ 264 VAC | - | 20.8 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
|
HDS3000PS24AC/DC CONVERTER 24V 3000W XP Power |
8 | - |
|
数据表 |
HDS3000 (3000W) | Box | Active | Enclosed | 1 | 24V | - | - | 3000W | - | - | 90 ~ 264 VAC | - | 125 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 14.41" L x 5.00" W x 5.00" H (366.0mm x 127.0mm x 127.0mm) |
|
HPT5K0TS060AC/DC CONVERTER 60V 5000W XP Power |
2 | - |
|
数据表 |
HPT5K0 (5000W) | Bulk | Active | Enclosed | 1 | 60V | - | - | 5000W | - | - | 180 ~ 528 VAC (3 Phase) | - | 83.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PMBus™, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 13.00" L x 5.00" W x 5.00" H (330.2mm x 127.0mm x 127.0mm) |
|

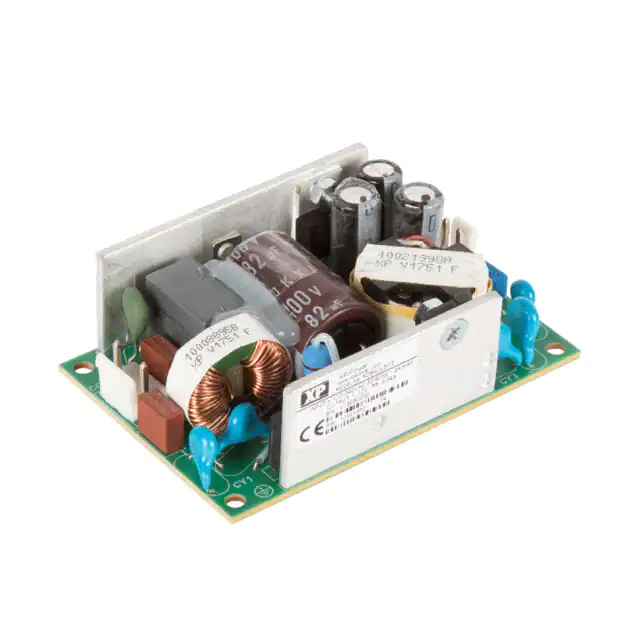

FCS40US15AC/DC CONVERTER 15V 40W XP Power |
95 | - |
|
数据表 |
FCS40 (40W) | Box | Active | Open Frame | 1 | 15V | - | - | 40W | - | - | 80 ~ 264 VAC | - | 2.67 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
|
FCS40US12AC/DC CONVERTER 12V 40W XP Power |
12 | - |
|
数据表 |
FCS40 (40W) | Box | Active | Open Frame | 1 | 12V | - | - | 40W | - | - | 80 ~ 264 VAC | - | 3.34 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|

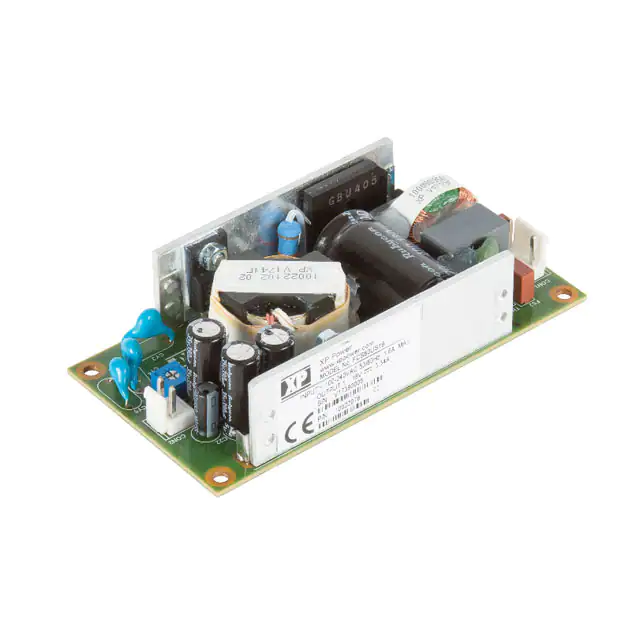

FCS60US24AC/DC CONVERTER 24V 60W XP Power |
17 | - |
|
数据表 |
FCS60 (60W) | Box | Active | Open Frame | 1 | 24V | - | - | 60W | - | - | 80 ~ 264 VAC | - | 2.5 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 27.9mm) |
