交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GCU500PS48-EFAC/DC CONVERTER 48V 250W XP Power |
0 | - |
|
数据表 |
GCU500 (500W) | Box | Active | Open Frame | 1 | 48V | - | - | 250W (499W Forced Air) | - | - | 80 ~ 264 VAC | - | 10.4 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.56" L x 3.30" W x 1.64" H (192.0mm x 83.8mm x 41.8mm) |
|
VCB60US24AC/DC CONVERTER 24V 60W XP Power |
71 | - |
|
数据表 |
VCB60 (60W) | Box | Active | Open Frame | 1 | 24V | - | - | 60W | - | - | 90 ~ 305 VAC | - | 2.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | - | Chassis Mount | 4.00" L x 2.00" W x 1.01" H (101.6mm x 50.8mm x 25.7mm) |
|
|
VCB60US05AC/DC CONVERTER 5V 40W XP Power |
16 | - |
|
数据表 |
VCB60 (60W) | Box | Active | Open Frame | 1 | 5V | - | - | 40W | - | - | 90 ~ 305 VAC | - | 8 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | - | Chassis Mount | 4.00" L x 2.00" W x 1.01" H (101.6mm x 50.8mm x 25.7mm) |
|
ECL05US05-TAC/DC CONVERTER 5V 5W XP Power |
18 | - |
|
数据表 |
ECL (5W) | Box | Active | Open Frame | 1 | 5V | - | - | 5W | - | - | 85 ~ 264 VAC | - | 1 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|

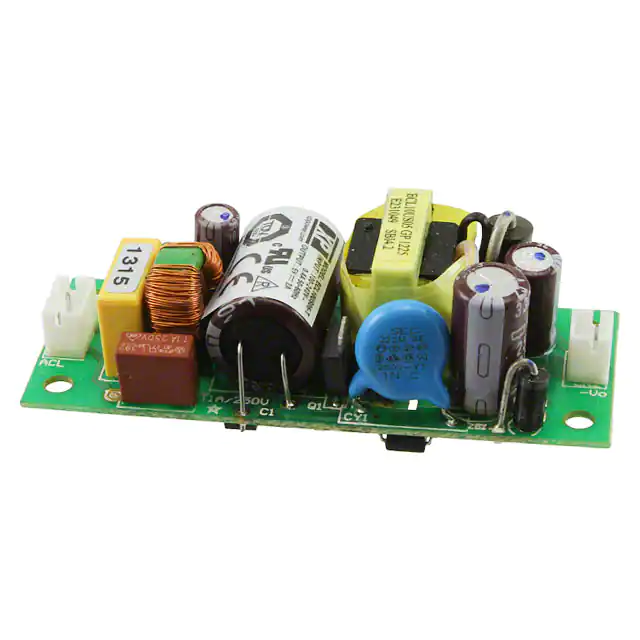

ECL10US05-TAC/DC CONVERTER 5V 10W XP Power |
52 | - |
|
数据表 |
ECL (10W) | Box | Active | Open Frame | 1 | 5V | - | - | 10W | - | - | 85 ~ 264 VAC | - | 2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|
ECL15US12-TAC/DC CONVERTER 12V 15W XP Power |
48 | - |
|
数据表 |
ECL (15W) | Box | Active | Open Frame | 1 | 12V | - | - | 15W | - | - | 85 ~ 264 VAC | - | 1.25 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.10" L x 1.25" W x 0.78" H (78.7mm x 31.7mm x 20.0mm) |
|
SDS180PS12BAC/DC CONVERTER 12V 170W XP Power |
0 | - |
|
数据表 |
SDS (180W) | Bulk | Obsolete | Open Frame | 1 | 12V | - | - | 170W | - | - | 90 ~ 264 VAC | - | 14.16 A | - | - | ITE (Commercial) | - | - | - | 3000 V | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | - |
|
|
SDS180PS24BAC/DC CONVERTER 24V 180W XP Power |
0 | - |
|
数据表 |
SDS (180W) | Bulk | Obsolete | Open Frame | 1 | 24V | - | - | 180W | - | - | 90 ~ 264 VAC | - | 7.5 A | - | - | ITE (Commercial) | - | - | - | 3000 V | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | - |
|
|
SDS180PS48BAC/DC CONVERTER 48V 180W XP Power |
0 | - |
|
数据表 |
SDS (180W) | Bulk | Obsolete | Open Frame | 1 | 48V | - | - | 180W | - | - | 90 ~ 264 VAC | - | 3.75 A | - | - | ITE (Commercial) | - | - | - | 3000 V | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | - |
|
ECS65US28AC/DC CONVERTER 28V 65W XP Power |
39 | - |
|
数据表 |
ECS (65W) | Box | Active | Open Frame | 1 | 28V | - | - | 65W | - | - | 80 ~ 264 VAC | - | 2.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.05" H (101.6mm x 50.8mm x 26.7mm) |
